variable absorptive attenuator in a lead-free low-cost
SOIC 8-lead surface mount plastic package. The
MAAV-008022 is ideally suited for use where linear
attenuation fine tuning and very low power
consumption are required.
Typical applications include radio, cellular, GPS
equipment and automatic gain/level control circuits.
The MAAV-008022 is fabricated with a monolithic
GaAs MMIC using a mature 1-micron process. The
process features full chip passivation for increased
performance and reliability.
2.
3.
4.
5.
1
2
3
4
V
CC
= +3 VDC @ 50 µA maximum.
V
C
= 0 VDC to +3 VDC @ 50 µA maximum.
External DC blocking capacitors are required on all RF ports.
39 pF used for data measurements.
Pin Configuration
Pin No.
1
2
3
4
Ordering Information
Part Number
MAAV-008022-000000
MAAV-008022-TR3000
1
Function
Ground
Ground
RF Port
V
CC
Pin No.
5
6
7
8
Function
V
C
Ground
RF Port
Ground
Package
Bulk Packaging
3000 piece reel
1. Reference Application Note M513 for reel size information.
Absolute Maximum Ratings
6
Parameter
Input Power
Supply Voltage V
CC
Control Voltage V
C
Operating Temperature
Storage Temperature
Absolute Maximum
+21 dBm
-1 V < V
CC
< +8 V
-1 V < V
C
< V
CC
+ 0.5 V
-40°C to +85°C
-65°C to +150°C
6. Exceeding any one or combination of these limits may cause
permanent damage to this device.
* Restrictions on Hazardous Substances, European Directive 2002/95/EC.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAAV-008022
3 Volt Voltage Variable Absorptive Attenuator
40 dB, 0.5 - 2.0 GHz
Electrical Specifications
7
: T
A
= 25°C, Z
0
= 50
Parameter
Insertion Loss
Rev. V1
Test Conditions
0.5 - 1.0 GHz
1.0 - 2.0 GHz
Frequency = 0.5 - 2.0 GHz
Vc = 0.0 V (max. atten.)
Vc = 0.5 V
Vc = 1.5 V
Vc = 2.7 V
Vc delta 0.5 V - 1.5 V
Vc delta 1.5 V - 2.7 V
—
10% to 90% RF, 90% to 10% RF
50% Control to 90% RF, 50% Control to 10% RF
In-band
Units
dB
dB
dB
dB
dB
dB
dB/V
dB/V
Ratio
µS
µS
mV
Min
—
—
34
26
12.5
—
10
0
—
—
—
—
Typ
2.7
3.0
35
30
15
.5
15
14
2:1
10
12
10
Max
3.0
3.5
—
—
17.5
0.7
23
17
—
—
—
—
Attenuation
(Relative to Insertion Loss)
Slope
(at any point on the curve)
VSWR
Trise, Tfall
Ton, Toff
Transients
7. The RF ports must be blocked outside of the package from ground or any other voltage.

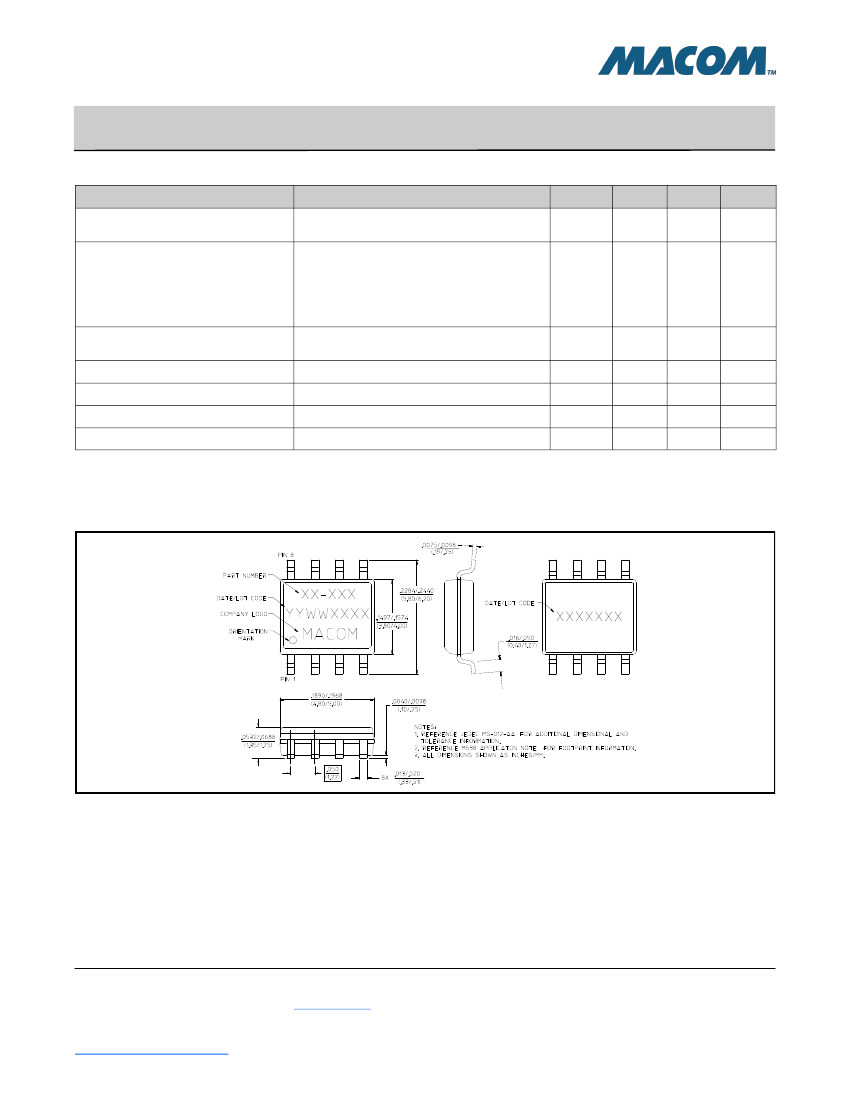

Lead-Free SOIC-8
†
†
Reference Application Note M538 for lead-free solder reflow recommendations.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAAV-008022
3 Volt Voltage Variable Absorptive Attenuator
40 dB, 0.5 - 2.0 GHz

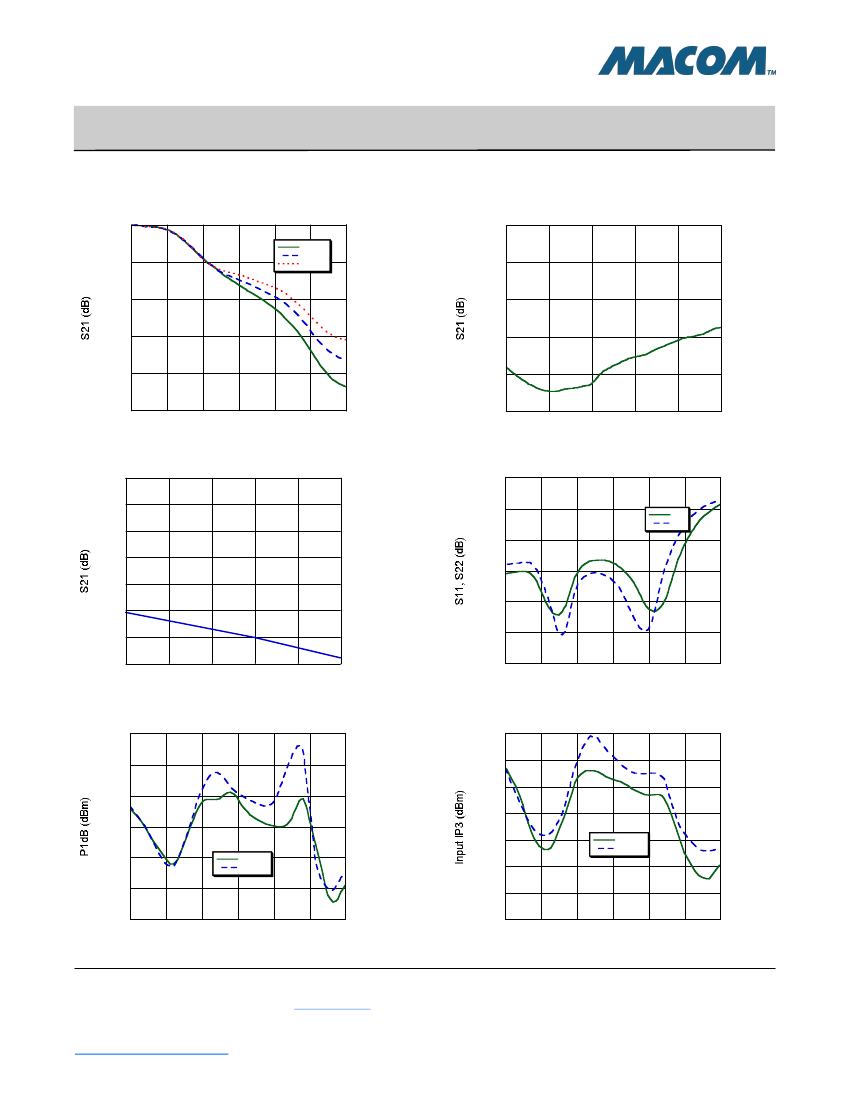

Typical Performance Curves @ 25°C
Attenuation vs. Control Voltage
0
0.9 GHz
1.8 GHz
2.4 GHz
Rev. V1
Attenuation vs. Frequency @ 0V
0
-10
-10
-20
-20
-30
-30
-40
-40
-50
3.0
2.5
2.0
1.5
1.0
0.5
0.0
-50
0.5
1.0
1.5
2.0
2.5
3.0
Control Voltage (V)
Frequency (GHz)
Insertion Loss vs. Frequency
0.0
-0.5
-1.0
-1.5
Return Loss vs. Control Voltage, F = 900 MHz
0
-5
S11
S22
-10
-15
-2.0
-2.5
-3.0
-3.5
0.5
1.0
1.5
2.0
2.5
3.0
-20
-25
-30
3.0
2.5
2.0
1.5
1.0
0.5
0.0
Frequency (GHz)
Control Voltage (V)
1 dB Compression vs. Control Voltage
25
IP3 vs. Control Voltage
35
30
25
20
20
15
10
15
5
400 MHz
900 MHz
400 MHz
900 MHz
10
5
0
3.0
0
-5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
2.5
2.0
1.5
1.0
0.5
0.0
Control Voltage (V)
Control Voltage (V)
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAAV-008022
3 Volt Voltage Variable Absorptive Attenuator
40 dB, 0.5 - 2.0 GHz
Typical Performance Curves @ 25°C
Attenuation vs. Temperature
Normalized @ 25°C, F = 900 MHz
3
Rev. V1
Handling Procedures
+85°C
-40°C
2
Please observe the following precautions to avoid
damage:
1
0
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
2.5
2.0
1.5
1.0
0.50
0.0
-1
-2
-3
3.0
Control Voltage (V)
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAAV-008022
3 Volt Voltage Variable Absorptive Attenuator
40 dB, 0.5 - 2.0 GHz
Rev. V1
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
