HMC985LP4KE

Description
IC attenuator vva mmic 24smd
CategoryPassive components
File Size641KB,10 Pages
ManufacturerHittite Microwave(ADI)
Websitehttp://www.hittite.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

HMC985LP4KE Online Shopping

Suppliers Part Number Price MOQ In stock
HMC985LP4KE - - View Buy Now

HMC985LP4KE Overview

IC attenuator vva mmic 24smd

HMC985LP4KE Parametric

Parameter NameAttribute value
Datasheets
HMC985LP4KE
Product Photos
24-VQFN Exposed Pad
Standard Package1
CategoryRF/IF and RFID
FamilyAttenuators
Attenuation Value-
Tolerance-
Frequency Range10GHz ~ 40GHz
Power (Watts)-
Impedance50 Ohm
Package / Case24-VFQFN Exposed Pad
Dynamic CatalogHMC985
Other Names1127-1827
HMC985LP4KE
v01.0813
GaAs MMIC VOLTAGE - VARIABLE
ATTENUATOR, 10 - 40 GHz
Typical Applications
the HMC985lP4Ke is ideal for:
Features
Wide Bandwidth: 10 - 40 gHz
excellent linearity: +32 dB Input IP3
Wide attenuation range: 35 dB
no external Matching
24 lead 4x4 mm sMt Package: 16 mm²
attenuators - analog - sMt
Point-to-Point radio
Vsat radio
test Instrumentation
Microwave sensors
Military, eCM & radar
General Description
the HMC985lP4Ke is an absorptive Voltage Variable
attenuator (VVa) which operates from 10 - 40 gHz and
is ideal in designs where an analog DC control signal
must be used to control rF signal levels over a 35 dB
dynamic range. It features two shunt-type attenuators
which are controlled by two analog voltages, Vctl1 and
Vctl2. optimum linearity performance of the attenuator
is achieved by first varying Vctl1 of the first attenuation
stage from -3V to 0V with Vctl2 fixed at -3V. the control
voltage of the second attenuation stage, Vctl2, should
then be varied from -3V to 0V with Vctl1 fixed at 0V.
if the Vctl1 and Vctl2 pins are connected together it is
possible to achieve the full analog attenuation range
with only a small degradation in input IP3 performance.
applications include agC circuits and temperature
compensation of multiple gain stages in microwave
point-to-point and Vsat radios.

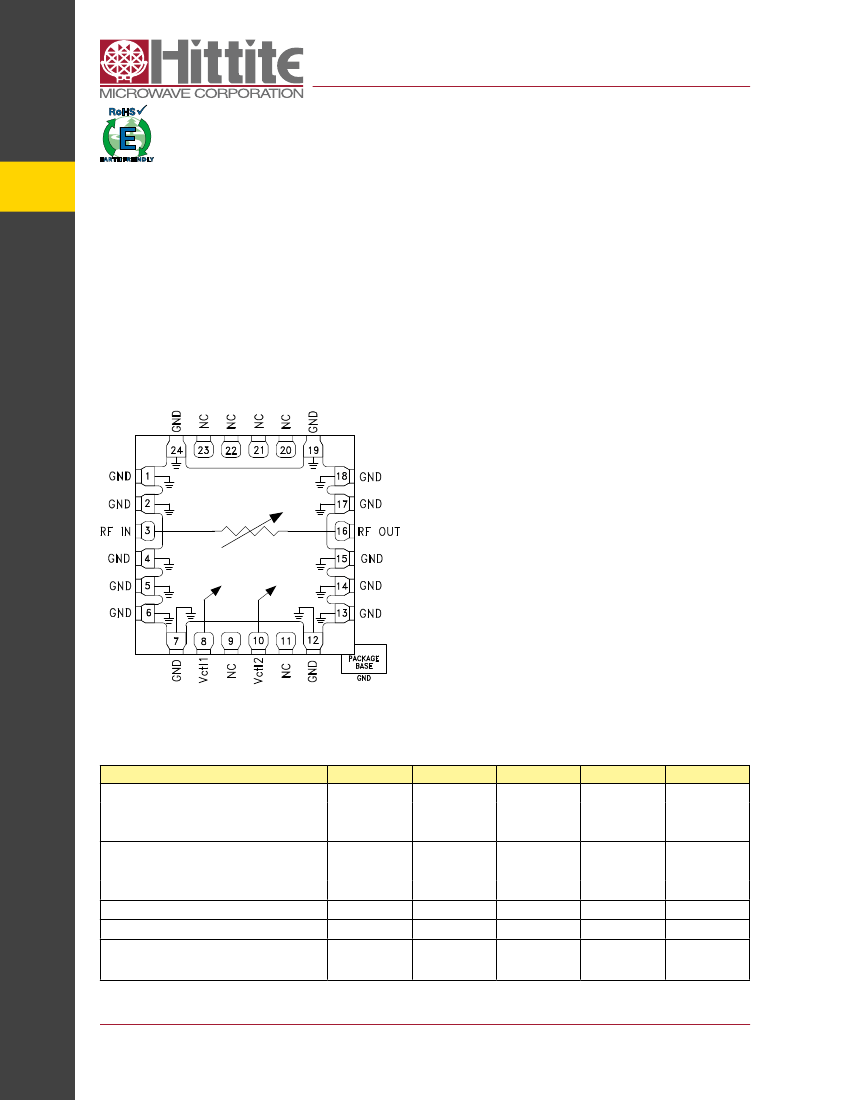

Functional Diagram
Electrical Specifications, T
A
= +25 °C, Test Condition Vctl1 = Vctl2
Parameter
Frequency
10 - 20 gHz
Insertion loss
[1]
20 - 30 gHz
30 -40 gHz
10 - 20 gHz
attenuation range
20 - 30 gHz
30 - 40 gHz
Input return loss
output return loss
Input third order Intercept
(two-tone input Power = 10 dBm each tone)
[2]
[1] Vcntl1 = Vcntl2 =-2.4V
[2] Vcntl1 = Vcntl2 =-2.0V worst case
10 - 40 gHz
10 - 40 gHz
25
30
35
Min.
typ.
3
3
3.5
30
35
40
13
13
33
Max.
3.5
4
4.5
units
dB
dB
dB
dB
dB
dB
dB
dB
dBm
1
