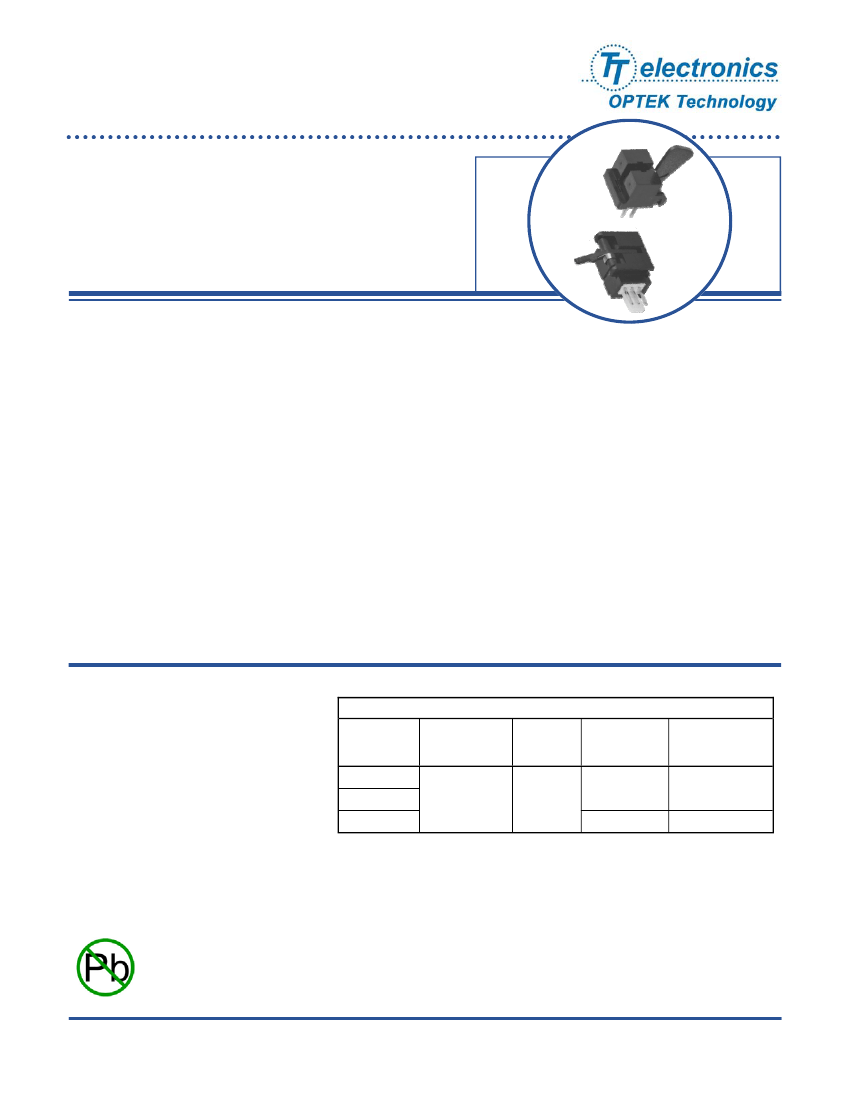

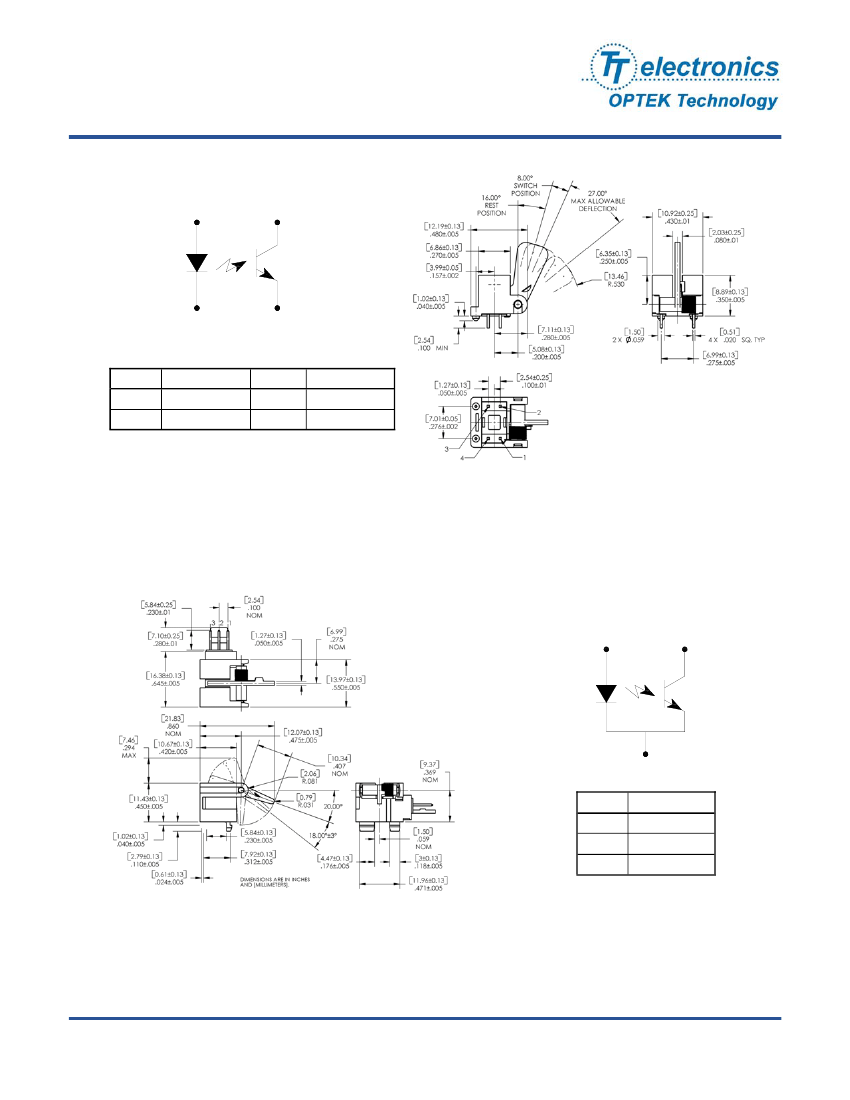

Slotted Optical Flag Switch
OPB680, OPB680-20, OPB690Z
Features:
•
•
•
•
•
•
Phototransistor output
Mechanical switch replacement
Enhanced signal to noise ratio
Printed PCBoard mounting (OPB680, OPB680-20)
Lever force options(OPB680, OPB680-20)
3-pin connector, 0.98” (2.5mm) Mates with Molex 22-01-1032
and terminal #08-70-0069
OPB680
OPB690
Description:
Each
OPB680, OPB680-20
and
OPB690Z
optical flag switch consists of an infrared emitting diode in a molded
plastic housing. The phototransistor has an enhanced low current roll-off that improves contrast ratio and
immunity to background irradiance.
A lever arm actuated flag interrupts the light beam and switches the output between states that can readily drive
logic gates. This can be actuated by passing a paper sheet without damaging the paper’s edge.
OPB680-20
offers increased lever operating force that prevents false triggering due to incidental contact in door
sensing and other heavy-duty applications.
OPB690Z
is designed to easily snap mount into a 0.037” ± 0.001” (0.940 mm ± 0.025 mm) thick material with a
rectangular opening of 0.320” ± 0.003” x 0.472” (8.128 mm x 11.989 mm) minimum. Insertion into the punched
side of metal is recommended.
Customized lever arms and spring torques can be designed for specific applications for each of the devices.
Custom electrical, wire, cabling and connectors are available. Contact your local representative or OPTEK for
more information.
Applications:
•
Mechanical switch replacement
•
Speed indication (tachometer)
•
Mechanical limit indication
•
Edge sensing
Part
Number
OPB680
OPB680-20
OPB690Z
890 nm
Ordering Information
LED Peak
Wavelength
Flag Travel
Degrees
Max
51°
70°
Lead Length /
Spacing or
Connector
0.100" / 0.275"
Molex 5102
Sensor
Rbe
Transistor
RoHS
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A
12/06
Page 1 of 3
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Slotted Optical Flag Switch
OPB680, OPB680-20, OPB690Z
OPB680, OPB680-20
1
3
4
2
Pin #
1
4
Description
Anode
Cathode
Pin #
3
2
Description
Collector
Emitter
[ MILLIMETERS]
DIMENSIONS ARE IN:
INCHES
Notes:
(1) For OPB680 and OPB680-20, the “on” condition exists when the lever arm is in the rest position (16° from vertical).
(2) For OPB680 and OPB680-20, the “off” condition exists when the lever arm is deflected clockwise 8° ± 3° from the rest position (16°
from vertical). Maximum allowable deflection is 35° from the rest position.
OPB690Z
1
2
3
Pin #
1
2
3
Description
Anode
Collector
Ground
Notes:
(1) For OPB690Z, the “on” condition exists when the lever arm is deflected clockwise 18° +/-3° from the rest position (20° from vertical).
(2) For OPB690Z, the “off” position exists when the lever arm is in the rest position (20° from vertical).
(3) For OPB690Z, from the rest position to the switch point the lever torque measured at the end of the arm is 1.5 grams maximum.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A 12/06
Page 2 of 3
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Slotted Optical Flag Switch
OPB680, OPB680-20, OPB690Z
Absolute Maximum Ratings
(T
A
=25°C unless otherwise noted)
Storage & Operating Temperature Range
Lead Soldering Temperature [1/16 inch (1.6 mm) from the case for 5 sec. with soldering iron]
(1)
Input Diode
Forward DC Current
Peak Forward Current (1 µs pulse width, 300 pps)
Reverse DC Voltage
Power Dissipation
(2)
Output Phototransistor
Collector-Emitter Voltage
Emitter Reverse Current
Collector DC Current
Power Dissipation
(3)
30 V
10 mA
30 mA
200 mW
50 mA
3A
3V
100 mW
-40°C to +100°C
260°C
Electrical Characteristics
(T
A
= 25°C unless otherwise noted)
SYMBOL
PARAMETER
MIN
TYP
MAX
UNITS
TEST CONDITIONS
Input Diode
(see OP245 for additional information)
V
F
I
R
Forward Voltage
Reverse Current
-
-
-
-
1.6
100
V
µA
I
F
= 10 mA
V
R
= 3 V
Output Phototransistor
(See OP755 for additional information)
V
(BR)CEO
BV
ECO
I
CEO
Coupled
V
SAT
I
C(ON)
Mechanical
F
OP
Cycles
Operating Force
OPB680, OPB690Z
OPB680-20
Operating Cycles
-
-
100 K
-
-
-
1.5
20
-
Saturation Voltage
On-State Collector Current
-
-
150
-
600
-
-
0.4
-
µA
I
F
= 10 mA, V
CE
= 5 V, blocked
V
I
F
= 10 mA, I
C
= 100 µA
I
F
= 10 mA, V
CE
= 5 V, unblocked
Collector-Emitter Breakdown Voltage
Emitter-Collector Breakdown Voltage
Collector-Emitter Dark Current
30
4.0
-
-
-
-
-
-
100
V
V
µA
I
C
= 100 µA
I
EC
= 100 µA
V
CE
= 5 V
g
cycles
Measured at end of lever
-
Notes:
(1) RMA flux is recommended. Duration can be extended to 10 seconds maximum when flow soldering. Maximum 20 grams force
may be applied to leads when soldering (OPB680, OPB680-20).
(2) Derate linearly 1.33 mW/°C above 25° C.
(3) Derate linearly 2.00 mW/°C above 25° C.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Issue A
12/06
Page 3 of 3
