Precision Pressure Transducer –
Explosion Proof
PPTE
Honeywell’s PPTE offers an explosion-proof pressure transducer where protection in hazardous locations is critical.
It combines proven silicon sensor technology with microprocessor-based signal conditioning to provide an extremely
smart pressure transducer. Designed with a hermetically sealed, stainless steel construction, the PPTE operates in
severe vibration, thermal and mechanical shock environments. The PPTE has many software features that support a
wide range of applications.
APPLICATIONS:
Process Control
Chemical Refineries
Oil and Gas
Paper and Pulp
Digital
and
Analog
±0.10%
Accuracy from
-40 to 85ºC
Hermetically
Sealed
Class I, Div I,
Groups B, C, D
Class II/III, Div I,
Groups E, F, G
Temp. T6
Max Ambient = 70ºC
Type 4X
FEATURES AND BENEFITS
High Accuracy
0.10% FS typical accuracy
from -40 to 85 C
Smart, Digital Sensing and Control
ISO-9001
ISO-14001
System Design
-
additional signal compensation
Simplifies
to gain the benefits Noa very accurate sensor.
needed
of
- Connect
Efficient Data Acquisition
capability. up to 89 units on a multidrop
bus using built-in RS-485
Easy Interface
- Directly connects to PC via communication ports.
Closes the Loop
- Smart PPTE makes control decisions.
Versatile and Configurable
with
and new
Works
either
existing
or RS-485
systems.
- All units have 0-5V analog
and
RS-232
digital outputs.
Isolation diaphragms handle most media
- harsh gases or liquids.
Rugged Design
- Operates in severe vibration, thermal, and
mechanical shock environments.
Optimizes Output
- User-configurable pressure units, sampling,
update rate.
Flags Problems
- Internal diagnostics set flags, provide alarms.
User Selectable Software Features
Baud Rate, Parity Setting, Continuous Broadcast, ASCII or Binary
Output, Sensor Temperature Output ( C or F), Deadband,
Sensitivity, Tare Value, Configurable Analog Output
PPTE
SPECIFICATIONS
Performance Specifications
(1)
Accuracy:
(from -40 to 85ºC)
Digital: ±0.10% FS Typ., ±0.20% FS Max.
(2)
Analog: ±0.12% FS Typ., ±0.24% FS Max.
(2)
Temperature: ±1ºC (at sensing element)
Temperature Range:
Operating -40 to 85ºC (-40 to 185ºF)
Storage: -55 to 90ºC (-67 to 194ºF)
Sample Rate
(4)
:
8.33ms to 51.2 min
Resolution:
Digital: Up to 0.0011% FS
Analog: 1.22mV steps (12 bits)
Response Delay:
(1000/update rate) +1ms, minimum 17ms
Mechanical Specifications
Pressure Ranges and Type:
See Ordering Information
Pressure Units
(4)
:
atm, bar, cmwc, ftwc, hPa, inHg,
inwc, kg/cm², KPa, mBar, mmHg, MPa, mwc, psi,
user, Icom, pfs
Media Compatibility:
Suitable for media compatible
with 316 stainless steel (Consult factory for Hastelloy
diaphragm.)
Weight:
22 oz. (624 gm) NPT w/pigtail style
Electrical Specifications
Output:
RS-232 Digital w/0-5VAnalog
(4)
RS-485 Digital w/0-5V Analog
(4)
Power Requirements:
Supply Voltage: 6 to 30 VDC
Operating Current: Standard: 19-27mA
Baud Rate
(4)
:
1200, 2400, 4800, 9600,
14400, 19200, 28800
Bus Addressing
(4)
:
Address up to 89 units.
Industrial Emissions and Immunity:
Meets IEC 61326
Environmental Features
(3)
Overpressure:
3x FS, maximum 6000psi
Burst Pressure:
3x FS, maximum 8500psi
Mechanical Shock:
1500g, 0.5ms half sine
Temp Shock:
24 1-hour cycles, -40 to 85ºC
Vibration:
0.5in or 20G’s, 20Hz – 2K Hz
(1) Accuracy is the sum of worst case linearity, repeatability,
hysteresis, thermal effects and calibration errors from -40 to
85ºC. Typical is the average of absolute value of errors at
all pressures and temperatures. Calibration is traceable to
NIST. (2) Tighter accuracy available on some models.
Consult factory. (3) Exposure to overpressure will not
permanently affect calibration or accuracy of unit.
Exceeding burst pressure may result in media escape.
Mechanical Shock tested per MIL-STD-883D, M2002.3,
Cond. B. Vibration tested per MIL-STD-883D, M2007.2,
Cond. A. (4) User configurable.

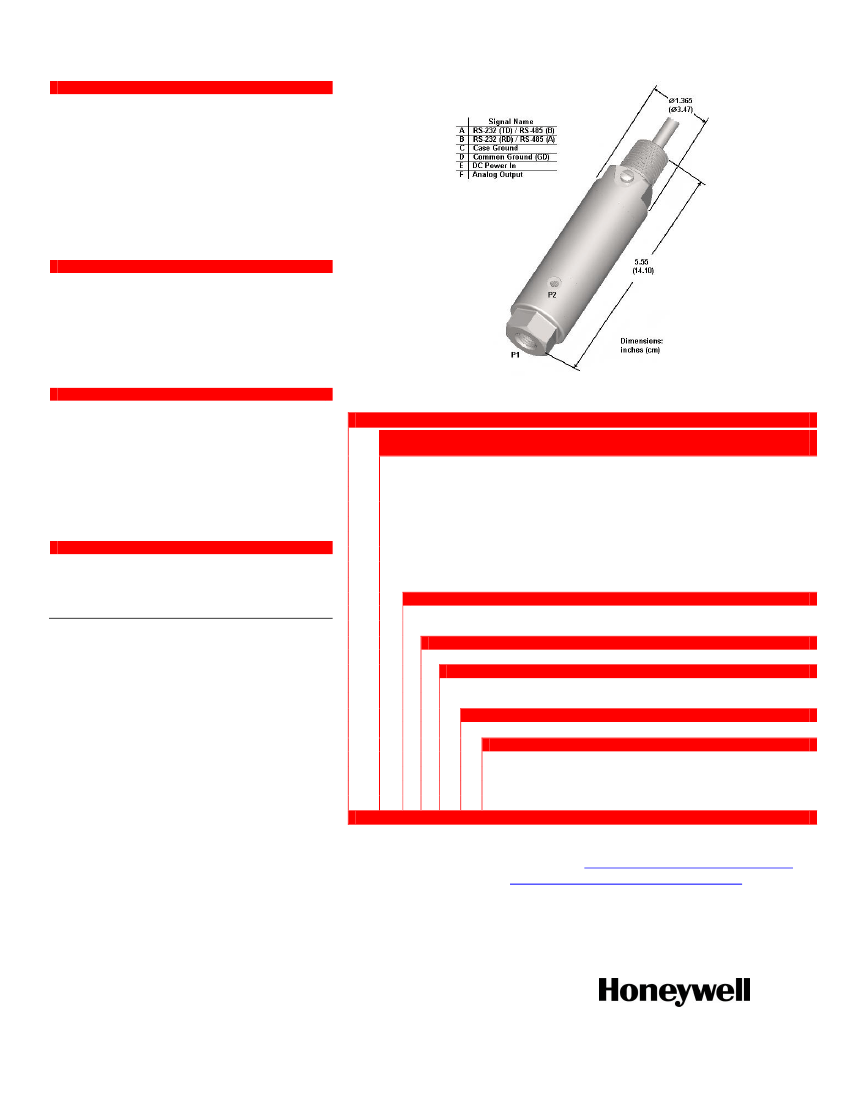

CASE OUTLINE
ORDERING INFORMATION
PPTE Precision Pressure Transducer – Explosion Proof
FULL SCALE PRESSURE RANGE
Absolute
Gauge
0015
15 PSI
n/a
0020
20 PSI
20 PSI
0040
40 PSI
40 PSI
0100
100 PSI
100 PSI
0300
300 PSI
300 PSI
0500
500 PSI
500 PSI
1000
1000 PSI
1000 PSI
1500
1500 PSI
1500 PSI
3000
3000 PSI
3000 PSI
TYPE
P1 Pressure
P2 Pressure
A
Absolute
0 (vacuum) to FS
N/A
G
Gauge
Reference to FS
Reference
P1 PRESSURE CONNECTION
P
¼ - 18 NPT (internal)
OUTPUTS
2V
RS-232 digital, 0-5V analog
5V
RS-485 digital, 0-5V analog
ELECTRICAL CONFIGURATION AND CONNECTION
D
½ - 14 NPT external w/4ft pigtail cable
EXPLOSION PROOF CERTIFICATION
C
CSA, Canadian Standards Association
Class I, Div I, Groups B, C, D; Class II/III, Div I, Groups E, F, G
F
Factory Mutual
Class I, Div I, Groups B, C, D; Class II/III, Div I, Groups E, F, G
PPTE 0500 A P 2V D C
Find out more
For more information on Honeywell’s Precision Pressure Transducers visit us online at
www.honeywell.com/pressuresensing
or contact us at 800-323-8295 or 763-954-2474. Customer Service Email:
ps.customer.support@honeywell.com.
Honeywell reserves the right to make changes to improve reliability, function or design. Honeywell does not assume any liability arising out of the
application or use of any product or circuit described herein; neither does it convey any license under its patent rights nor the rights of others. Covered
by one or more of the following US Patents: 4,918,992, 4,788,521 and 5,948,988.
Honeywell Aerospace
Honeywell International Inc.
12001 Highway 55
Plymouth, MN 55441
www.honeywell.com
ADS-14182
June 2009
©2009 Honeywell International Inc.
