R2T58-24
global
solutions :
local
support
RooTenna
®
2 Panel Antenna
4940 to 5850 MHz Operation
TM
Features and Benefits:
• RooTenna
®
, the antenna with a pouch!
• Low profile 24dBi antenna gain
• 16.25" x 14.75" x 1.25" weatherproof radio compartment
• Low heat absorption white UV protected housing
• Vertical or horizontal polarization, Beamwidth 9deg
• Available with RPSMA, RPTNC, MC Card, MMCX, RPMMCX and
U.FL antenna connector
The RooTenna® panel antenna offered by Laird Technologies is designed to
allow integration of the customers’ radio equipment inside the weatherproof
compartment. The radio compartment is big enough to house transceivers,
amplifiers, and other electronic equipment.The unit is complete with a
removable customer mounting plate for mounting of customer electronics and
an RJ45 passthru ethernet feedthru.. The housing is UV stabilized ABS plastic.
The backplate is alodine coated aluminum with stainless steel fasteners. All
bracket fasteners are stainless steel for corrosion protection.
Applications
• Integrated radio/antenna units
• WISP CPE equipment
• Amplified antennas
• 802.11a applications
For sales information:
Telephone
800-323-3757
E-Mail
sales@pacwireless.com
or visit:
www.pacwireless.com
www.pacwireless.com
R2T58-24
ljlj

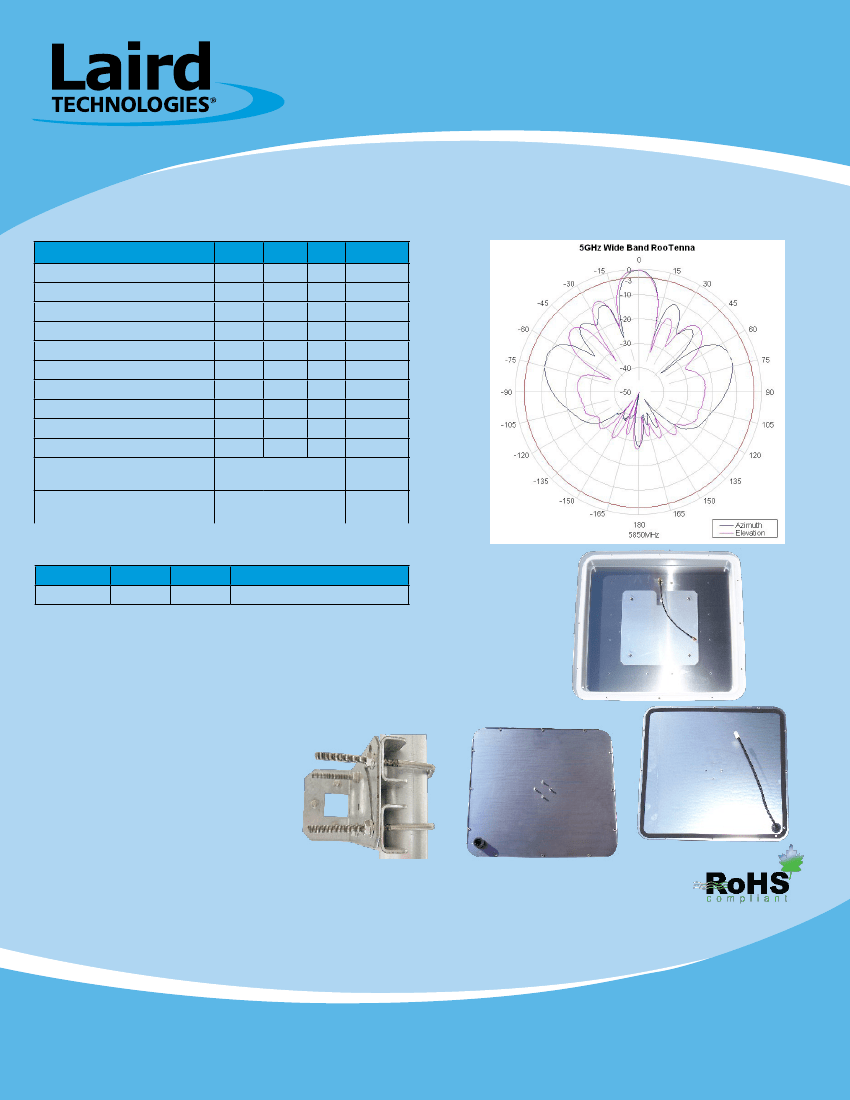

Specifications
Parameter
Frequency Range
VSWR (4940-4990MHz <2.0)
Impedance
Input Power
Operating Temperature
Gain
3db Beam Angle (E-Plane)
3dB Beam Angle (H-Plane)
Front to Back
Weight
Compartment Dim(L x W x H)
Outside Dim (L x W x H)
30
6 (2.7)
16.25” x 14.75” x 1”
(413 x 375 x 25)
18.5” x 16.8” x 2.5”
(470 x 427 x 64)
-45
24
9
9
Antenna Pattern at 5850 MHz
Min
4940
1.5:1
50
20
+70
OHM
W
Deg C
dBi
Deg
Deg
dB
Lb (kg)
In (mm)
In (mm)
Typ
Max Units
5850
MHz
Wind Loading
100MPH
Force (Lbs)
77.8
125MPH
121
100MPH with ½” Radial Ice
83
System Ordering:
R2T58-24-XXXX 4900-5850MHz 24dBi high gain RooTenna
®
compartment antenna
XXXX= connector type
Please specify RSMA, RTNC, MMCX, RMMCX, MC or UFL when ordering
Notes:
• All shipments F.O.B. Schaumburg, IL 60173
• All antennas carry a 2 Year Warranty
Any information furnished by Laird Technologies and its agents is believed to be accurate and reliable. Responsibility for the use and application of Laird Technologies materials rests with the end
user since Laird Technologies and its agents cannot be aware of all potential uses. Laird Technologies makes no warranties as to the fitness, merchantability, or suitability of any Laird Technologies
materials or products for any specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies products are sold pursuant
to the Laird Technologies domestic terms and conditions of sale in effect from time to time, a copy of which will be furnished upon request.
Specifications subject to change without notice.
ANT-SPEC-R2T58-24-1108
