BGA 777L7 E6327 datasheet, PDF

Datasheet> All Categories > Topical application> Wireless rf/communication> BGA 777L7 E6327

BGA 777L7 E6327: DescriptionIC amp mmic sgl-band LN tslp7-1; CategoryTopical application Wireless rf/communication; File Size407KB，24 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BGA 777L7 E6327 Overview

IC amp mmic sgl-band LN tslp7-1

BGA 777L7 E6327 Parametric

Parameter Name	Attribute value
Datasheets
BGA777L7
Product Photos
TSLP-7
Standard Package	7,500
Category	RF/IF and RFID
Family	RF Amplifiers
Packaging	Tape & Reel (TR)
Frequency	2.3GHz, 2.7GHz
P1dB	-11dBm
Gai	16.8dB
Noise Figure	1.2dB
RF Type	UMTS
Voltage - Supply	2.6 V ~ 3 V
Current - Supply	10mA
Test Frequency	2.3GHz
Package / Case	6-XFDFN Exposed Pad
Supplier Device Package	TSLP-7-1
Other Names	BGA 777L7 E6327-NDBGA777L7E6327XTSA1SP000627608

Preview

Download Datasheet

View All

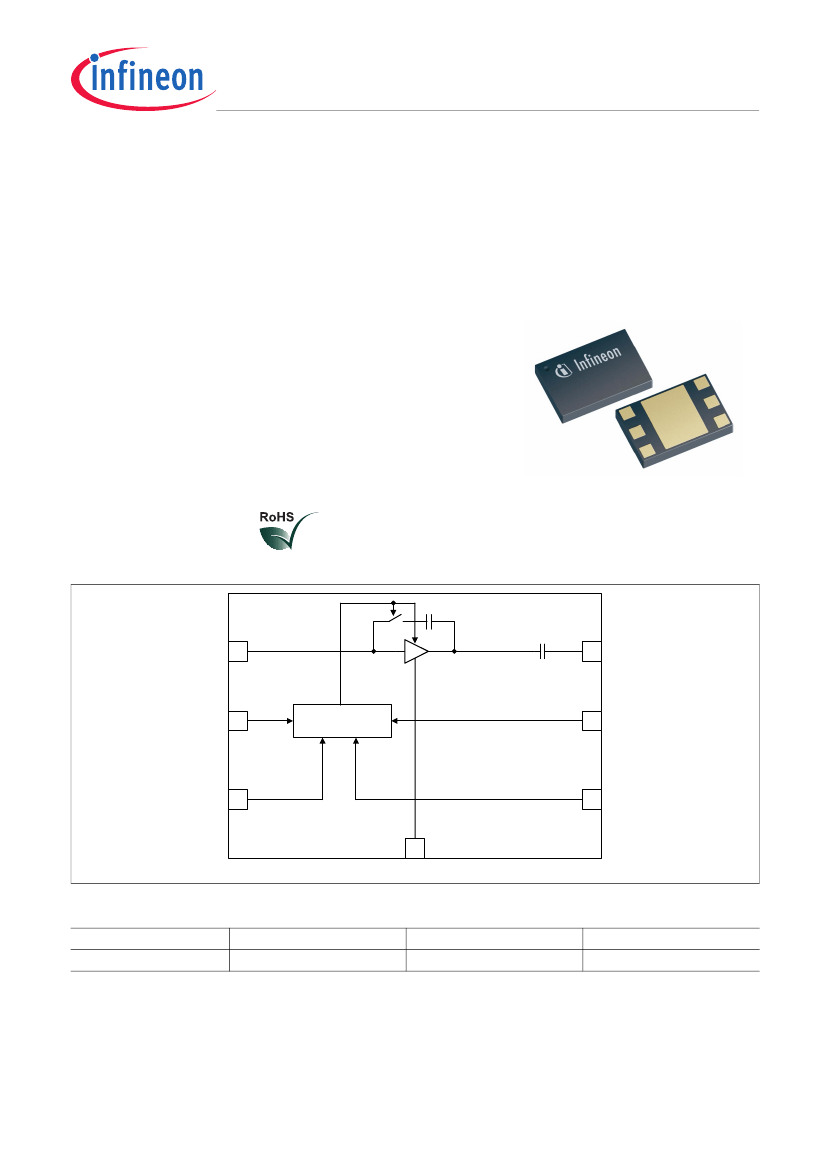

Data Sheet, V3.0, July 2009

BGA777L7

S i ng l e - B an d U M T S L N A

(2300 - 2700 MHz)

RF & Protection Devices

BGA777L7 - Low Power Single-Band UMTS LNA

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1

2.2

2.3

2.4

2.5

2.6

2.7

2.8

2.9

2.10

2.11

2.12

2.13

2.14

2.15

3.1

3.2

3.3

3.4

3.5

4.1

Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Electrical Characteristics

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ESD Integrity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Gain Mode Select Truth Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Switching Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Supply Current and Power Gain Characteristics;

= 25 °C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Logic Signal Characteristics;

= 25 °C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Measured RF Characteristics UMTS Band 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Measured RF Characteristics UMTS Band 38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Measured RF Characteristics UMTS Band 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Measured Performance Band 7 Application High Gain Mode vs. Frequency . . . . . . . . . . . . . . . . . . . 12

Measured Performance Band 7 Application High Gain Mode vs. Temperature . . . . . . . . . . . . . . . . . 13

Measured Performance Band 7 Application Low Gain Mode vs. Frequency . . . . . . . . . . . . . . . . . . . 14

Measured Performance Band 7 Application Low Gain Mode vs. Temperature . . . . . . . . . . . . . . . . . 16

Application Circuit and Block Diagram

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

UMTS Band 7 Application Circuit Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

UMTS Band 38 Application Circuit Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

UMTS Band 40 Application Circuit Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pin Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Application Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Physical Characteristics

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Package Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Data Sheet

V3.0, 2009-07-02
