SL8025WP72NM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> SL8025WP72NM

SL8025WP72NM: Descriptionantenna tri-band 3dbi N male; CategoryTopical application Wireless rf/communication; File Size23KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

SL8025WP72NM Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SL8025WP72NM	-	-	View	Buy Now

SL8025WP72NM Overview

antenna tri-band 3dbi N male

SL8025WP72NM Parametric

Parameter Name	Attribute value
Datasheets
SL8025WP
Standard Package	25
Category	RF/IF and RFID
Family	RF Antennas
Packaging	Bulk
Antenna Type	Panel
Number of Bands	3
Frequency	806MHz ~ 960MHz, 1.71GHz ~ 2.5GHz
VSWR	2
Gai	3dBi
Terminati	N-Male
Mounting Type	Clips
Height (Max)	1.250" (31.75mm)

Preview

Download Datasheet

View All

Laird Technologies - Item # SL8025WP, SL8025WP Tri-Band Omni Antenna

Page 1 of 2

Laird Technologies

Web site:

www.LairdTech.com

All Categories > Squint™ Dual-Band Ceiling Mount Antenna > Phantom Antennas > Squint™ Directional

Antennas for Horizontal Mounting Surfaces > Squint™ ISM Ceiling/Surface Mount Dipole Antenna > 2 dBi

Omnidirectional Ceiling Mount Antenna for PCS > Cellular 4 dBi Gain Ceiling Mount Panel Antenna > Dual band

800 MHz/1900 MHz, 900 MHz/1700 MHz 4 dBi Ceiling Omnidirectional Antenna > SL8025WP Tri-Band Omni

Antenna > Item # SL8025WP

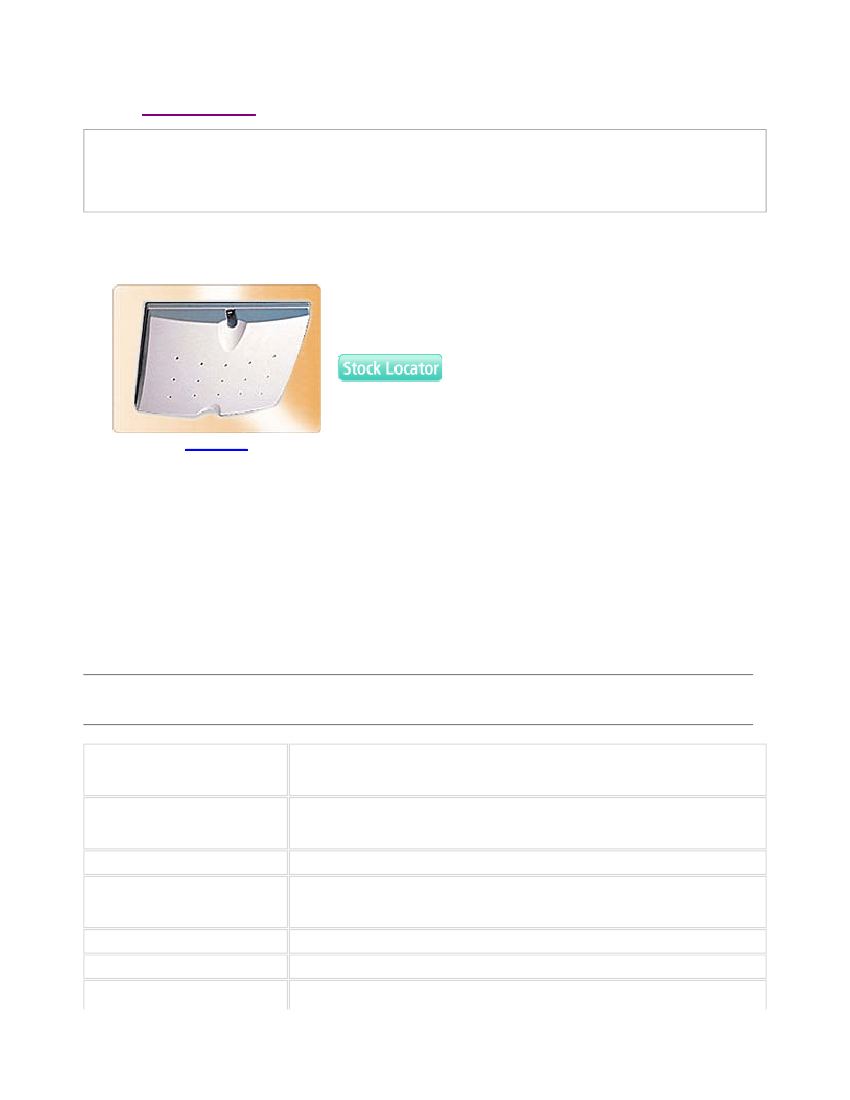

Item # SL8025WP, SL8025WP Tri-Band Omni Antenna

Tri-Band : 806-960, 1710-2170 and 2400-2500 MHz

Ceiling Mount Omnidirectional Antenna

The Cushcraft SL8025WP is a tri-band, linearly polarized 3 dBi

omnidirectional panel. It is designed to provide pattern coverage that is

optimized for indoor coverage requirements at 806-960, 1710-2170 2400

larger image

-2500 MHz, for the GSM, DCS and UMTS frequency bands. The antenna

features a pattern that has been specifically shaped to provide optimal

performance from a ceiling mount location. The pattern is also very uniform and symmetrical, providing systems

integrators with the ability to precisely determine cell size, a major benefit in trying to determine cell density and cell

overlap for in-building systems.

The antenna's low profile (6" x 6" x 1.25") radome features both a very small footprint and a slim silhouette and is

perfect for office and retail spaces where a premium is placed on being aesthetically complimentary and unobtrusive

to the existing environment. The standard antenna comes with an integrated 36" plenum rated coax pigtail and N

male connector.

However, the design allows for the implementation of alternative coax lengths and types and connector types.

Application examples include corporate offices, shopping centers and transportation centers.

Specifications

Band

DCS

GSM

UMTS

806 to 960 MHz

1710 to 2170 MHz

2400 to 2500 MHz

3 dBi

50 º

55 º

60 º

Omnidirectional

Linear

0.75 lbs

Frequency

Nominal Gain

Beamwidth, E Plane

Beamwidth, H Plane

Polarization

http://lairdtech.thomasnet.com/printitem/all-categories/sl8025wp-tri-band-omni-antenna/sl8... 8/8/2012

SL8025WP72NM Related Products

	SL8025WP72NM	SL8025WP36SMM	SL8025WP36NM
Description	antenna tri-band 3dbi N male	antenna tri-band 3dbi SM male	antenna tri-band 3dbi N male
Standard Package	25	25	25
Category	RF/IF and RFID	RF/IF and RFID	RF/IF and RFID
Family	RF Antennas	RF Antennas	RF Antennas
Packaging	Bulk	Bulk	Bulk
Antenna Type	Panel	Panel	Panel
Number of Bands	3	3	3
Frequency	806MHz ~ 960MHz, 1.71GHz ~ 2.5GHz	806MHz ~ 960MHz, 1.71GHz ~ 2.5GHz	806MHz ~ 960MHz, 1.71GHz ~ 2.5GHz
VSWR	2	2	2
Gai	3dBi	3dBi	3dBi
Terminati	N-Male	SMA Male on 3' (915mm) Cable	N-Male
Mounting Type	Clips	Clips	Clips
Height (Max)	1.250" (31.75mm)	1.250" (31.75mm)	1.250" (31.75mm)
