PAN4561

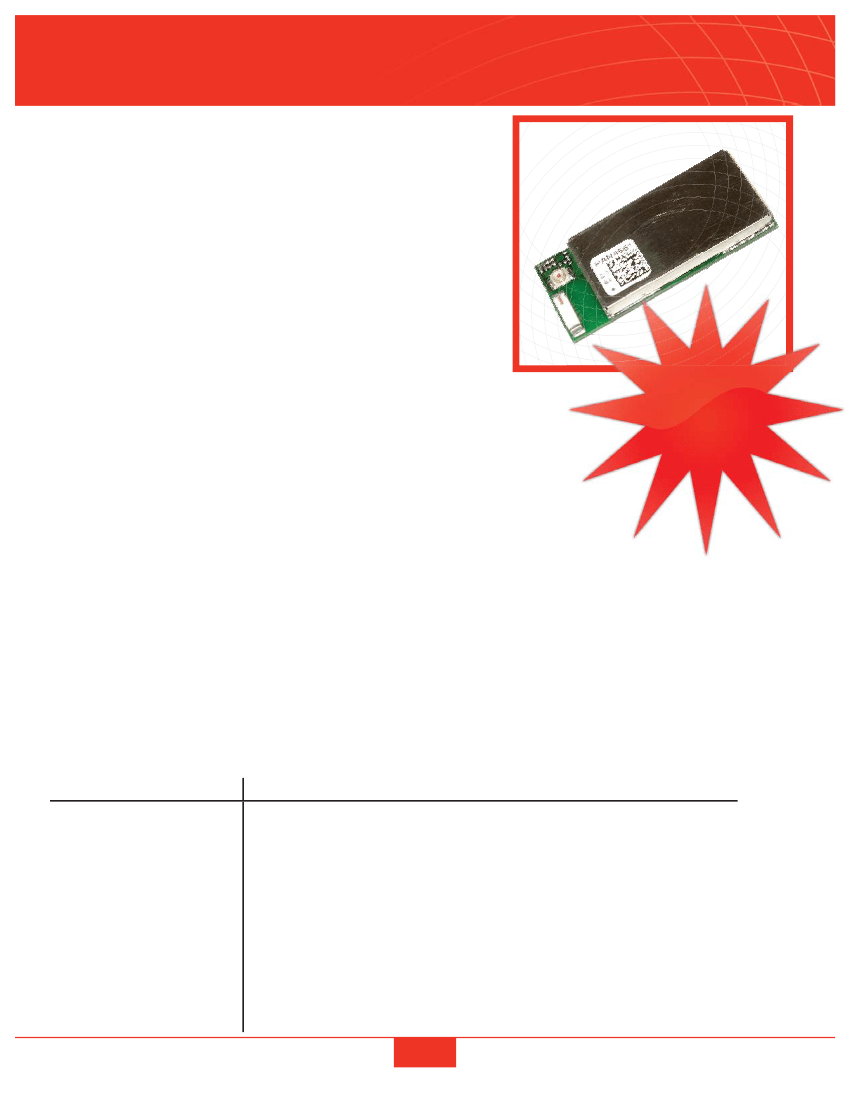

The PAN4561 is an extended range 2.4GHz, ISM, RF module.
Modules may be configured from simple point-to-point proprietary
devices to complex mesh networks by choosing from different
firmware options. Optional Synapse SNAP firmware provides a
highly flexible, industry leading solution for mesh networking with a
complete network development environment. The module uses the
same FreeScale eight bit GT60 processor as Panasonic’s popular
PAN4555 making the two products application compatible. The
PAN4561 has 55 pins allowing access to the full functionality of the
MC13213 SOC. Low noise and power amplifiers have been added
to the PAN4561 for extended range. With a maximum transmit
power of 20dBm and receive sensitivity of -105dBm this module
has a link margin of 125dBm, giving it the best range in its class.
Multiple antenna options are available including, ceramic antenna,
SMD pad output, and U.FL connector. This module will comply
to EN300328, FCC CFR Part 15 and ARIB STD-T66. FCC and IC
certifications are pending.
SNAP
®
NEW!
Product Performance:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Small Size: 35mm X 15mm X 3.5mm
ut
3 Antenna Options: Single Port 50o, Ceramic Antenna or SMD Output
16 Selectable Channels With 250 Kbps In The 2.4 Ghz Band
Low Power Modes For Increased Battery Life
High Sensitivity: -105 dBm Typical At 1% Packet Error Rate
20 dBm Typical Output Power Programmable Over 30 dB Range
Low Supply Voltage: 2.7 V To 3.3 V, 3.0 V Typical
Operating Temperature Range: -40°C To +85°C
Link Quality And Clear Channel Assessment Capability
60k Flash And 4k RAM Memory
Two UARTs And One I
2
C Bus
8 Channel A/D Converter With 10 Bit For Fast And Easy Conversion From Analog Inputs
(Temperature, Pressure And Fluid Levels) To Digital Values.
5 Channel 16 Bit Timer/Pulse Width Modulation (Tpm) Outputs
BDM Port For Direct Download Programming
33 Digital I/O Lines With Programmable Pull-Ups And Several With High-Current Driver
Description
8 bit, LNA, PA, with Ceramic Antenna, No SW
8 bit, LNA, PA, with RF Out on SMD Pads, No SW
8 bit, LNA, PA, with U. FL Ant Connector, No SW
8 bit, LNA, PA, Ceramic Ant, SN55 FW
8 bit, LNA, PA, U.FL Connector, SN55 FW
8 bit, LNA, PA, SMD RF Out, SN55 FW
8 bit, LNA, PA, Ceramic Ant, SNAP FW
8 bit, LNA, PA, SMD RF Out, SNAP FW
8 bit, LNA, PA, U.FL Connector, SNAP FW
Evaluation Kit For The PAN4561 Module
12
Part Numbers:
Part Number
ENWC9A22A1EF
ENWC9A22C1EF
ENWC9A22B1EF
ENWC9A22A2EF
ENWC9A22B2EF
ENWC9A22C2EF
ENWC9A22A4EF
ENWC9A22C4EF
ENWC9A22B4EF
EVAL_PAN4561
Panasonic
Electronic Components
http://www.panasonic.com/rfmodules
1-800-344-2112
SNAP
•
•
•
•
•
®
PAN4561
Applications:
Factory Automation
• RFID Tagging
Home Automation
• Automated Meter Reading
Motor/Lighting Control
• Monitoring (Environmental, Patient, Fitness)
Inventory Management
Remote Control And Wire Replacement For Industrial Systems (Wireless Sensor Networks)
Pin No.
Pin Name
Pin No.
23 / 24
25 / 26
27
28
30
33
34 to 41
42 to 45
46
47
52
53 to 54
55
Pin Name
Vcc
32 kHz Xtal
/Reset
CLKO
BKGD/MS
(PTG0)
VDDA
KBI0-7
(PTA0-7)
PTC7-4
UART1 TxD
(PTE0)
UART1 RxD
(PTE1)
/PA_PwrDn
GND
50 Ohm RF

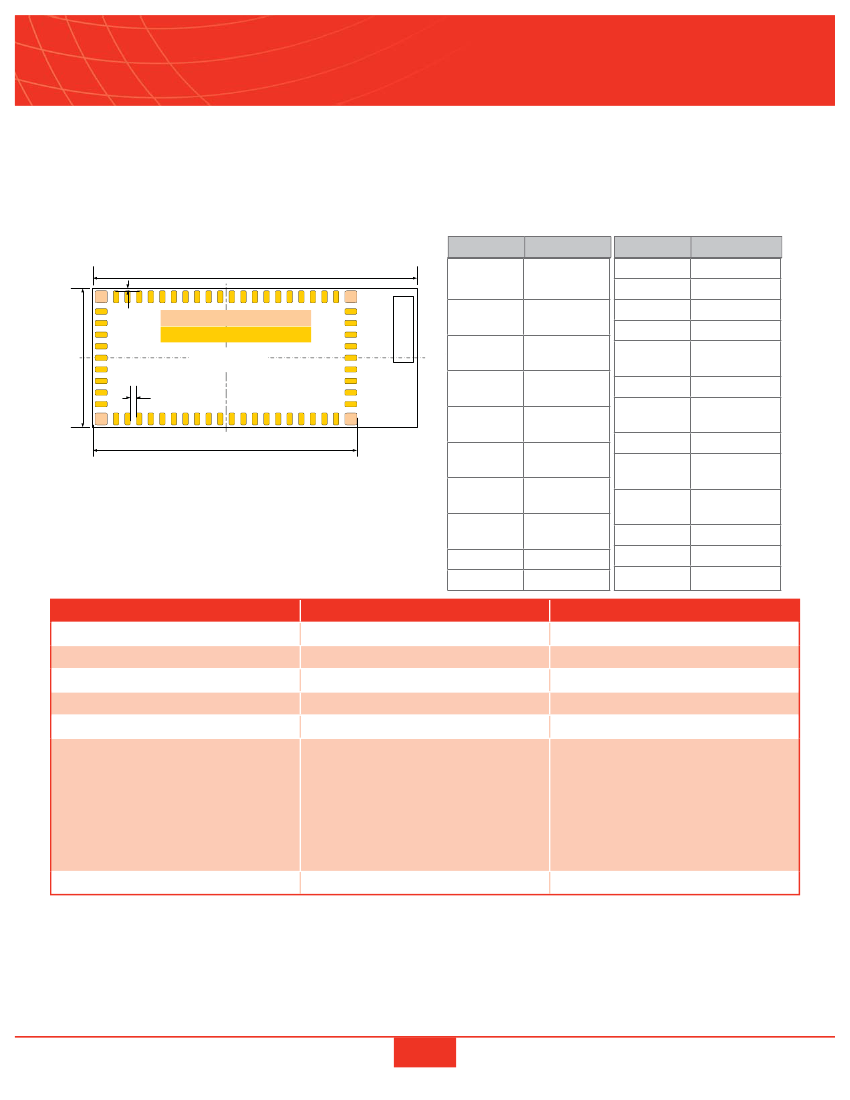

Dimensions & Pin Layout:
1, 22, 32,
GND
56 to 62
2 to 5
6
8
9
10
11
12 to 19
20
TPM2CH1-4
(PTD4-7)
TPM2CH2
(PTD2)
UART2 TxD
(PTC0)
UART2 RxD
(PTC1)
I2C SDA
(PTC2)
I2C SCL
(PTC3)
Note:
The pin names of the module and the internal
MC1321x names fit to each other.
All unmentioned pins are not connected and must
be left open.
ADC7-0
(PTB7-0)
ADC Ref. H
ADC Ref. L
Technical Specifications:
Parameter
Receiver Sensitivity
Output Power
Power Supply
Power Control Range
Maximum Data Rate
Current Consumption
Receive Mode
Transmit Mode
Idle Mode
Doze Mode
Hibernate Mode
Off Mode
Operating Temperature Range
Notes:
All parameters are valid for VDD = 2.7V and Tamb = 25°C.
21
Value
-105 dBm typ.
20 dBm
2.7 V ~ 3.3 V
30 dB
250 kbps
45 mA typ.
202 mA typ.
1.6 mA typ.
50
uA
typ.
16
uA
typ.
2
uA
-40°C to +85°C
Condition / Notes
For 1% Packet Error Rate
Maximal
Single Supply, 3.0 V Typ.
Over The Air
Output Power Nominal Value
No CLKO
Freescale‘s MC13213 is included with the module, SMAC, MAC or Freescale Bee-Stack. There is no additional license fee per module by using
the Freescale Bee-Stack, only a one time general support fee ($500) for the Bee-Stack to be paid to Freescale.
Mode Definitions and Transition Times for saving battery life can be seen in the data sheet MC1321x. The derivative MC13212 and MC13211
as well as a non-PA/LNA version are available on request.
Maximum ratings shown for Tx power and Rx sensitivity, typical ratings may be lower.
13
Panasonic
Electronic Components
http://www.panasonic.com/rfmodules
1-800-344-2112
