RN-41-SM
www.rovingnetworks.com
rn-41sm-ds 9/9/2009
Class 1 Bluetooth® Socket
Module
Features
•
•
•
•
•
•
•
•
•
•
Socket module
3/5V DC TTL I/O
Fully qualified Bluetooth 2.1/2.0/1.2/1.1 module
Bluetooth v2.0+EDR support
Low power
(30mA connected,, <10mA sniff
mode)
UART (SPP or HCI) and USB (HCI only) data
connection interfaces.
Sustained SPP data rates - 240Kbps (slave),
300Kbps (master)
HCI data rates - 1.5Mbps sustained, 3.0Mbps
burst in HCI mode
8MB on board flash, HCI mode, or SPP/DUN
software stacks available.
Embedded Bluetooth stack profiles included
(requires no host stack):
GAP, SDP, RFCOMM
and L2CAP protocols, with SPP and DUN profile
support.
RS232 option
Bluetooth SIG Qualified, End Product Listing
Class 1 high power amplifier with on board
ceramic RF chip antenna.
o
Certifications: FCC, ICS, CE
o
Environmentally friendly, RoHS compliant
•
•
•
•
•
•
Applications
Cable replacement
Barcode scanners
Measurement and monitoring systems
Industrial sensors and controls
Medical devices
Asset tacking
Description
The RN41 socket module is a though hole, low
power, highly Bluetooth radio. This module supports
SPP/DUN and HCI Bluetooth interface protocols, is
simple to design in and fully certified. With its high
performance on chip antenna and support for
Bluetooth® Enhanced Data Rate (EDR), the RN41
delivers up to 3 Mbps data rate for distances to
100M.. The RN41 socket module is the perfect
adding Bluetooth wireless capability to existing
products without significantly redesign your
application saving you significant time and money.
•
•
•

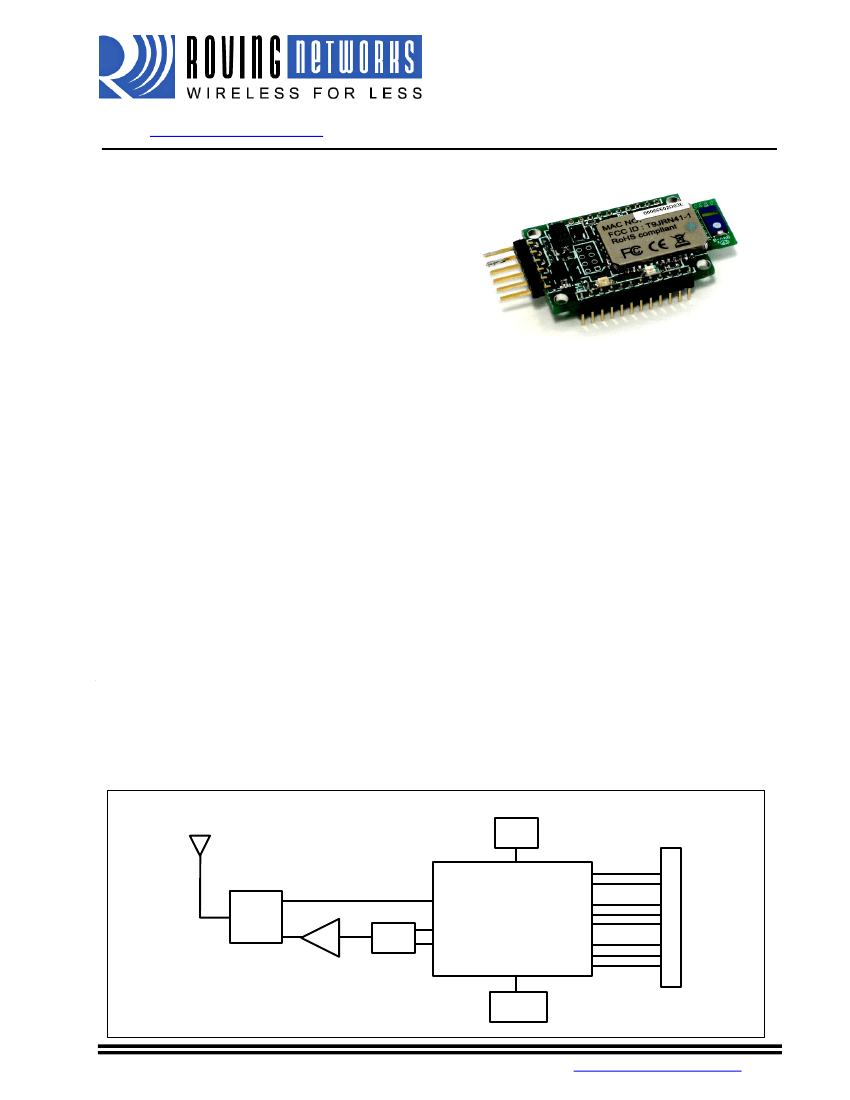

Block Diagram
Crystal
VCC
GND
PIO4
PIO5
PIO6
USB
UART
PCM
RF
Switch
PA
BALUN
CSR BlueCore-04
External
Flash
Memory
809 University Avenue
•
Los Gatos, CA 95032
•
Tel (408) 395-6539
• info@RovingNetworks.com
DS-RN41-V3.1 9/9/2009
Overview
•
•
•
•
•
•
•
•
•
Baud rate speeds: 1200bps up to 921Kbps, non-standard baud rates can be programmed.
Class 1 radio, 330’ (100m) distance, 12dBm output transmitter, -80dBm typical receive sensitivity
Frequency 2402 ~ 2480MHz,
FHSS/GFSK modulation, 79 channels at 1MHz intervals
Secure communications, 128 bit encryption
Error correction for guaranteed packet delivery
UART local and over-the-air RF configuration
Auto-discovery/pairing requires no software configuration (instant cable replacement).
Auto-connect master, IO pin (DTR) and character based trigger modes
Environmental Conditions
Parameter
Temperature Range (Operating)
Temperature Range (Storage)
Relative Humidity (Operating)
Relative Humidity (Storage)
Value
o
-40 C ~ 85 C
o
o
-40 C ~ 85 C
≤90%
≤90%
o
Electrical Characteristics
Parameter
Supply Voltage (DC)
RX Supply Current
TX Supply Current
Min
3.0
Typ.
3.3
35
65
25
30
8
2.5
Max.
5.0
60
100
Unit
V
mA
mA
mA
mA
mA
mA
Average power consumption
Standby/Idle (default settings)
Connected (normal mode)
Connected (low power Sniff)
Standby/Idle (Deep sleep enabled)
250uA
Radio Characteristics
Parameter
Sensitivity @ 0.1%BER
Freq.
(GHz)
2.402
2.441
2.480
2.402
2.441
2.480
2.402
2.441
2.480
Min
-
-
-
15.0
15.0
15.0
-
-
-
-
-
-
140
140
140
140
140
140
Typ
-80
-80
-80
16.0
16.0
16.0
5
5
5
900
15
13
165
165
165
190
190
190
Max
-86
-86
-86
Bluetooth
Specification
≤
-70
Units
dBm
dBm
dBm
dBm
dBm
dBm
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
kHz
RF Transmit Power
Initial Carrier Frequency
Tolerance
20dB bandwidth for modulated
carrier
Drift (Five slots packet)
Drift Rate
f1
avg
Max Modulation
≤
15
75
75
75
1000
-
-
175
175
175
-
-
-
75
≤
1000
40
20
>140
f2
avg
Min Modulation
2.402
2.441
2.480
2.402
2.441
2.480
115
809 University Avenue
•
Los Gatos, CA 95032
•
Tel (408) 395-6539
• info@RovingNetworks.com
DS-RN41-V3.1 9/9/2009
Pin Description
All signals on
Header A
except
pins 4, 5, 6 and 7
have the following
logic levels.
Input logic level LOW
is from -0.4 v to 0.8
V, input high is from
2.1 to 3.4V.
Output logic level
LOW max is 0.2 and
output HIGH is
minimum is 2.8.
All I/O’s except reset
default to weak pull
down.

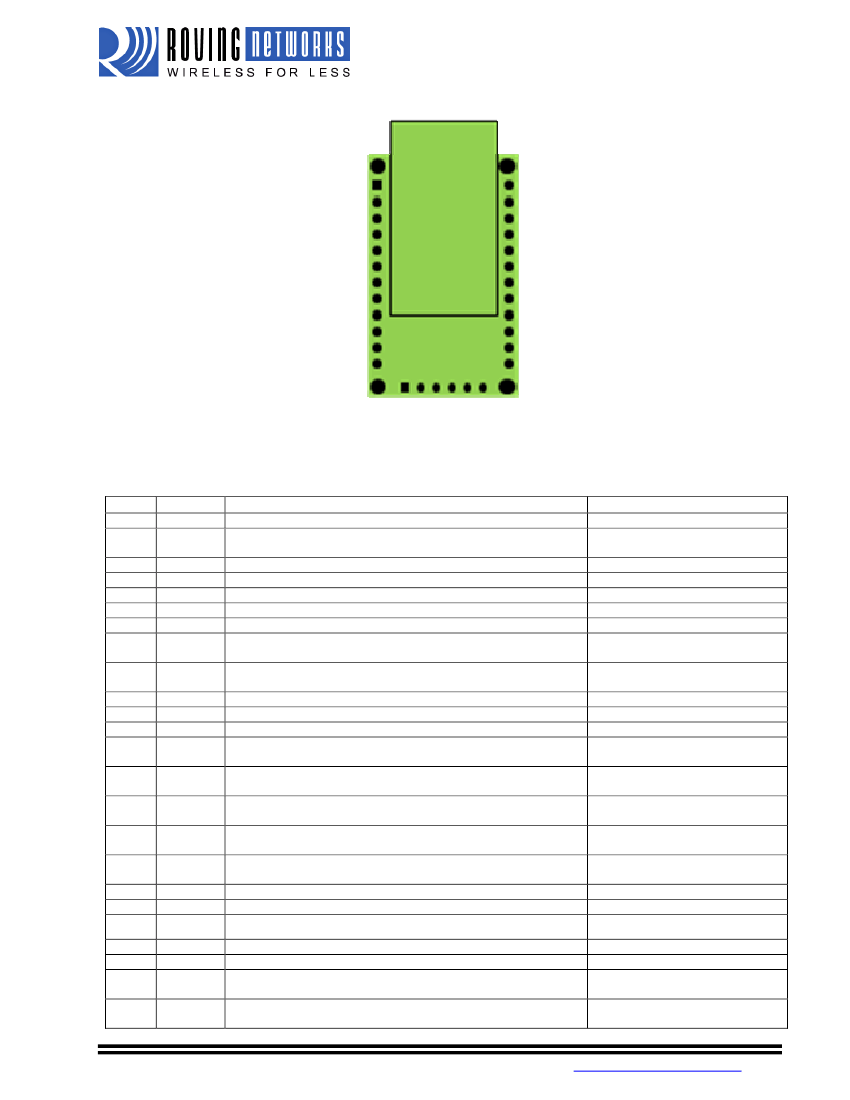

Header A
1
2
3
4
5
6
7
8
9
10
11
12
Header A
24
23
22
21
20
19
18
17
16
15
14
13
1 2 3 4 5 6
Header B
5V TTL signaling
5-12 VDC
Header A
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Name
PIO6
PIO7
RESET
RX
TX
RTS
CTS
VB2
SHUT
DOWN
PRS
VCC 3.3
GND
VB1
PIO8
PIO9
PIO10
PIO11
RXDB
TXDB
RTSB
CTSB
PIO2
PIO3
PIO4
Description
Set BT master (HIGH=auto-master mode)
Set Baud rate (HIGH = force 9600, LOW = 115K or firmware
setting)
Active LOW reset
RS232 receive input (active on –RS232 versions only)
RS232 transmit output (active on –RS232 versions only)
RS232 RTS (active on –RS232 versions only)
RS232 CTS (active on –RS232 versions only)
Analog battery monitor signal (Not currently supported in
firmware)
Shuts down power to the entire module.
RS232 power on (on –RS232 versions only)
3.3V regulated power input
Analog battery monitor signal
Status (RF data rx/tx)
IO
IO (remote DTR signal)
IO (remote RTS signal )
UART receive
UART transmit
UART RTS, goes HIGH to disable host transmitter
UART CTS, if set HIGH, disables transmitter
Status, HIGH when connected, LOW otherwise
Auto discovery = HIGH
Set factory defaults
Notes
weak pulldown
weak pulldown
Input to RN41 with 1K pullup
(Not currently supported in
firmware)
Short to pin 10 VCC for RS232
(Not currently supported in
firmware)
Input to module with weak
pulldown
Input to module with weak
pulldown
Input to module with weak
pulldown
Input to module with weak
pulldown
Input to module
Output from module
Output from module
input to module
Output from RN41
Input to module with weak
pulldown
Input to module with weak
pulldown
809 University Avenue
•
Los Gatos, CA 95032
•
Tel (408) 395-6539
• info@RovingNetworks.com
DS-RN41-V3.1 9/9/2009

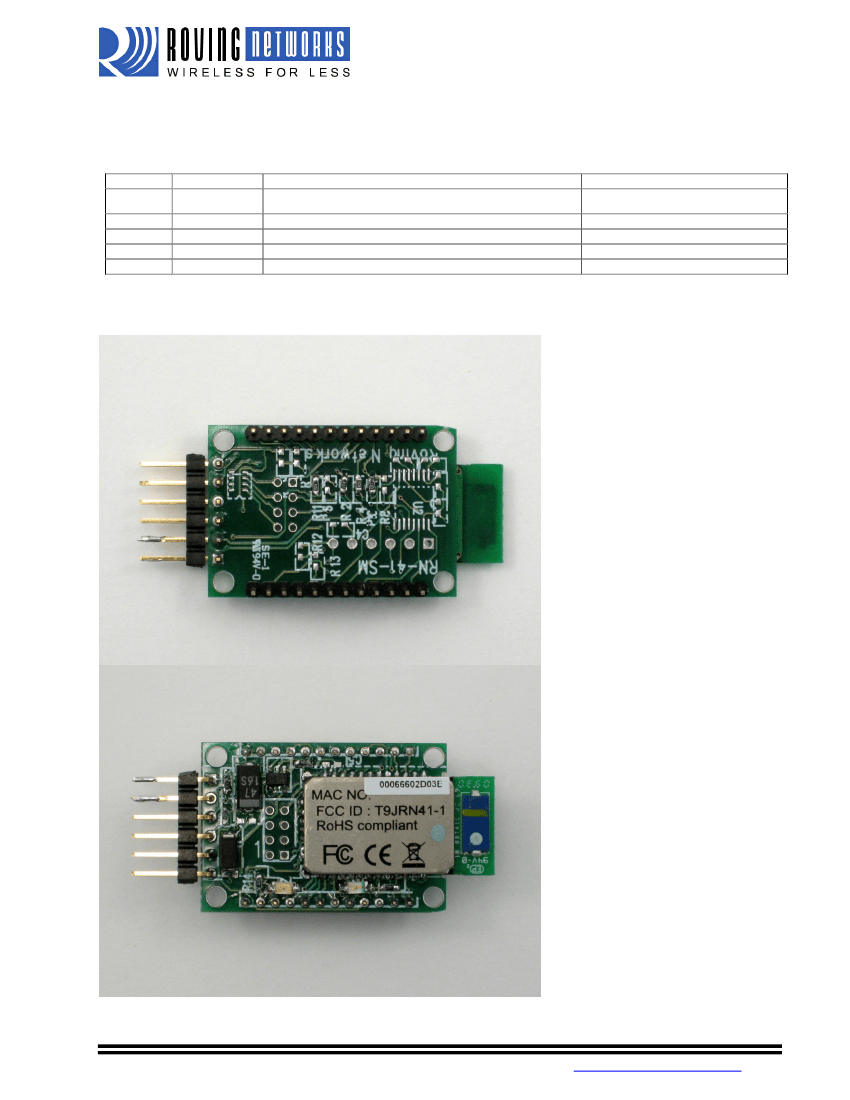

Header B
1
2
3
4
5
6
RX
TX
RTS
CTS
VDD
GND
Receive UART
Transmit UART
RTS UART, goes HIGH to disable host transmitter
CTS UART, if set HIGH, disables transmitter
5-12 VDC
Ground
Input to module
Output from module
809 University Avenue
•
Los Gatos, CA 95032
•
Tel (408) 395-6539
• info@RovingNetworks.com
DS-RN41-V3.1 9/9/2009
Module Dimensions
19mm
2mm dia.
2mill header
40mm
20.5
23mm
809 University Avenue
•
Los Gatos, CA 95032
•
Tel (408) 395-6539
• info@RovingNetworks.com
