1055-TA1320: DescriptionToggle switch spst 2 pin PC mnt; CategoryTopical application Mechanical and electrical/engineering/automation; File Size63KB，1 Pages; ManufacturerMountain Switch

Download Datasheet Parametric View All

1055-TA1320 Overview

Toggle switch spst 2 pin PC mnt

1055-TA1320 Parametric

Parameter Name	Attribute value
Maker	Mountain Switch
Product Category	Toggle Switches
RoHS	no
Contact form	SPST
switch function	ON - OFF
Contact current rating	6 Amps at 125 Volts
Termination type	Solder Pi
Installation style	Panel
Terminal seal	Epoxy
Actuator	Lever, Standard
Voltage ratingAC	125 Volts

Preview

Download Datasheet

View All

Last Update:

4/22/05

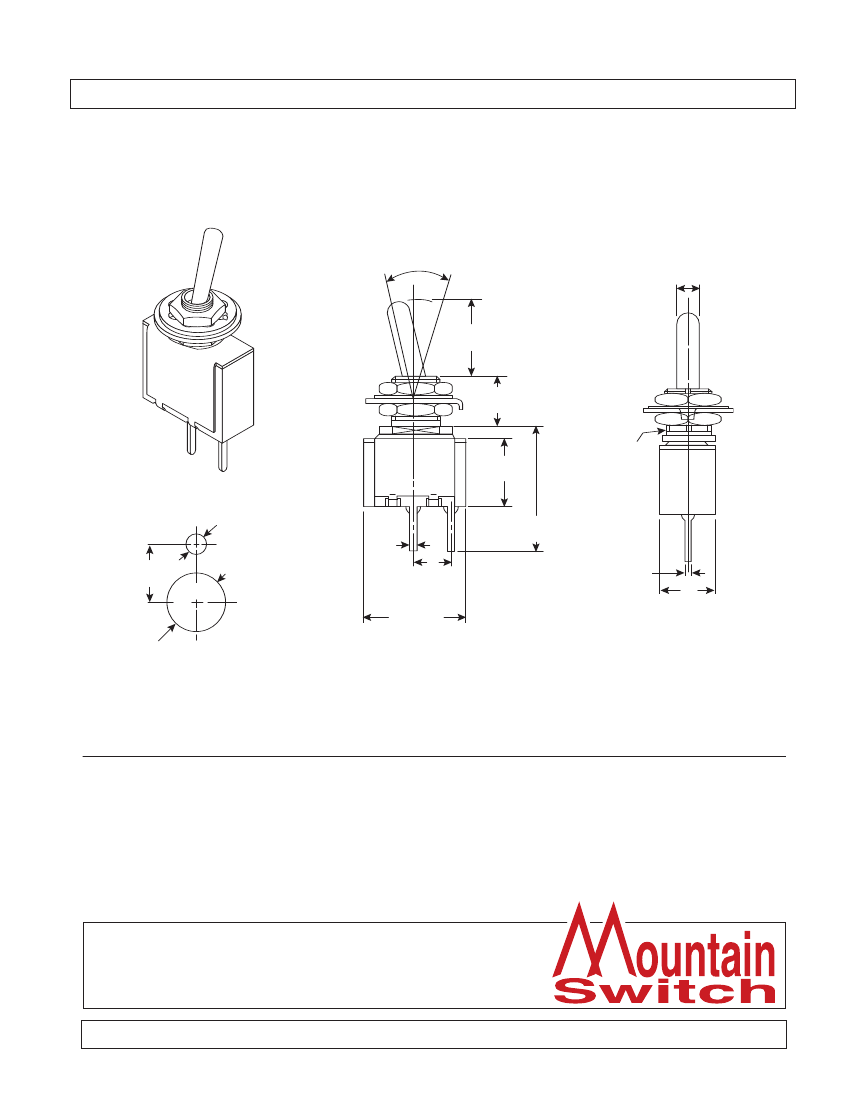

Dimensions: mm (In)

Ref. #:

MS-100189

24°±6°

2.79±.508

(.110±.02)

10.4±.99

(.41±.039)

7.37±.51

(.29±.02)

M6x0.75mm

9.14±.99

(.36±.039)

ø2.49

(.098)

.99

(.039)

6.3

(.248)

4.7±.508

(.185±.02)

12.9±.99

(.51±.039)

ø6.2

(.244)

17.1±.99

(.673±.039)

1.17±.305

(.046±.012)

7.29±.99

(.287±.039)

Electrical Specifications:

•

Rating: 6A/125VAC, 3A/250VAC

•

Contact resistance: 20mΩ max

•

Insulation resistance: 500VDC 100MΩ min

•

Dielectric strength: 1000VAC for 1 minute

•

Electrical life: 10,000 cycles

Mechanical Specifications:

•

Mechanical life: 100,000 cycles

•

Operating temperature: -20°C ~ +65°C

•

Circuit operations: 2P SPST on-off

Miniature Toggle Switch

1055-TA1320

Available from Mouser Electronics

www.mouser.com

1-800-346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
