10TA420

Description
Toggle switch spst ON-off chrome long lever
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size150KB,1 Pages
ManufacturerMountain Switch
Download Datasheet Parametric Compare View All

10TA420 Overview

Toggle switch spst ON-off chrome long lever

10TA420 Parametric

Parameter NameAttribute value
MakerMountain Switch
Product CategoryToggle Switches
RoHSno
Contact formSPST
switch functionON - OFF
Contact current rating6 Amps at 125 Volts
Termination typeSolder Lug
Installation stylePanel
Terminal sealEpoxy
ActuatorLeve
Voltage ratingAC125 Volts
Last Update:
6-27-05

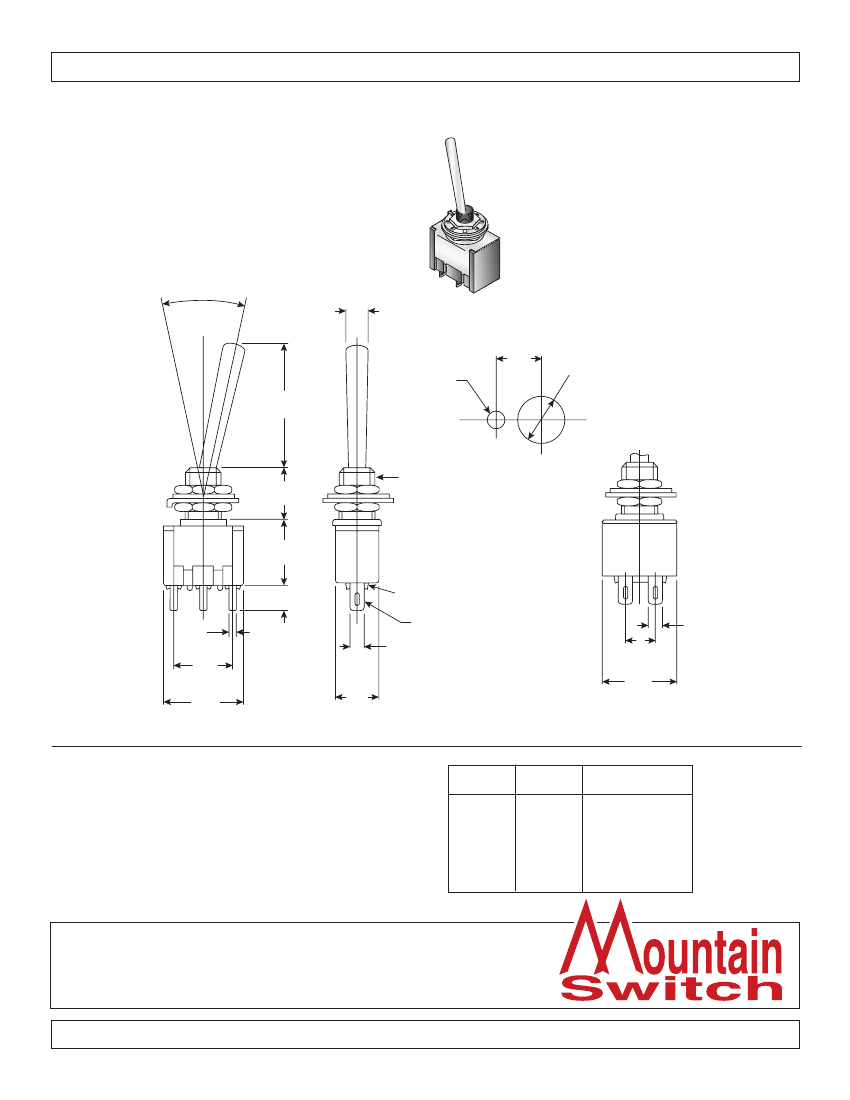

Dimensions: mm (In)
Ref. #:
MS-100540
24˚
ø3.05
(ø.12)
6.35
(.25)
ø2.39
(ø.094)
21.08
(.83)
ø6.10
(ø.24)
8.13
(.32)
M6 x .75
10.41
(.41)
4.06
(.16)
.762
(.03)
9.40
(.37)
12.95
(.51)
7.87
(.31)
Epoxy Resin
Flux Prevention
1.02 x 2.03
(.04 x .08) Hole
2.03
(.08)
4.83
(.19)
12.70
(.50)
2.03
(.08)
Mouser
Stock No.
Type
SPST
SPDT
SPDT
SPDT
DPDT
DPDT
DPDT
Circuit
On-Off
On-On
On-Off-On
(On)-Off-(On)
On-On
On-Off-On
(On)-Off-(On)
Electrical Specifications:
Rating: 6A/125VAC
Contact resistance: 20mΩ (max.)
Insulation resistance: 100MΩ (min.) @ 500VDC
Dielectric Strength: 1000VAC for 1 minute
10TA420
10TA430
10TA435
10TA445
10TA460
10TA465
10TA475
Miniature Toggle Switches
10TA420, 10TA430, 10TA435, 10TA445,
10TA460, 10TA465, 10TA475
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
