Switches
.512
±.039
.315
.087
.409
.256
.252
.031
.370
.512

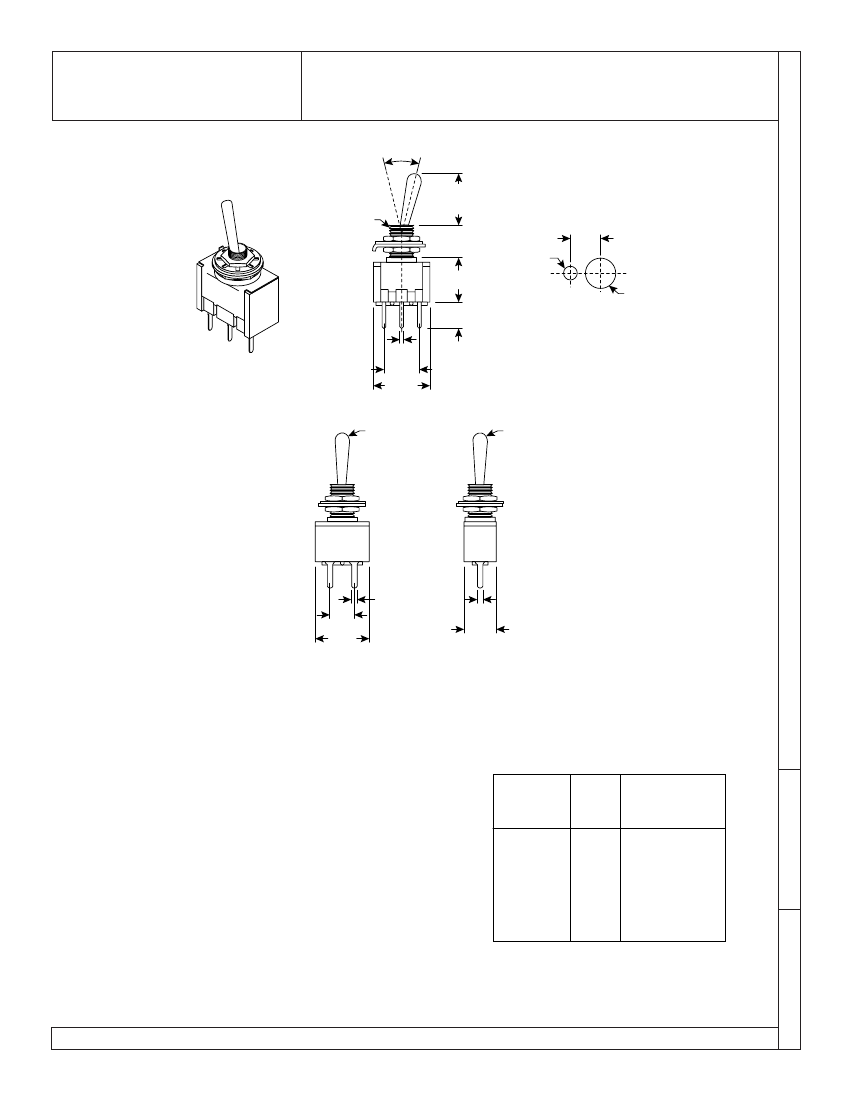

Side View
ø.118
ø.118
Mounting Holes
.244
10TC430, 435, 445, 460, 465, 470
Dimensions (In.)
.046
.189
.496
Front View
DPDT Type
.046
.307
Switches
Front View
SPDT Type
Specifications:
•
Type: PC mount mini toggle
•
Rating: 125VAC 6A, 250VAC 3A
•
Mechanical life: > 30,000 operations
•
Electrical life: > 10,000 operations
•
Insulation resistance: 100MΩ min.
•
Breakdown voltage: 1000VAC for 1 minute
•
Contact resistance: 20mΩ max.
•
Toggle: chrome plated brass
•
Spring: oil quenched hardened steel wire
•
Actuator, cover: stainless steel
•
Case: molded diallyl phtahlate resin
•
Actuator insulator: molded phenolic
•
Contact arm, terminals: silver clad copper w/gold flash
•
Center terminal: copper sheet w/gold flash
•
Hex nut, bushing: nickel plated brass
•
Lock washer, lock ring: unichromed steel
•
UL file no.(Stock # 10TC430, 435, 460, 465 only): E128300
8-
011096
Mouser
Stock No.
10TC430
10TC435
10TC445
10TC460
10TC465
10TC475
Circuit
SPDT
SPDT
SPDT
DPDT
DPDT
DPDT
Type
On-On
On-Off-On
(On)-Off-(On)
On-On
On-Off-On
(On)-Off-(On)
Date:
3-24-98
