10TC945 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 10TC945

10TC945: Descriptiontoggle switch flat lever; CategoryTopical application Mechanical and electrical/engineering/automation; File Size37KB，1 Pages; ManufacturerMountain Switch

Download Datasheet Parametric Compare View All

10TC945 Overview

toggle switch flat lever

10TC945 Parametric

Parameter Name	Attribute value
Maker	Mountain Switch
RoHS	no

Preview

Download Datasheet

View All

MOUSER STOCK NO.

10TC930, 10TC935, 10TC945, 10TC960, 10TC965, 10TC975

MOUSER

ELECTRONICS

10TC930 10TC960

10TC935 10TC965

10TC945 10TC975

Miniature Toggle

Switches

UL (File No. E128300) Listed

Momentary types are not

listed or approved

Mouser

Stock No.

10TC930

10TC935

10TC945

10TC960

10TC965

10TC975

Type

SPDT

DPDT

Circuit

On-On*

On-Off-On*

(On)-Off-(On)

On-On*

On-Off-On*

(On)-Off-(On)

.25

.086 dia.

.255 dia.

.51

Dimensions (In.)

24°

.31

.196

.49

1/4-40 UNS-2A

.59

.31

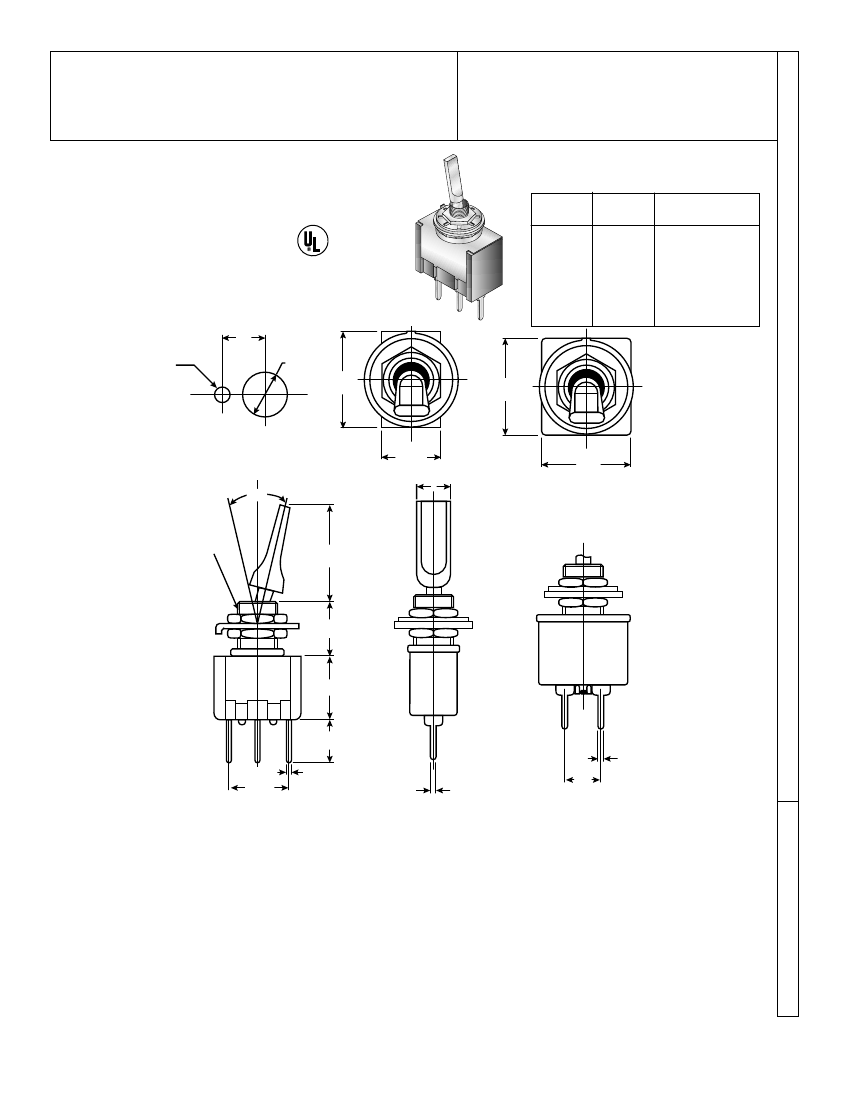

Miniature Toggle Switches

.41

.25

.046

.03

.37

.046

SPDT Types

.19

DPDT Types

011046

Specifications:

•

Resistance load: 6A @ 125VAC (3A @ 250VAC) 6A @ 30VDC

•

Inductive load: 6A @ 125VAC (power factor .8) (3A 2 250VAC (P.F. .8)

•

Mechanical life: over 30,000 operations (switching frequency 20 operations/minute)

•

Electrical life: over 10,000 operations (same as above) (rated load)

•

Insulation resistance: over 100MΩ (by 500VDC tester)

•

Voltage breakdown: 1000VAC for 1 minute (between contact & case)

• Contact resistance: 20mΩ max.

• Ambient temperature: -10°C to +55°C

• Ambient humidity: 85% RH max.

Your source for quality electronics. Toll-free full service

1-11-96

(800) 346-6873

10TC945 Related Products

	10TC945	10TC935
Description	toggle switch flat lever	toggle switch flat lever
