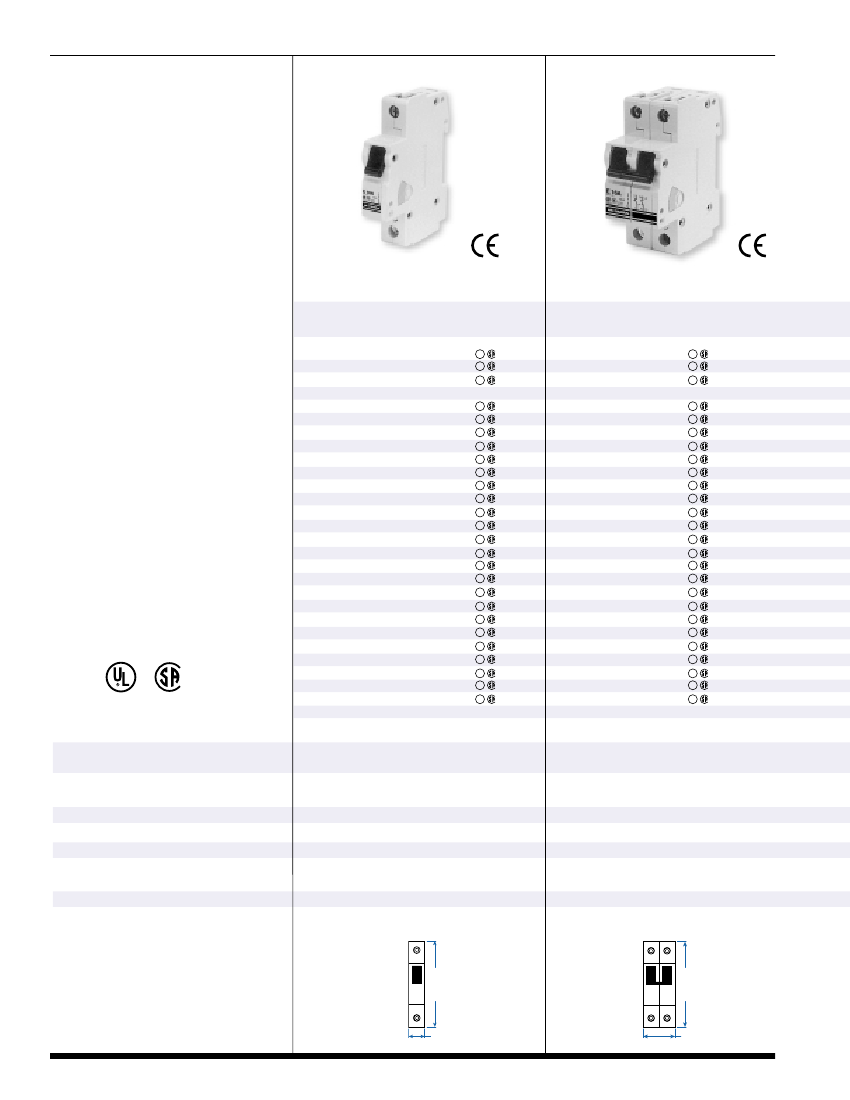

E-TRIP
CHARACTERISTICS
Application Examples:
ONE POLE
ONE POLE PLUS NEUTRAL
High efficiency motors, which have
exceedingly high inrush currents.
Relatively short thermal trip delays
and very high magnetic trip points.
Prototype testing is recommended.
The V-EA-E is the result of continuous
research and improvement of our G-
and D-Trip circuit breakers. It
combines the short thermal trip delay
of the G-Trip and an even higher
magnetic trip point than the D-Trip.
Therefore, the V-EA-E provides
adequate motor overload and short
circuit protection.
Type Designation
2
—
(a)
E
—
(b)
N
—
(c)
U
—
(d)
60
—
(e)
1E
Rated
Current
0.3A
0.5A
0.75A
0.8A
❶
1.0A
1.6A
2.0A
2.5A
3.0A
3.5A
4.0A
5.0A
6.0A
8.0A
10A
12A
❶
12.5A
13A
15A
❶
16A
20A
25A
30A
❶
32A
40A
50A
60A
❶
63A
277VAC
0.3-60A (RC): 10kA with UL-listed
RK5 back-up fuse or MCCB
0.3-10A (RC): 10kA; 12-60A (RC): 5kA
no branch circuit protection required
0.3-63A (RC): 10kA
10000 ON/OFF operations
❷
40°C (104°F)
10/0.3A - 32A = 1.4kg (3.1 lb.)
40A - 63A = 1.6kg (3.5 lb.)
Top: 18-3 AWG; Bottom: 18-2 AWG
20 lb.in.
Type/
Cat. No.
1EU03
1EU05
1EU075
NA
1EU1
1EU1.6
1EU2
1EU2.5
1EU3
1EU3.5
1EU4
1EU5
1EU6
1EU8
1EU10
1EU12
1EU125
1EU13
1EU15
1EU16
1EU20
1EU25
1EU30
1EU32
1EU40
1EU50
1EU60
1EU63
Approvals
UL
UL
UL
2EN
Type/
Cat. No.
2ENU03
2ENU05
2ENU075
NA
2ENU1
2ENU1.6
2ENU2
2ENU2.5
2ENU3
2ENU3.5
2ENU4
2ENU5
2ENU6
2ENU8
2ENU10
2ENU12
2ENU125
2ENU13
2ENU15
2ENU16
2ENU20
2ENU25
2ENU30
2ENU32
2ENU40
2ENU50
2ENU60
2ENU63
277VAC
0.3-60A (RC): 10kA with UL-listed
RK5 back-up fuse or MCCB
0.3-10A (RC): 10kA; 12-60A (RC): 5kA
no branch circuit protection required
0.3-63A (RC): 10kA
10000 ON/OFF operations
❷
40°C (104°F)
5/0.3A - 32A = 1.3kg (2.9 lb.)
40A - 63A = 1.45kg (3.2 lb.)
Top: 18-3 AWG; Bottom: 18-2 AWG
20 lb.in.
Approvals
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
(a)
= Number of Poles
(b)
= Trip Characteristic
(c)
= Blank: without neutral pole
= N:
with neutral pole
(d)
= U:
UL/CSA version
ring tongue terminals,
UL/CSA version
= Blank: European version
(e)
= Rated Current
= R:
Approvals:
UL508 Listed
Voltage Rating
❸
Interrupting Capacity
(UL/CSA - Ratings)
Group Short Circuit
(UL/CSA - Ratings)
Interrupting Capacity (VDE - Ratings)
Mechanical Endurance
Calibration Temperature
Standard Pack and Weight
Terminal Size Acceptability
Terminal Torque
Basic Dimensions (Elevation View)
❶
Not European standard rating.
❷
Please refer to page 21 for specific
91.5 mm
(3.60 in.)
91.5 mm
(3.60 in.)
applications.
❸
DC rating (Manufacturer’s self certification):
One pole 48VDC, two pole series 125VDC
17.5 mm (0.69 in.)
35 mm (1.38 in.)
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
14

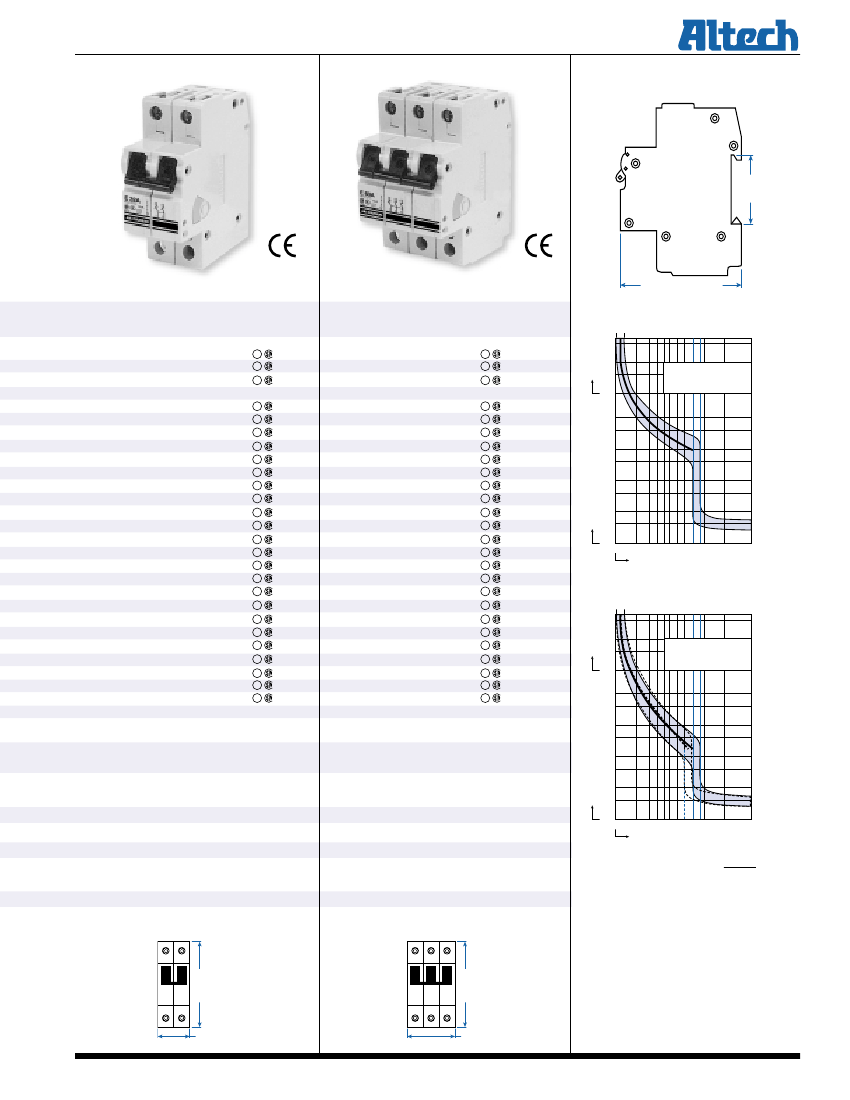

TWO POLE
THREE POLE
Basic Dimensions (side view)
35 mm
(1.38 in.)
2E
Rated
Current
0.3A
0.5A
0.75A
0.8A
❶
1.0A
1.6A
2.0A
2.5A
3.0A
3.5A
4.0A
5.0A
6.0A
8.0A
10A
12A
❶
12.5A
13A
15A
❶
16A
20A
25A
30A
❶
32A
40A
50A
60A
❶
63A
480Y/277VAC
0.3-60A (RC): 10kA with UL-listed
RK5 back-up fuse or MCCB
0.3-10A (RC): 10kA; 12-60A (RC): 5kA
no branch circuit protection required
0.3-63A (RC): 10kA
10000 ON/OFF operations
❷
40°C (104°F)
5/1.4kg (3.1 lb.)
Top: 18-3 AWG; Bottom: 18-2 AWG
20 lb.in.
Type/
Cat. No.
2EU03
2EU05
2EU075
NA
2EU1
2EU1.6
2EU2
2EU2.5
2EU3
2EU3.5
2EU4
2EU5
2EU6
2EU8
2EU10
2EU12
2EU125
2EU13
2EU15
2EU16
2EU20
2EU25
2EU30
2EU32
2EU40
2EU50
2EU60
2EU63
Approvals
UL
UL
UL
3E
Type/
Cat. No.
3EU03
3EU05
3EU075
NA
3EU1
3EU1.6
3EU2
3EU2.5
3EU3
3EU3.5
3EU4
3EU5
3EU6
3EU8
3EU10
3EU12
3EU125
3EU13
3EU15
3EU16
3EU20
3EU25
3EU30
3EU32
3EU40
3EU50
3EU60
3EU63
480Y/277VAC
0.3-60A (RC): 10kA with UL-listed
RK5 back-up fuse or MCCB
Seconds
70mm (2.76 in.)
V-EA-E Trip
0.3A Through 10A Rated Current
1.05-1.35xI
N
60
40
Minutes
Approvals
UL
UL
UL
10
4
1
Thermal Overload
“Must Trip” < 1 hr = 135% RC
“Must Not Trip” > 1 hr = 105% RC
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
UL
Tripping time t
UL
UL
UL
UL
UL
UL
UL
10
4
1
0.4
10
-1
4x10
-2
Seconds
UL
UL
UL
UL
UL
UL
UL
UL
UL
10
-2
4x10
-3
10
-3
1
2
3 4 5 6 8 10
1418
20
40
100
Multiple of Rated Current
E0.3A-E10A
V-EA-E Trip
12A Through 60A Rated Current
1.05-1.35xI
N
60
40
Minutes
UL
UL
UL
UL
UL
10
4
1
Thermal Overload
“Must Trip” < 1 hr = 135% RC
“Must Not Trip” > 1 hr = 105% RC
Tripping time t
UL
10
4
1
0.4
10
-1
4x10
-2
10
-2
4x10
-3
10
-3
0.3-10A (RC): 10kA; 12-60A (RC): 5kA
no branch circuit protection required
0.3-63A (RC): 10kA
10000 ON/OFF operations
❷
40°C (104°F)
4/1.68kg (3.7 lb.)
Top: 18-3 AWG; Bottom: 18-2 AWG
20 lb.in.
1
2
3
4 5 6
8
10 14 18
20
40
100
Multiple of Rated Current
“E” Magnetic Trip Parameters
Rated Current, 0.3A to 50A (
60/63A (- - - - -).
),
Magnetic Trip:
1. Hold for a minimum of 100ms at
surge of 14 times (60A, 10 times)
rated current.
2. Trip in under 100ms at 18 times
(60A, 14 times) rated current.
NB:
Trip curves shown comply with North
American standards. For trip curves
according to European standards please
consult Altech.
91.5 mm
(3.60 in.)
91.5 mm
(3.60 in.)
35 mm (1.38 in.)
52.5 mm (2.07 in.)
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
15
