10TF275: DescriptionToggle switch dpdt (ON)-off-(ON) right angle; CategoryTopical application Mechanical and electrical/engineering/automation; File Size143KB，1 Pages; ManufacturerMountain Switch

Download Datasheet Parametric View All

10TF275 Overview

Toggle switch dpdt (ON)-off-(ON) right angle

10TF275 Parametric

Parameter Name	Attribute value
Maker	Mountain Switch
Product Category	Toggle Switches
RoHS	no
Contact form	DPDT
switch function	(ON) - OFF - (ON)
Contact current rating	6 Amps at 125 Volts
Termination type	Solder Pi
Installation style	Through Hole
Terminal seal	Epoxy
Contact plating	Gold
Voltage ratingAC	125 Volts

Preview

Download Datasheet

View All

Last Update:

6-27-05

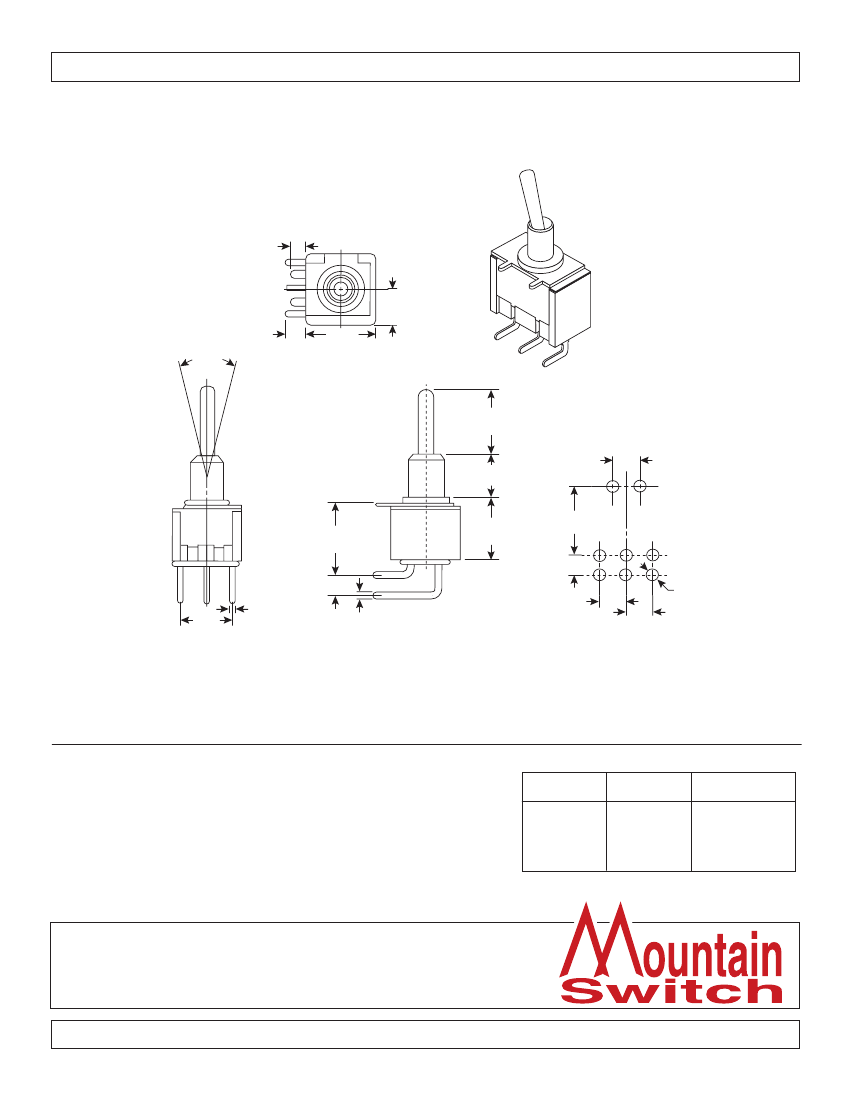

Dimensions: mm (In.)

Ref. #:

MS-100541

2.69

(.106)

12.45

(.49)

3.2

(.126)

12.98

(.511)

24˚

±4˚

11.99 ± .99

(.472 ± .039)

5.1

(.201)

7.59

(.299)

12.7

(.50)

3.81

(.15)

4.7

(.185)

ø1.85

(ø.073)

4.7

(.185)

12.7

(.50)

3.81

(.15)

9.4

(.37)

.787

(.031)

1.17

(.046)

10.9

(.429)

Electrical Specifications:

•

Dielectric Strength: 1000VAC for 1 minute

•

Insulation Resistance: 100MΩ min.

•

Electrical Life: over 10,000 operations

•

Rating: 6A/125VAC, 3A/250VAC

Mechanical Specifications:

•

Mechanical Life: over 30,000 operations

Mouser

Type

Stock No.

SPDT

10TF232

SPDT

10TF240

SPDT

10TF245

DPDT

10TF270

DPDT

10TF275

()=Momentary Contact

Circuit

On-(On)

On-Off-(On)

(On)-Off-(On)

On-Off-(On)

(On)-Off-(On)

Miniature Toggle Switches

10TF232, 10TF240, 10TF245

10TF270, 10TF275

Available from Mouser Electronics

www.mouser.com

1-800-346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
