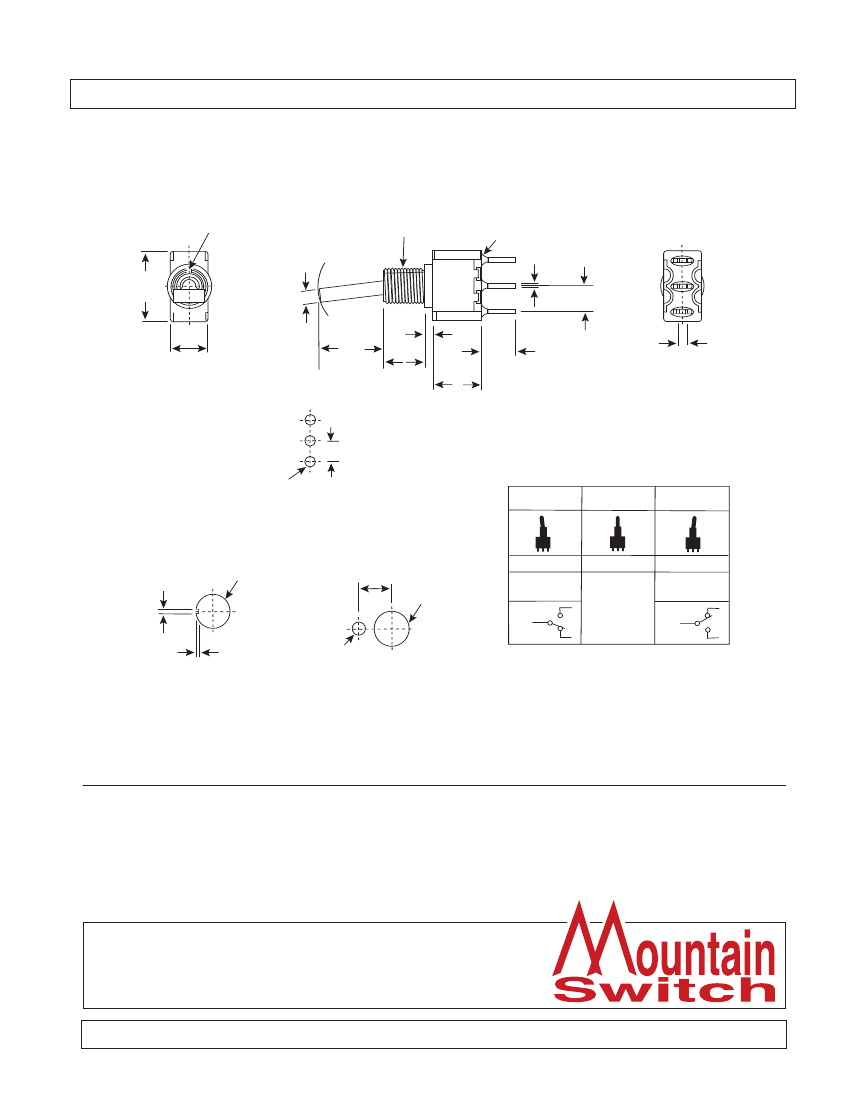

Last Update:
4-22-05
Dimensions: mm (In)
Ref. #:
MS-100312
KEYWAY
ø2.54
(ø.10)
12.7
(.50)
1/4-40 UNS-2A
EPOXY SEAL
.76 (.03)
3
2
1.44
(.057)
6.86
(.27)
11.43
(.45)
7.55
(.279)
8.89
(.35)
6.35
(.25)
4.70
(.185)
1.27
(.05)
1
4.70
(.185)
ø1.85 (ø.073)
POS.1
P.C. MOUNTING
SWITCH FUNCTION
POS.2
POS.3
ON
ø6.35 (ø.25)
6.10 (.24)
2-3
ø6.35 (ø.25)
1
2 Comm.
3
OFF
ON
2-1
OPEN
2 Comm.
1
3
.85 (.033)
.55 (.022)
Without locking ring.
ø2.38 (ø.094)
With standard locking ring.
PANEL MOUNTING
Electrical Specifications:
•
Electrical Life: 40,000 make-and-break cycles at full load
•
Contact Resistance: 10mΩ max. initial @ 2-4VDC 100mA
•
Insulation Resistance: 1,000MΩ min.
•
Dielectric Strength: 1,000 V RMS@ sea level
•
Rating: 2A/250VAC, 5A/120VAC or 28VDC
Mechanical Specifications:
•
Operating Temperature: -30°C to +85°C
Materials:
•
Case: Diallyl phthalate (DAP) (UL94v-0)
•
Acutuator: Brass, chrome plated.
•
Bushing: Brass, nickel plated.
•
Housing: Stainless steel.
•
Terminal/Contact: Silver or Gold plated.
Toggle Switch
108-1MS3T6B11M2QE
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
