334-10-140-00-050: DescriptionIC Socket, SIP40, 40 Contact(s); CategoryThe connector socket; File Size124KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

334-10-140-00-050 Overview

IC Socket, SIP40, 40 Contact(s)

334-10-140-00-050 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIP HEADER
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP40
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Manufacturer's serial number	334
Number of contacts	40
Base Number Matches	1

Preview

Download Datasheet

View All

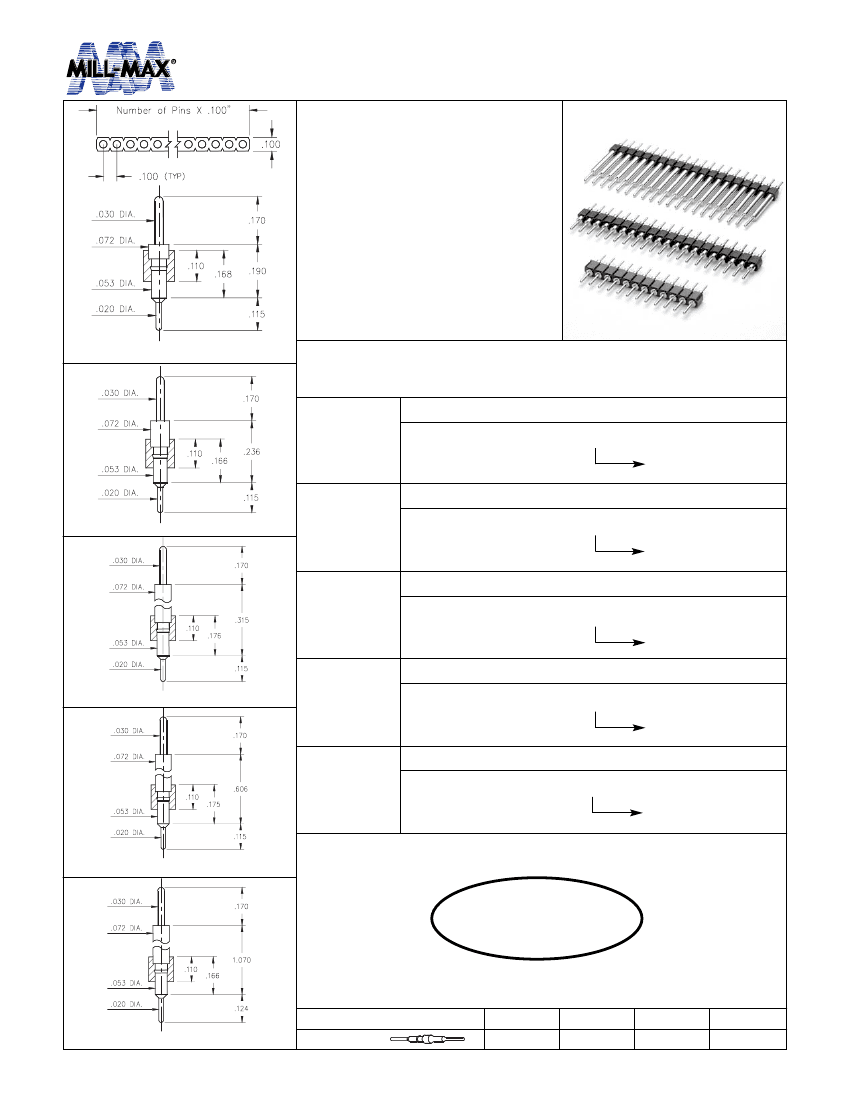

HEADER STRIPS

Interconnects

Single Row

•

Series 334 Interconnect strips

come in five lengths.

L = .190”

L = .236”

L = .315”

L = .606”

L = 1.080”

(M-M# 3402, 3401, 3405, 3400 &

3410. See page 173 for details).

•

Strips come with .020” pluggable

solder tails at one end and .030”

tails at the other.

Fig. 1

Series 334

Ordering Information

Series 334...020

.020 / .030 Solder Tails

334-XX-1_ _-00-020

Specify # of pins

01-64

Fig. 1

Fig. 2

Series 334...010

.020 / .030 Solder Tails

334-XX-1_ _-00-010

Specify # of pins

01-64

Fig. 3

Series 334...050

.020 / .030 Solder Tails

334-XX-1_ _-00-050

Specify # of pins

01-64

Fig. 3

Fig. 4

Series 334...000

.020 / .030 Solder Tails

334-XX-1_ _-00-000

Specify # of pins

01-64

Fig. 5

Series 334...100

.020 / .030 Solder Tails

334-XX-1_ _-00-100

Specify # of pins

01-64

Fig. 4

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10

10µ” Au

90

200µ”Sn/Pb

Fig. 5

Pin Plating

w w w. m i l l - m a x . c o m

60

516-922-6000
