ispGAL
®
22LV10
In-System Programmable Low Voltage
E
2
CMOS
®
PLD Generic Array Logic™
Features
• IN-SYSTEM PROGRAMMABLE
— IEEE 1149.1 Standard TAP Controller Port
Programming
— 4-Wire Serial Programming Interface
— Minimum 10,000 Program/Erase Cycles
• HIGH PERFORMANCE E CMOS TECHNOLOGY
— 4 ns Maximum Propagation Delay
— Fmax = 250 MHz
— 3 ns Maximum from Clock Input to Data Output
— UltraMOS
®
Advanced CMOS Technology
• 3.3V LOW VOLTAGE 22V10 ARCHITECTURE
— JEDEC-Compatible 3.3V Interface Standard
— 5V Tolerant Inputs and I/O
— I/O Interfaces with Standard 5V TTL Devices
2
®
Functional Block Diagram
A
D LL
IS
C DE
O
VI
N
TI CE
N
S
U
ED
12
Spe
Gra ed
de
4ns
New
I/CLK
RESET
8
OLMC
I/O/Q
I
10
I
OLMC
I/O/Q
I
OLMC
I/O/Q
PROGRAMMABLE
AND-ARRAY
(132X44)
I
14
OLMC
I/O/Q
I
16
OLMC
I/O/Q
• ACTIVE PULL-UPS ON ALL LOGIC INPUT AND I/O PINS
I
16
• COMPATIBLE WITH STANDARD 22LV10/22V10 DEVICES
— Function/Fuse-Map Compatible with 22LV10/22V10
Devices
— Parametric Compatible with 22LV10
• E
2
CELL TECHNOLOGY
— In-System Programmable Logic
— 100% Tested/100% Yields
— High Speed Electrical Erasure (<100ms)
— 20 Year Data Retention
OLMC
I/O/Q
I
14
OLMC
I
I/O/Q
12
I
OLMC
I/O/Q
I
10
OLMC
I/O/Q
• APPLICATIONS INCLUDE:
— DMA Control
— State Machine Control
— High Speed Graphics Processing
— Software-Driven Hardware Configuration
I
8
TDO
TDI
TMS
TCK
OLMC
I/O/Q
PROGRAMMING
LOGIC
PRESET
• ELECTRONIC SIGNATURE FOR IDENTIFICATION
Description
Pin Configuration
PLCC
TCK
The ispGAL22LV10 is manufactured using Lattice Semiconductor's
advanced 3.3V E
2
CMOS process, which combines CMOS with
Electrically Erasable (E
2
) floating gate technology. The
ispGAL22LV10 can interface with both 3.3V and 5V signal levels.
The ispGAL22LV10 is fully function/fuse map compatible with the
GAL
®
22LV10 and GAL22V10. Further, the ispGAL22LV10 is para-
metric compatible with the GAL22LV10. The ispGAL22LV10 also
shares the same 28-pin PLCC package pin-out as the GAL22LV10.
SSOP
I/CLK
I/O/Q
4
2
28
26
I/O/Q
Vcc
I
I
I
I
I
5
25
I/O/Q
I/O/Q
I/O/Q
TDO
7
TMS
ispGAL22LV10
Top View
23
Copyright © 1999 Lattice Semiconductor Corp. All brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject
to change without notice.
I/O/Q
I/O/Q
GND
TDI
Unique test circuitry and reprogrammable cells allow complete AC,
DC, and functional testing during manufacture. As a result, Lat-
tice Semiconductor delivers 100% field programmability and func-
tionality of all GAL products. In addition, 10,000 erase/write cycles
and data retention in excess of 20 years are specified.
I
I
I
9
21
I/O/Q
I/O/Q
11
12
14
16
19
18
I/O/Q
TCK
I/CLK
I
I
I
I
I
TMS
I
I
I
I
I
GND
1
28
7
ispGAL
22LV10
22
Top View
14
15
Vcc
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I/O/Q
TDO
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I
TDI
I
I
I
LATTICE SEMICONDUCTOR CORP., 5555 Northeast Moore Ct., Hillsboro, Oregon 97124, U.S.A.
Tel. (503) 268-8000; 1-800-LATTICE; FAX (503) 268-8556; http://www.latticesemi.com
December 1999
isp22lv_06
1
Specifications
ispGAL22LV10
Output Logic Macrocell (OLMC)
The ispGAL22LV10 has a variable number of product terms per
OLMC. Of the ten available OLMCs, two OLMCs have access to
eight product terms (pins 17 and 27), two have ten product terms
(pins 18 and 26), two have twelve product terms (pins 19 and 25),
two have fourteen product terms (pins 20 and 24), and two OLMCs
have sixteen product terms (pins 21 and 23). In addition to the
product terms available for logic, each OLMC has an additional
product-term dedicated to output enable control.
The output polarity of each OLMC can be individually programmed
to be true or inverting, in either combinatorial or registered mode.
This allows each output to be individually configured as either active
high or active low.
The ispGAL22LV10 has a product term for Asynchronous Reset
(AR) and a product term for Synchronous Preset (SP). These two
product terms are common to all registered OLMCs. The Asynchro-
nous Reset sets all registers to zero any time this dedicated product
term is asserted. The Synchronous Preset sets all registers to a
logic one on the rising edge of the next clock pulse after this product
term is asserted.
NOTE: The AR and SP product terms will force the Q output of the
flip-flop into the same state regardless of the polarity of the output.
Therefore, a reset operation, which sets the register output to a zero,
may result in either a high or low at the output pin, depending on
the pin polarity chosen.
Each of the Macrocells of the ispGAL22LV10 has two primary func-
tional modes: registered, and combinatorial I/O. The modes and
the output polarity are set by two bits (S0 and S1), which are nor-
mally controlled by the logic compiler. Each of these two primary
modes, and the bit settings required to enable them, are described
below and on the following page.
REGISTERED
In registered mode the output pin associated with an individual
OLMC is driven by the Q output of that OLMC’s D-type flip-flop.
Logic polarity of the output signal at the pin may be selected by
specifying that the output buffer drive either true (active high) or
inverted (active low). Output tri-state control is available as an in-
dividual product-term for each OLMC, and can therefore be defined
by a logic equation. The D flip-flop’s /Q output is fed back into the
AND array, with both the true and complement of the feedback
available as inputs to the AND array.
A
D LL
IS
C DE
O
VI
N
TI CE
N
S
U
ED
AR
D
Q
4 TO 1
MUX
CLK
Q
SP
2 TO 1
MUX

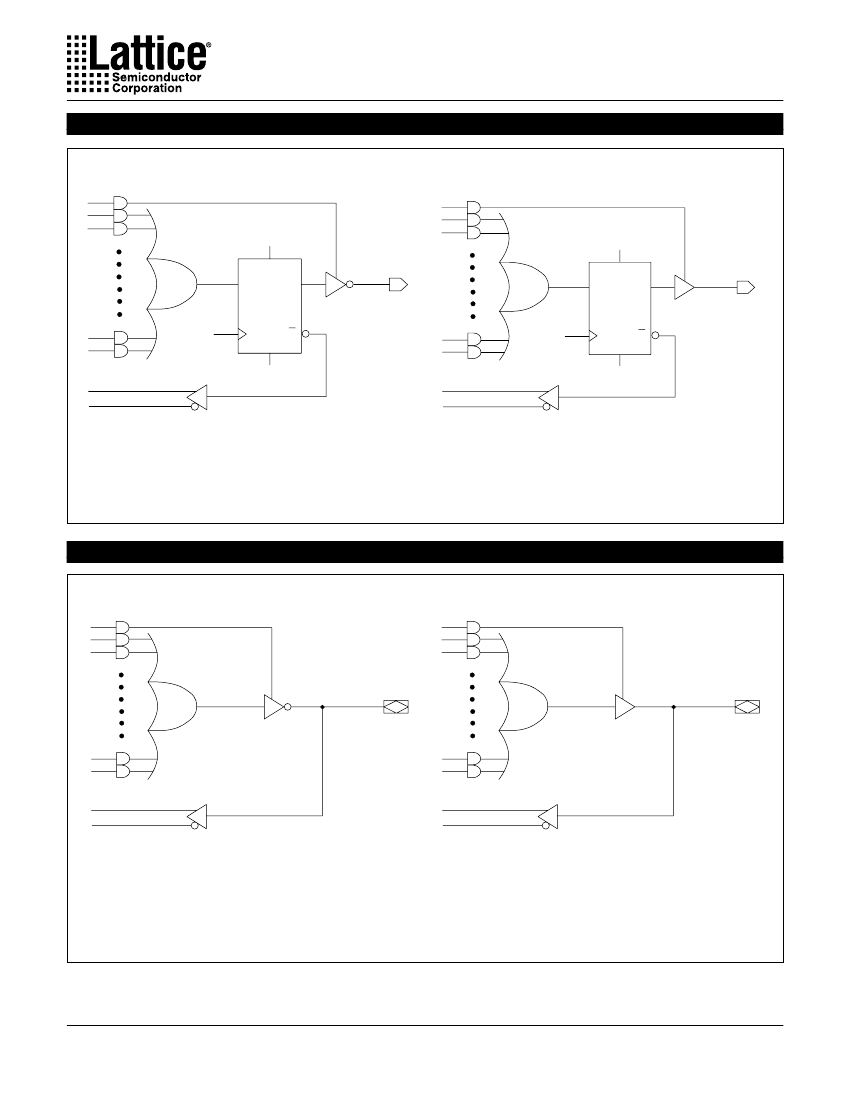

ispGAL22LV10 OUTPUT LOGIC MACROCELL (OLMC)
Output Logic Macrocell Configurations
NOTE: In registered mode, the feedback is from the /Q output of
the register, and not from the pin; therefore, a pin defined as reg-
istered is an output only, and cannot be used for dynamic
I/O, as can the combinatorial pins.
COMBINATORIAL I/O
In combinatorial mode the pin associated with an individual OLMC
is driven by the output of the sum term gate. Logic polarity of the
output signal at the pin may be selected by specifying that the output
buffer drive either true (active high) or inverted (active low). Out-
put tri-state control is available as an individual product-term for
each output, and may be individually set by the compiler as either
“on” (dedicated output), “off” (dedicated input), or “product-term
driven” (dynamic I/O). Feedback into the AND array is from the pin
side of the output enable buffer. Both polarities (true and inverted)
of the pin are fed back into the AND array.
3
