163-4311 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 163-4311

Preview

163-4311: DescriptionDC power connector pcb 1.7mm; CategoryThe connector; File Size148KB，1 Pages; ManufacturerKobiconn

Download Datasheet Parametric View All

163-4311 Overview

DC power connector pcb 1.7mm

163-4311 Parametric

Parameter Name	Attribute value
Maker	Kobiconn
Product Category	DC power connector
RoHS	no
product	Jacks
Contact inner diameter	1.7 mm
Contact outer diameter	4.75 mm
Current rating	2 A
Voltage rating	10.5 V
Installation angle	Vertical
Installation style	PCB
Center leg length	8.50 mm

Preview

Download Datasheet

View All

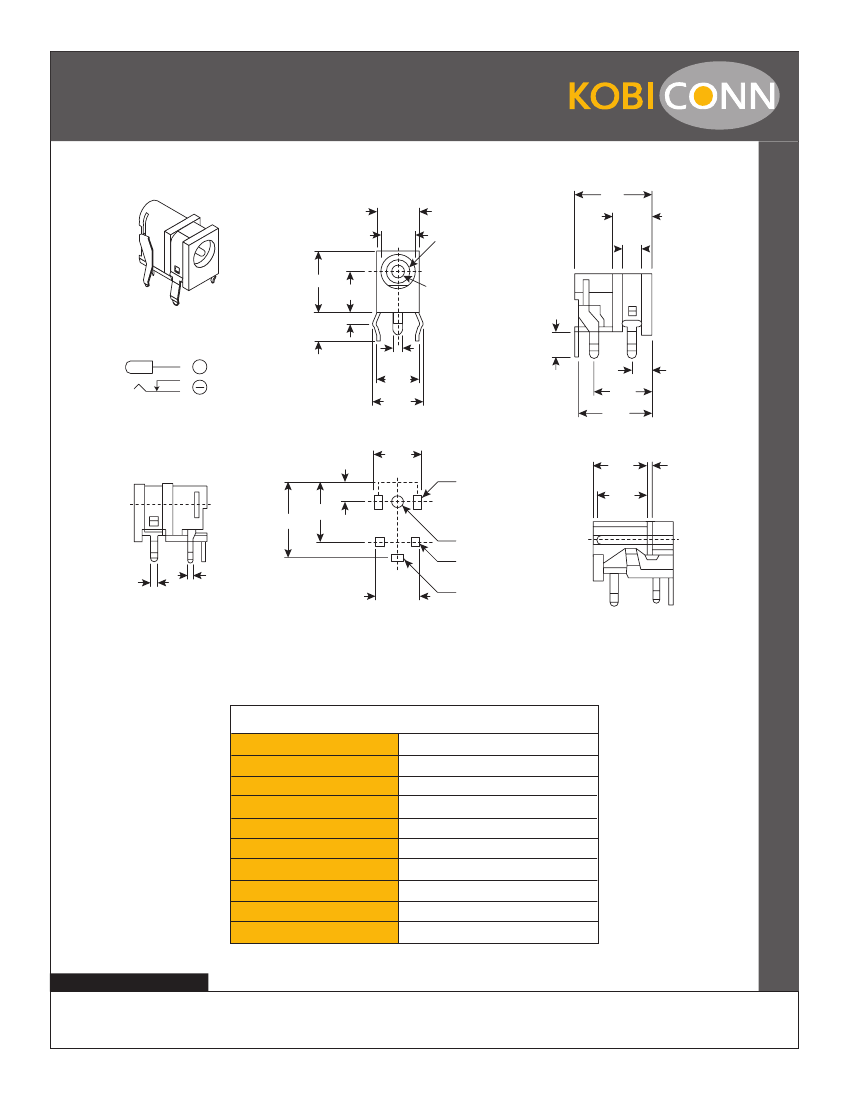

1.7mm PCB DC Jack

163-4311

1.7mm PCB DC Jack

.512

.299

.268

ø.203

.256

.130

.413

.276

.063

ø1.65mm

.150

.138

1

2

3

+

.051

.287

.350

.394

.492

.138

Circuit Diagram

.327

.335

.138

.492

.394

3

2

ø.063

.039 x .059

.059

.039

1

.295

.031 x .071

.039 x .079

.315

.039

DIMENSIONS: (In.)

(except where noted)

SPECIFICATIONS

Type:

Rated power:

Dielectric strength:

Insulation resistance:

Contact resistance:

Center and support terminals:

Terminals:

Body:

Center pin:

Spring:

1.7mm DC power

6.3VDC~10.5VDC @ 2A

500VAC for 1 minute

100MΩ min. @ 500VDC

30mΩ max.

tin plated brass

silver plated brass

PBT

163-4311

nickel plated brass

piano wire

Date Last Revised: 10-14-05

Available from Mouser Electronics

1-800-346-6873

www.mouser.com

KC-300383

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
