INTRODUCTION
This easy-to-use kit provides a platform for the evaluation
of PWM amplifier circuits using the SA07 pin-out. With ample
breadboarding areas it is flexible enough to analyze a multitude
of standard or proprietary circuit configurations. Critical con-
nections for power supply bypassing, compensation and current
limiting are pre-wired. Components not usually readily available
in engineering labs are provided. External connection to the
evaluation kit can be made via the terminals at the edge of the
circuit board. These terminal pads are suitable for standard
banana jacks or direct soldering of wires. The schematic is
shown in Figure 1.
ASSEMBLY

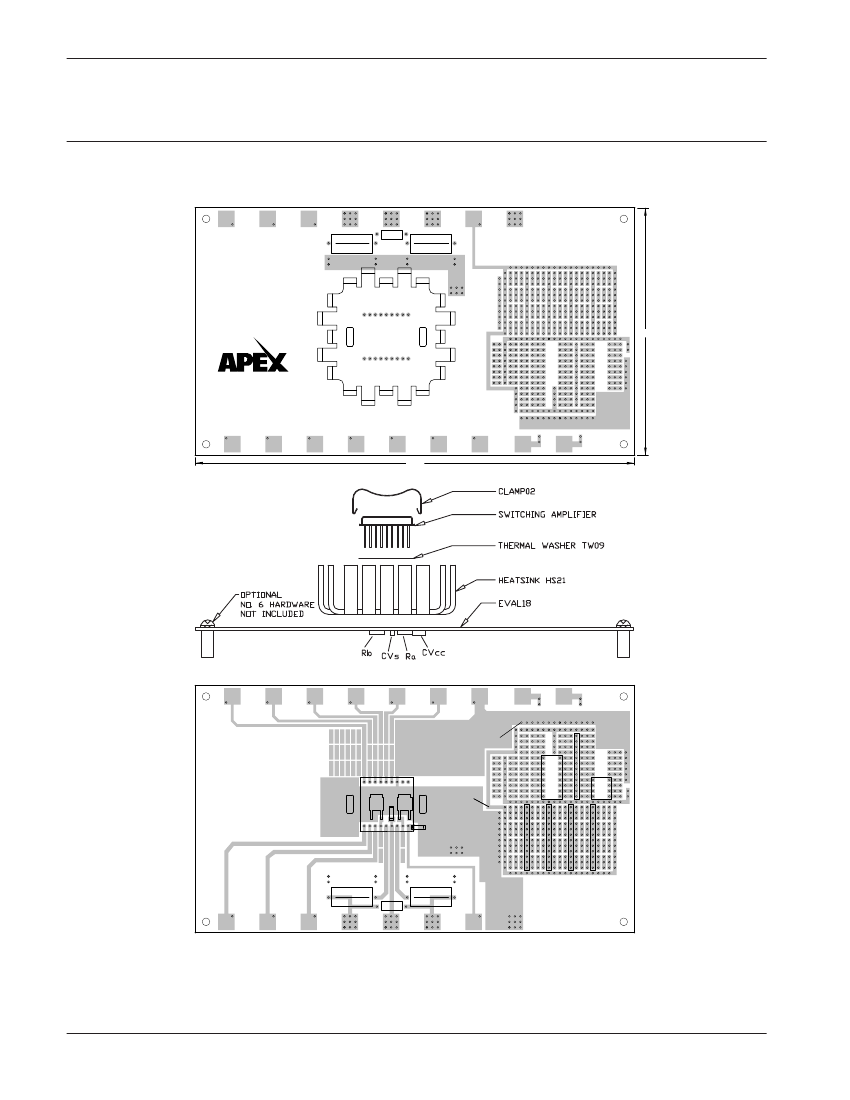

See Figure 3.
1. Solder the surface mount ceramic capacitors to the DUT side
of the circuit board at CVs and CVcc.
2. Select a current limiting resistor from the two values provided.
See the product data sheet for information on how to select a
value. Apply a thin coating of thermal grease to the back of
the resistors. Press the resistor body onto the circuit board
foil at positions Ra and Rb and solder the leads.
3. Assemble the amplifier, thermal washer and heat sink to the
circuit board as illustrated in Figure 1. As a last step push
the clip through the heat sink and circuit board until it locks.
Solder the amplifier pins to the circuit side of the circuit
board.
4. The four holes at the corners of the circuit board are for
mounting #6 standoff spacers if desired.
5. Add other components as necessary to complete your ap-
plication circuit.
PARTS LIST
Part #
CLAMP02
HS21
EVAL18
TWO9
OX7R105KWN
CRS01
CRS02
Description, Vendor
Mounting clip, Apex
Heat sink, Apex
PC Board, Apex
Thermal washer, Apex
Capacitor, Novacap
1825B105K201N
Resistor, Caddock
MP725-0.10-1%
Resistor, Caddock
MP725-0.05-1%
Quantity
1
1
1
1 Box/10 each
2
2
2
BEFORE YOU GET STARTED
* All Apex amplifiers should be handled using proper ESD
precautions.
* Always use thermal grease between the amplifier and heat-
sink.
* Always use adequate power supply bypassing.
* Do not change connections while the circuit is powered.
* Initially set all power supplies to the minimum operating levels
allowed in the device data sheet.
APEX MICROTECHNOLOGY CORPORATION • TELEPHONE (520) 690-8600 • FAX (520) 888-3329 • ORDERS (520) 690-8601 • EMAIL prodlit@apexmicrotech.com
1
EK07
FIGURE 1.
EVALUATION KIT
FOR SA07 PIN-OUT
½½
½½

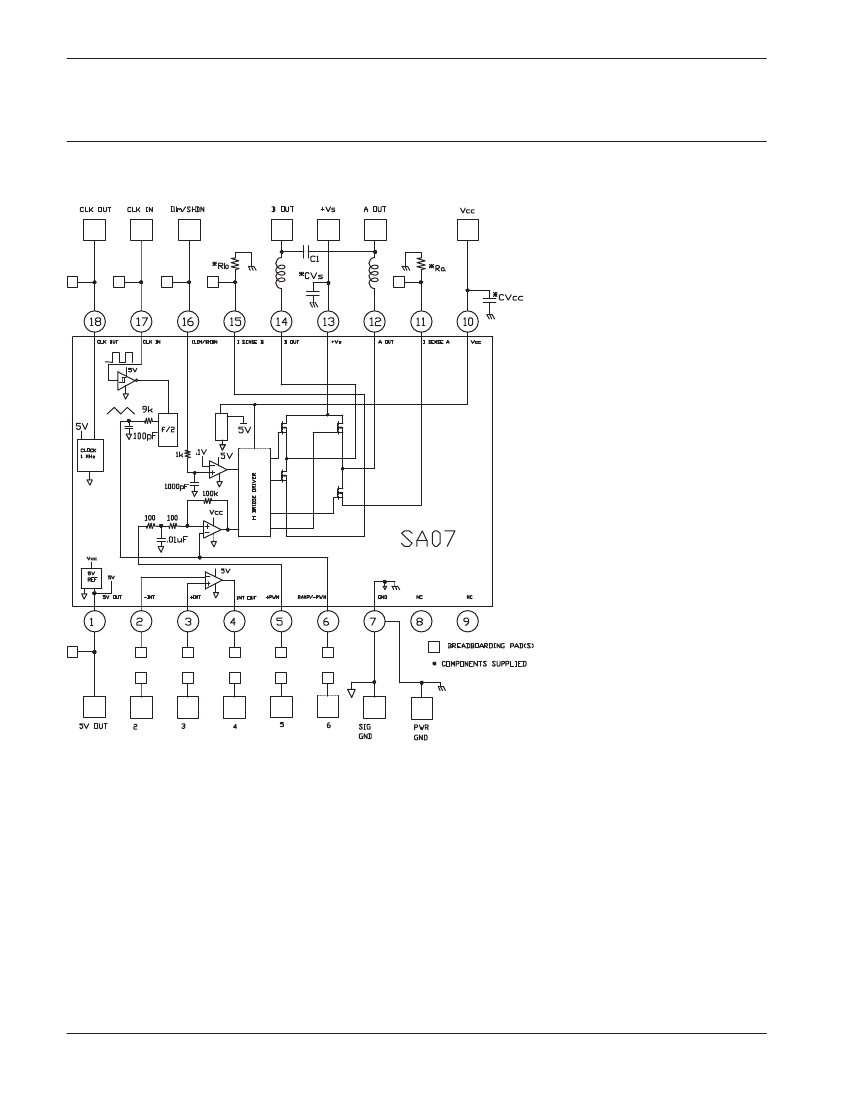

Figure 1 shows the schematic of the
evaluation kit's pre-wired connections
Components supplied with the kit are
marked with an asterisk (*). All other con-
nections are made via the bread-boarding
areas of the circuit board.
APEX MICROTECHNOLOGY CORPORATION • 5980 NORTH SHANNON ROAD • TUCSON, ARIZONA 85741 • USA • APPLICATIONS HOTLINE: 1 (800) 546-2739
2
EVALUATION KIT
FOR SA07 PIN-OUT
EK07
FIGURE 2.

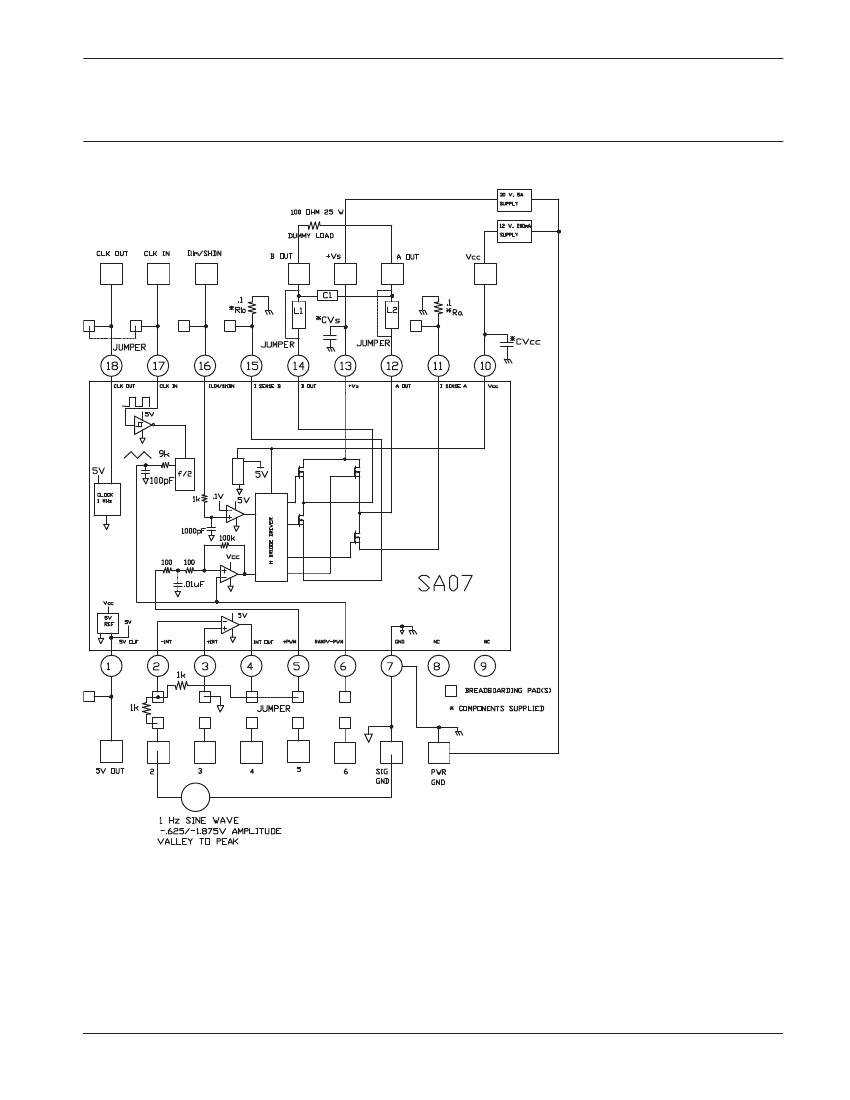

Figure 2 shows a suggested
