Evaluation Kit for MP108FD and MP111FD
INTRODUCTION
This easy-to-use kit provides a platform for the evaluation of
linear power amplifiers circuits using the MP108FD & MP111FD
pin out. With ample bread boarding areas it is flexible enough
to analyze a multitude of standard or proprietary circuit con-

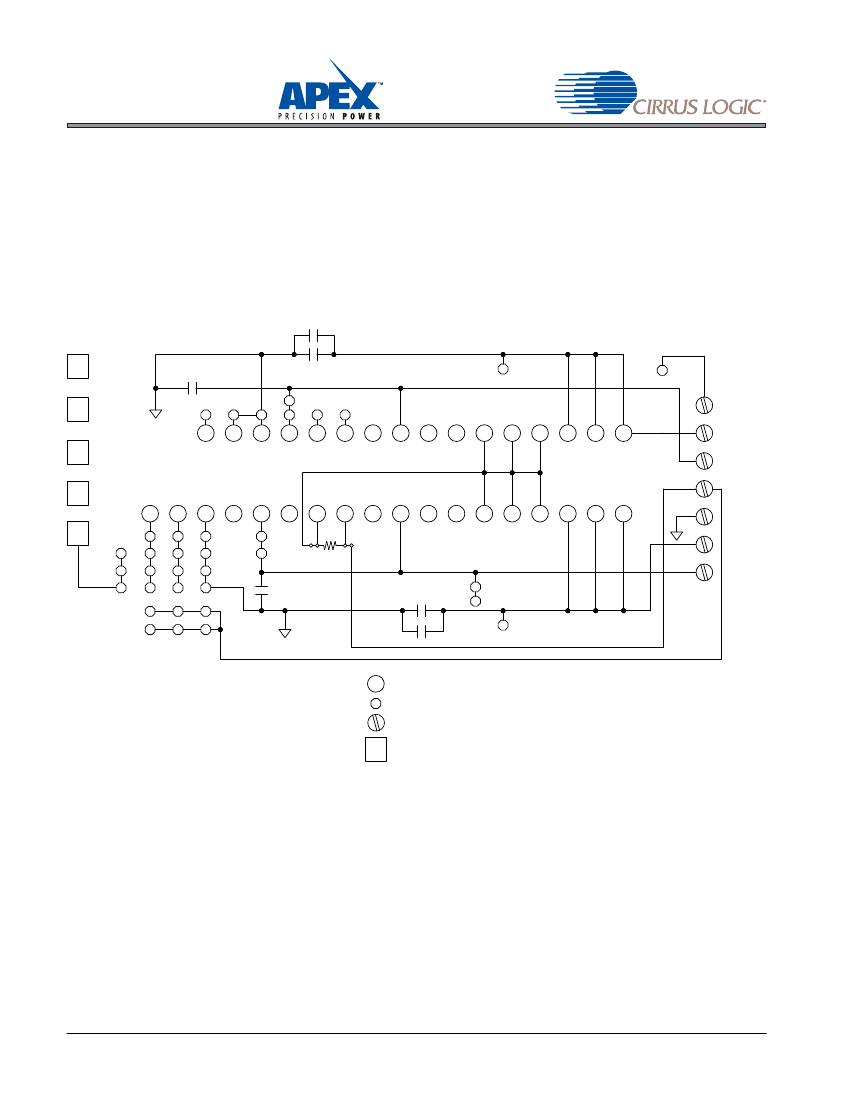

figurations. Critical connections for power supply bypassing
are pre-wired. Components not usually readily available in
engineering labs are provided. External connection to the
evaluation kit can be made via the terminal block and terminal
pads at the edges of the circuit board. The terminal pads are
suitable for soldering standard banana jacks or direct wiring
of wires. Additionally, banana jacks and a BNC connector can
be inserted into the holes at the edge of the board and wired
to the numbered terminal pads.
BEFORE YOU GET STARTED
• All Apex Precision Power amplifiers should be handled using
proper ESD precautions.
• Do not change connections while the circuit is powered.
• Initially set all power supplies to the minimum operating
voltage allowed in the device data sheet.
PARTS LIST
Ref
NA
NA
NA
NA
NA
Apex Part #
HS28
HS31
MS11
EVAL57
60SPG00004
Description/Vendor
Qty
Heat Sink
1
Heat Sink
1
Strip of 30 cage jacks
2
PC Board
1
Spacer Grommets/
4
Micro Plastics
1uF Cap/
4
Novacap
1825B105K201N
Terminal Strip
1
680uF 200V/
2
United Chemi-Con
KMH200VN681M25MX40T2
0.050 Ohm Resistor/
1
Isotek PBV-R050-1
0.100 Ohm Resistor/
1
Isotek PBV-R100-1
C1,4,5,6 OX7R105KWN
TS1
C2,3
RLIM*
RLIM*
TS02
EC03
CSR18
CSR19
ASSEMBLY

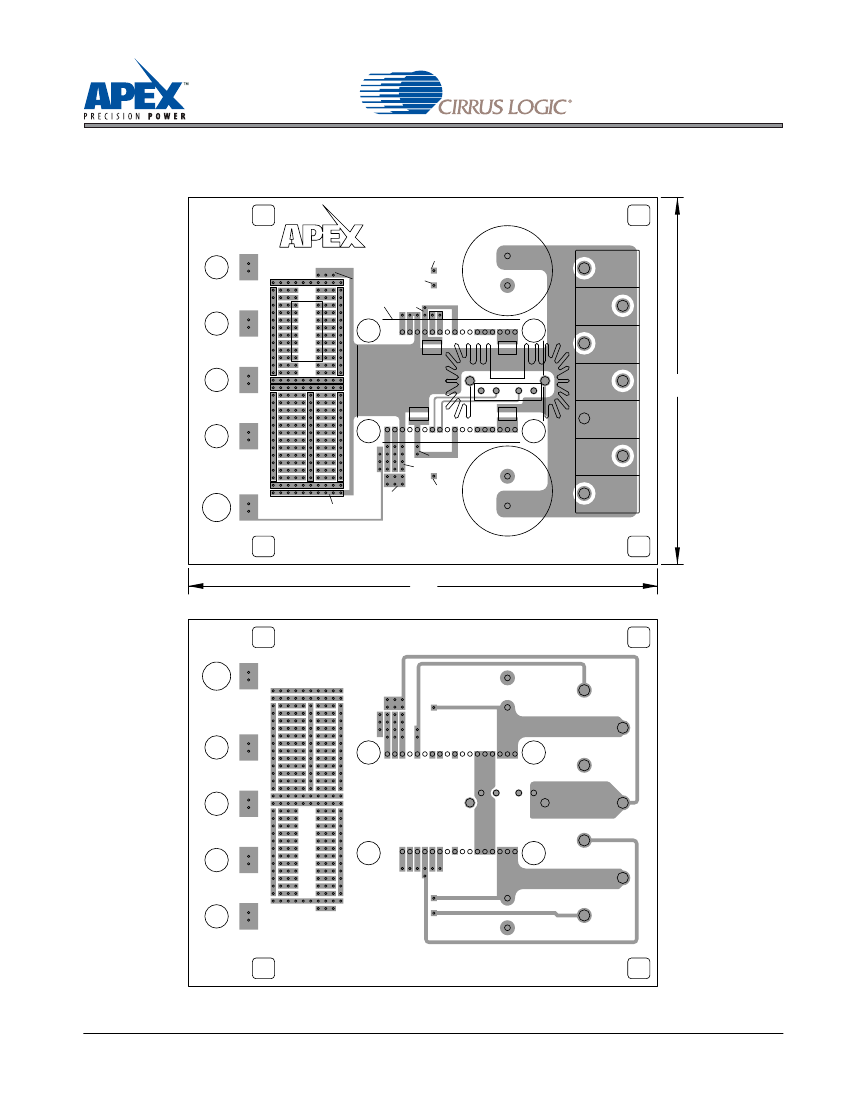

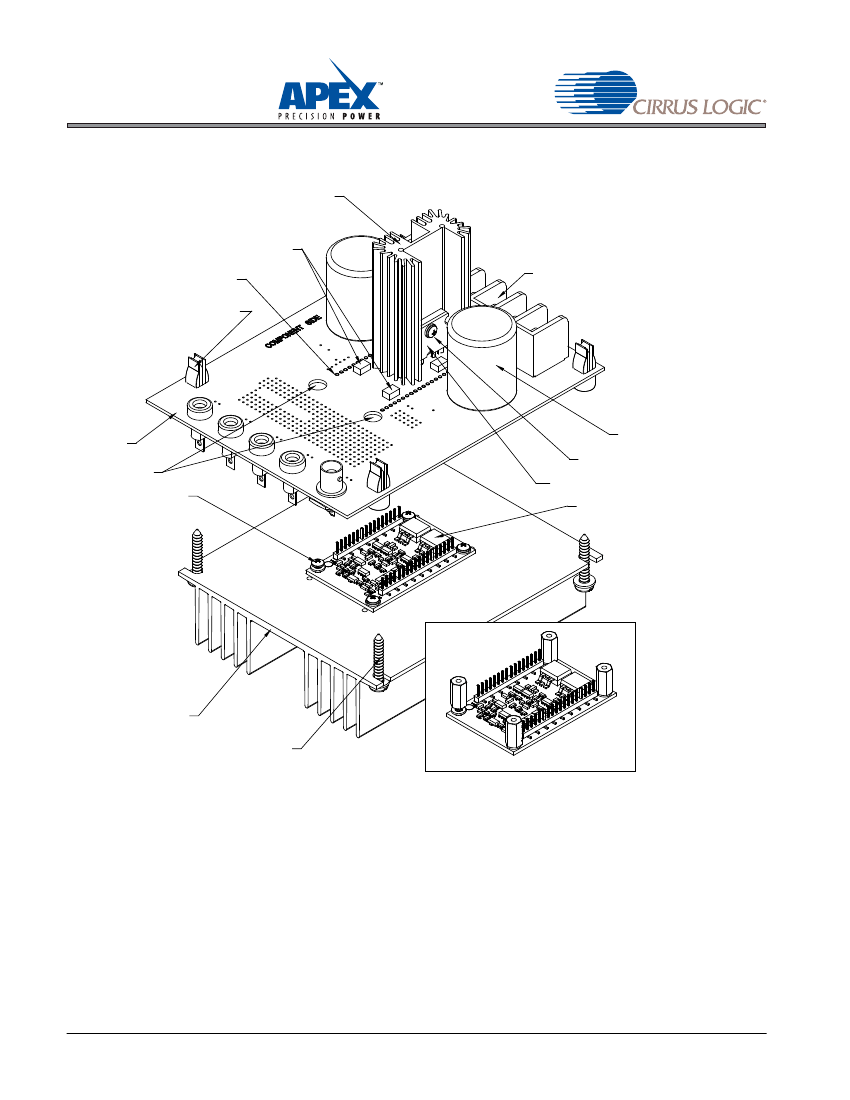

During assembly refer to Figure 2 and the data sheet for the
MP108FD & MP111FD.
1. Note that each side of the circuit board is identified as either
the "component side" or "DUT side".
2. Cut the MS11 into groups of 16 and 18 cage jacks and insert
from the "DUT side" of the board. On the "component side"
of the board, solder all cage jacks having solder pads (7, 9,
10, 23, 24, 26, 29, and 31 have no solder pads). Make sure
the cage jacks are fully seated before soldering. Be careful
that solder does not flow into the cage jacks. Remove the
unsoldered cage jacks with the carrier strip segments.
EK57U
http://www.cirrus.com
Copyright © Cirrus Logic, Inc. 2009
(All Rights Reserved)
MAY 2009
1
APEX − EK57UREVC
