MOUSER STOCK NO.
317-2200 Value
Potentiometers
3.5
(.138)
25±0.5
(.984±.02)
8.5
(335)
12.0
(.472)
7±0.2
(.276±.008)
8.0±0.2
(.315±.004)
11.0
(.433)
6.7
(.264)
10.0
(.394)
2.0
11.0
(.079)
(.433)
3.2
(.126)
ø6.0±0.1
4.5±0.1
(.236±.004)
(.177±.004)
317-2200 Value
8.7
(.343)
13
(.512)
3B Taper (Vol. Control) (Alpah: P)
100
90
Term. 1-2 Output Voltage
x100%
Term. 1-3 Input Voltage
80
70
60
50
40
30
20
10
0
0.7
(.028±.004)
Terminal Detail
Potentiometer
R1: 1
R2: 1
2
2
3
3
2
1
1
2
3
3
10 20 30 40 50 60 70 80 90 100
Rotation Travel (%)
Term "3"

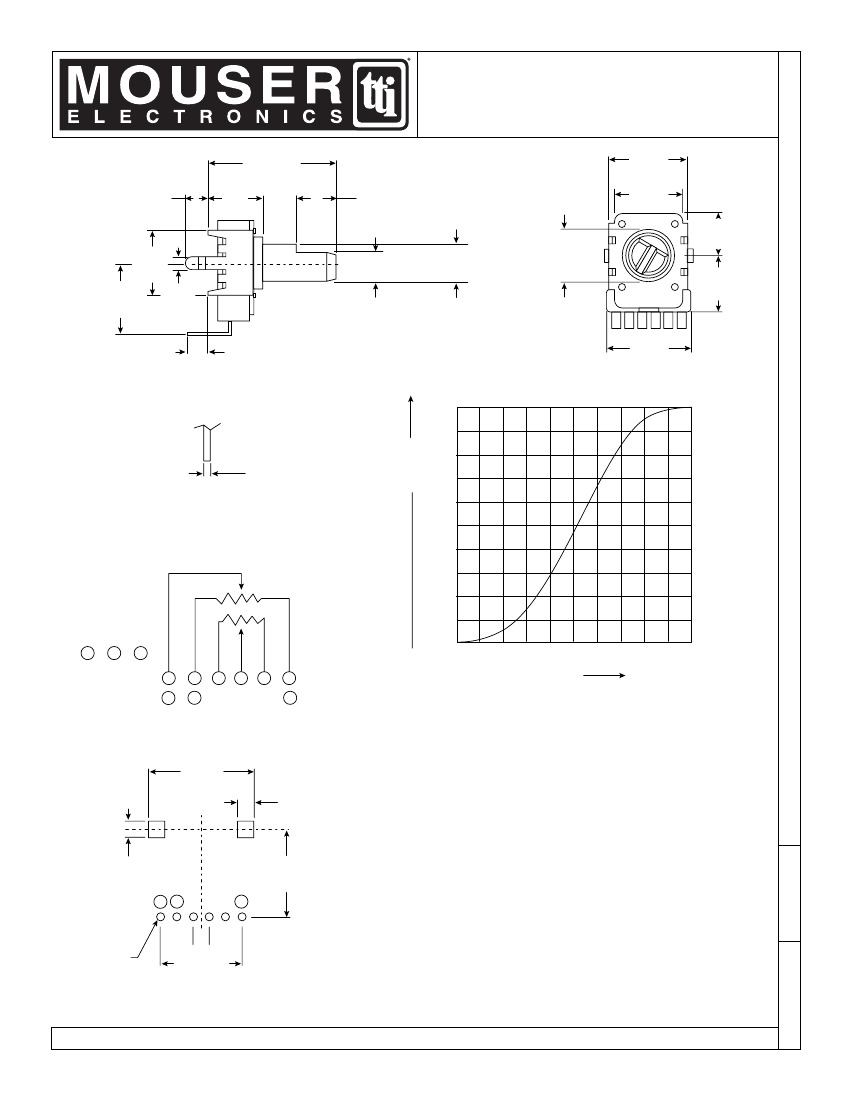

Dimensions: mm and (In.)
Specifications:
• Mechanical Characteristics:
Overall rotation angle: 300±5°
Operation torque: 20~200 gf-cm. (rotational speed 60°/1 sec)
• Electrical Characteristics:
Overall resistance range: KΩ~500KΩ (tollerance±20%)
Power rating: 0.05W
Taper: Linear
Rotation noise (refer to JIS): 100mV max. (W :250mV max)
Insulation resistance: 100MΩ min. at DC 250 volts
Dielectric test: Units shall be designed to withstand 300V AC
between resistance elements and case for a period of
one minute without damage or arcing.
Maximum operating voltage: 50V AC this potentiometer is
designed for AC voltage only.
• Endurance Characteristics:
Rotational life: More than 15,000 cycles
13.0
(.512)
2.0±0.1
(.079±.004)
8-
105154
2.1±0.1
(.083±.008)
2 1 1 2 3 3
2
2x5=10
11.0
(.433)
6-ø1.0±0.2
(.039±.008)
Date:
9/14/03
P.C.B. Mounting Hole Detail
