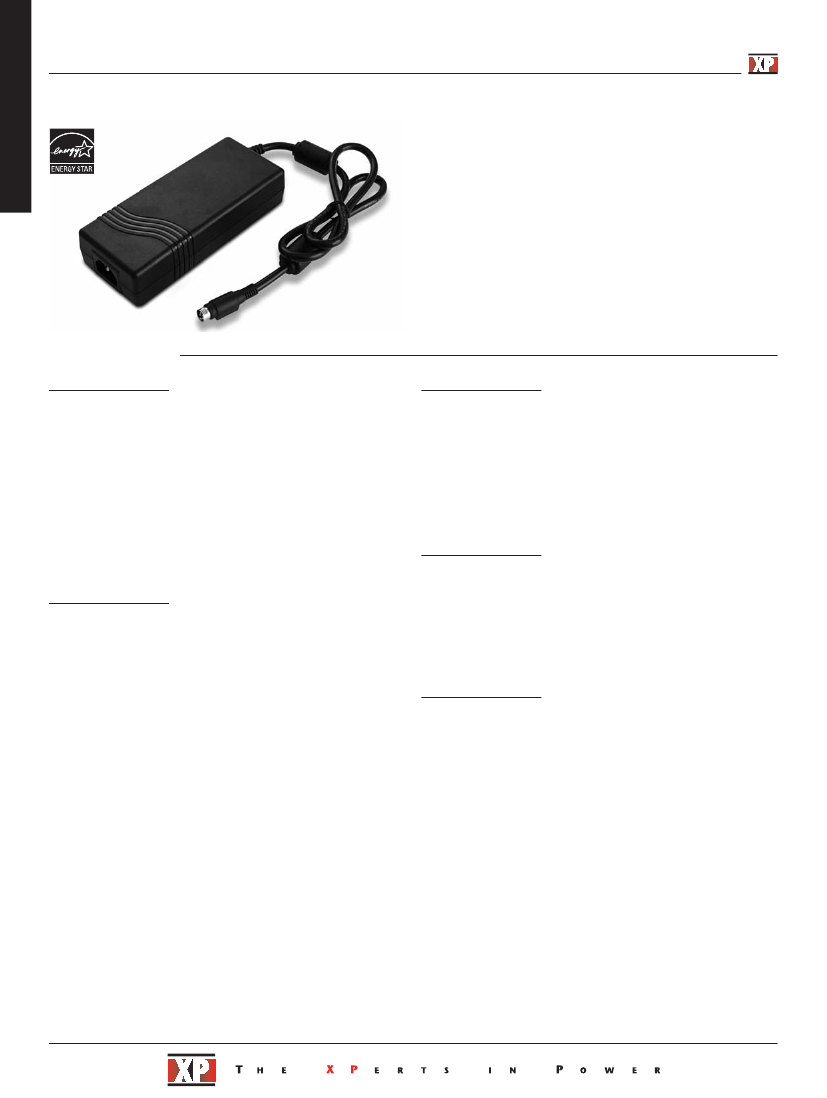

AC-DC
180 Watts
AML180 Series
•
•
•
•
•
•
•
Energy Star Level V
xppower.com
CEC2008 & EISA2007 Compliant
High Power Density
Single Outputs from 18 V to 48 V
High Efficiency
0 °C to +70 °C Operating Temperature
Non-standard Connectors Available
Specification
Input
Input Voltage
Input Frequency
Input Current
• 90-264 VAC
• 47-63 Hz
• 2.5 A rms at 115 VAC,
1.25 A rms at 230 VAC
Inrush Current
• 60 A at 115 VAC, 120 A at 230 VAC,
cold start +25 °C
Power Factor
• 0.95 typical
Earth Leakage Current
• 150 µA max at 115 VAC,
250 µA max at 230 VAC
Input Protection
• Internal 4 A fuse
Standby Power
• <0.5 W
Consumption
General
Efficiency
Isolation
• 87% min
• 3000 VAC Input to Output
1500 VAC Input to Ground
Output 0 V is electrically connected to
Input Earth
• 20-80 kHz variable
• 5.0 W/In
3
• >100 kHrs per MIL-HDBK-217F
(+25 °C ambient at full load)
Switching Frequency
Power Density
MTBF
Environmental
Operating Temperature
• 0 °C to 70 °C, derate from 100% power at
40 ºC to 60% power at 70 ºC
Operating Humidity
• 10-95% RH, non-condensing
Storage Temperature
• -20 °C to +80 °C
Operating Altitude
• 3000 m
Shock
• 30 g, 10 ms on 3 axes
Vibration
• 5-100 Hz, 2.31 m/s
2
, 20 mins, 3 axes
Output
Output Voltage
Output Voltage Trim
Initial Set Accuracy
Minimum Load
Start Up Delay
Hold Up Time
Line Regulation
Load Regulation
Transient Response
See table
Not user-adjustable
±2% maximum at 100% load
No minimum load required
3 s maximum at 100 VAC
5 ms minimum at 100 VAC
±0.5% maximum
See table
4% max. deviation, recovery to within
1% in 500 µs for a 25% load change
Ripple & Noise
• 2% max pk-pk (see note 1)
Overvoltage Protection
• 110-140% Vnom, recycle input to reset
Overtemperature
• Unit shuts down, recycle input to reset
Protection
Overload Protection
• 110-150%, auto recovery
Short Circuit Protection
• Trip and restart (Hiccup mode)
Temperature
• 0.04%/°C maximum
Coefficient
•
•
•
•
•
•
•
•
•
EMC & Safety
Emissions
Harmonic Currents
Voltage Flicker
ESD Immunity
Radiated Immunity
EFT/Burst
Surge
Conducted Immunity
Magnetic Field
Dips & Interruptions
• EN55022/FCC, Class B conducted
EN55022/FCC, Class B radiated
• EN61000-3-2
• EN61000-3-3
• EN61000-4-2, ±4 kV contact,
±8 kV air discharge Perf Criteria A
• EN61000-4-3, 3 V/m Perf Criteria A
• EN61000-4-4, level 2 Perf Criteria A
• EN61000-4-5, installation class 3
Perf Criteria A
• EN61000-4-6, 3 Vrms Perf Criteria A
• EN6100-4-8, 1A/m Perf Criteria A
• EN61000-4-11, 30% for 10 ms,
60% 100 ms, 100% 5000 ms,
Perf Criteria A, B, B
• EN60950, UL60950,
CSA22.2 No. 60950 per cUL, CE Mark
Safety Approvals
AC-DC
Models and Ratings
Output
Power
180 W
180 W
180 W
180 W
Notes
1. Ripple and noise measured at 20 MHz bandwidth with a 47 µF tantalum and 0.1 µF ceramic cap connected at the measurement point.
2. Total regulation includes initial set accuracy, line and load regulation.
3. For optional IEC320-C6 input connector, add suffix ‘C6’ to end of part number.
AML180
Output
Voltage
18 V
19 V
24 V
48 V
Output
Current
10.00 A
9.47 A
7.50 A
3.75 A
Total Regulation
(2)
5%
5%
5%
5%
Model
Number
(3)
AML180PS18
AML180PS19
AML180PS24
AML180PS48
Mechanical Details
Cable length approx 70.9” ±1.97” (1800mm ±50mm)
(4)
1 3
2
4
1.6
(40.7)
Power On Indicator
Rubber foot
(4 places.)
Pin
1
2
3
4
Shell
Function
Output +
Output +
Return/Input Earth
Return/Input Earth
Return/Input Earth
3.35 (85.0)
0.02
(0.5)
AC Input
IEC 320/C14 Inlet
Notes
1. Dimensions shown in inches (mm). Tolerance is 0.02 (0.5) maximum, except output cable length.
2. Weight: 1.89 lb (860 g).
3. Optional output connectors available. Consult sales.
4. Output connector (Kycon KPP-4P or equivalent) mates with Kycon KPJ-4S or equivalent.
6.69 (170)
05-Dec-08
