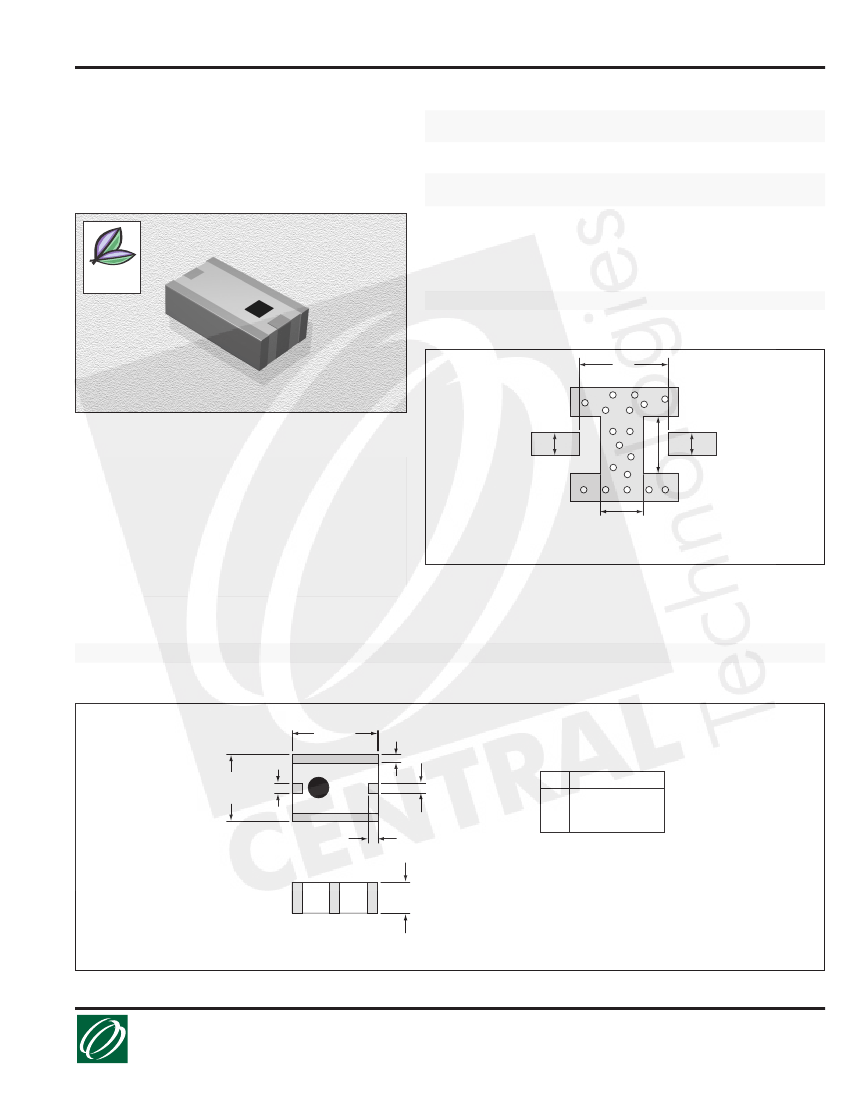

Multi-layer Band Pass Filters
ctparts.com
CTBPF2520F
Series
2.4 GHz
Not shown at actual size.
SPECIFICATIONS
Part Number
CTBPF2520T2450AF
CTBPF2520T2450BF
Frequency
(MHz)
2400-2500
2400-2500
Insertion
Loss (dB)
Max.
1.5
2
Attentuation
(dB)
Min.
25dB@1.85-1.91GHz
30dB@4.8-5GHz
25dB@1.75GHz
20dB@2.0GHz
27dB@4.8-5GHz
12dB@2.10GHz
25dB@3.2GHz
30dB@4.8-5GHz
30dB@7.2-7.5GHz
CTBPF2520T2450CF
2400-2500
2.5
Compliant
RoHS
PAD LAYOUT DIMENSIONS
Size
mm
inches
L
2.3±0.1
0.090±0.0039
W
1.4±0.1
0.055±0.0039
P1
0.76±0.1
0.030±0.0039
P2
0.76±0.1
0.030±0.0039
D
1.5±0.1
0.060±0.0039
L
CHARACTERISTICS
Description:
Multi-layer Chip Band Pass Filters
Applications:
2.4GHz ISM band WLAN and Bluetooth
Packaging:
Tape & Reel
Polarity Marking:
Marking is on the upper surface of the unit
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.
P1
W
P2
D
Ps: Line width
base
on 50Ω Impedance
PHYSICAL DIMENSIONS
Size
mm
inches
L
2.5±0.15
0.098±0.0059
W
2.0±0.15
0.078±0.0059
*T
0.75±0.15
0.029±0.0059
P1
0.6±0.2
0.023±0.0078
P2
0.6±0.2
0.023±0.0078
E1
0.3±0.15
0.012±0.0059
F1
0.3±0.15
0.012±0.0059
L
E1
W
P1
F1
P2
Port
P1
P1
E1
Remark
I/O Termination
I/O Termination
GND
*T
* For CTBPF2520T2450CF dimension T=0.90±0.15 mm / 0.035±0.0059 in.
02.16.07
Technologies
Manufacturer of Passive and Discrete Semiconductor Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2007 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
