154-10428 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 154-10428

154-10428: Descriptionhdmi/displayport/dvi connector 19 pin recpt RA smt; CategoryThe connector; File Size109KB，1 Pages; ManufacturerKobiconn

Download Datasheet Parametric View All

154-10428 Overview

hdmi/displayport/dvi connector 19 pin recpt RA smt

154-10428 Parametric

Parameter Name	Attribute value
Maker	Kobiconn
Product Category	HDMI/DisplayPort/DVI Connector
Type	Female
Number of locations/contacts	19
Installation style	PCB
direction	Right Angle
Contact plating	Gold
color	Black
Contact material	Copper Alloy
Voltage rating	40 Volts
Contact rating	0.5 Am
Termination type	Solde

Preview

Download Datasheet

View All

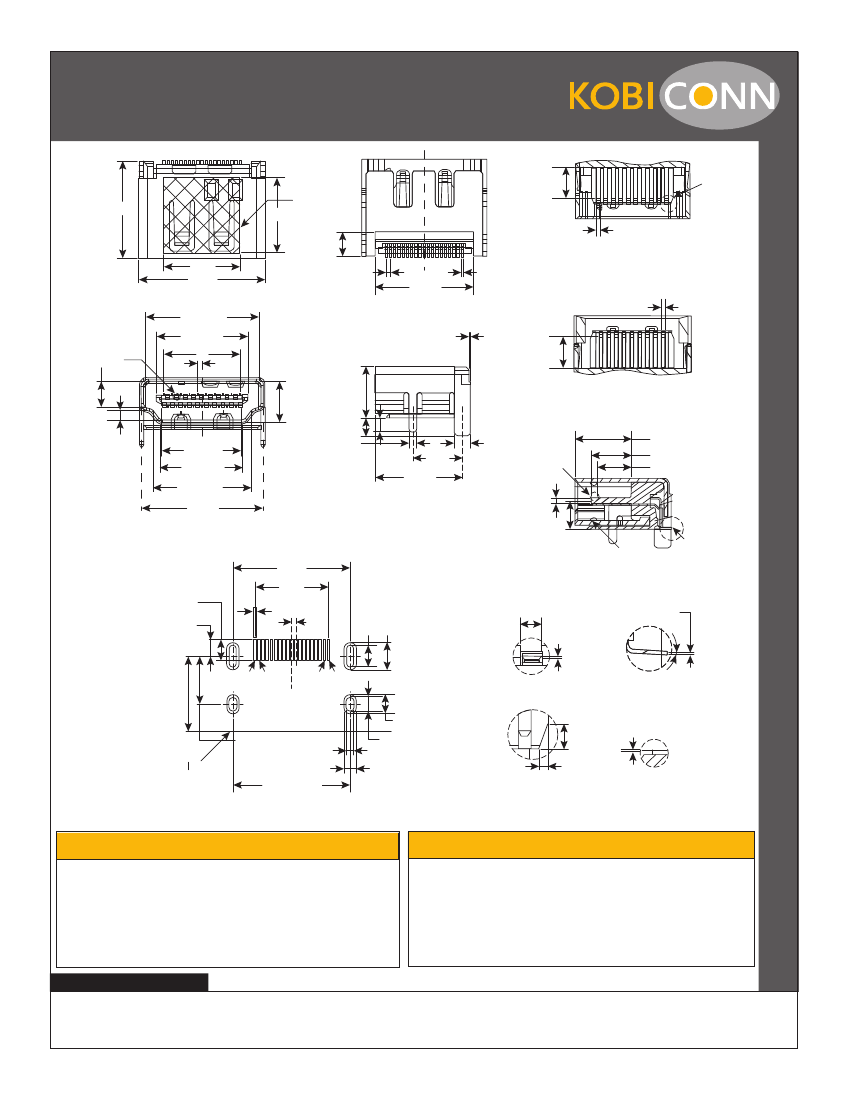

HDMI Receptacle, Type A Right

Angle SMT

154-10428-E

HDMI Receptacle, Type A Right Angle SMT

4.10±0.15

11.55

Mylar

9.0

0.45

2.90

SECTION A-A

9.0

15.00

14.0

+0.05

-0.04

3.0

+0.1

-0

0.50±0.05

11.72

0.22

0.45

0.10

-0.2

+0.1

10.8±0.1

(Pitch)

0.50

+0.05

-0.04

4.10±0.15

4.55

6.08

1.80

2x2.00

5.96

10.55

(Contact)

0.9±0.05

3.3 REF

SECTION B-B

6.8±0.2

4.8±0.1

4.1

1.25

-0.1

9.4

+0.05

-0.1

9.85

+0.1

-0

12.05

+0.1

-0

14.50

2.20

2x1.00

2-2.70±0.05

Recommended PCB Layout (Component Side)

PCB Thickness = 1.60mm

14.50

9.00

2.50±0.05TYP

2.06±0.05TYP

0.28±0.03

0.50

2-3.30

+0.10

-0.0

Spring Property

for Locking

SECTION D-D

0.05

-0.03

+0.05

0.45

-0.05

0.06±0.03

+0.1

CKT.19

CKT.18 CKT.2

CKT.1

Detail C

Scale: 5:1

2-2.30

+0.10

-0.0

3.0°

Detail G

Scale: 3:1

0.06 min.

9.55±0.05

PCB Edge

5.96±0.05

4-0.90±0.05

4-1.50

-0.0

14.50±0.05

+0.10

2-1.70±0.05

1.0±0.1

0.35

-0.05

Detail F

Scale: 3:1

+0.1

Detail E

Scale: 3:1

Dimensions: mm

SPECIFICATIONS

CURRENT RATING: 0.5A AC/DC

VOLTAGE RATING: 40V AC/DC

CONTACT RESISTANCE: 30MΩ MAX

INSULATION RESISTANCE: 100MΩ MIN.

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC/MINUTE

RoHS Compliant

Date Last Revised: 01/9/09

MATERIALS

HOUSING: LCP, UL94V-0, BLACK

TERMINAL: COPPER ALLOY

TERMINAL PLATING: GOLD 30 ON CONTACT AND TIN 100 ON

SOLDER, ALL OVER NICKEL 80

SHELL: COPPER ALLOY

SHELL PLATING: TIN 100 ON SOLDER, ALL OVER NICKEL 80

RoHS Compliant

154-10428-E

Available from Mouser Electronics

1-800-346-6873 / www.mouser.com

KC-301232

Speciﬁcations are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
