832-10-070-20-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 832-10-070-20-001000

832-10-070-20-001000: DescriptionBoard Connector, 70 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size213KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

832-10-070-20-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	832-10-070-20-001000	-	-	View	Buy Now

832-10-070-20-001000 Overview

Board Connector, 70 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

832-10-070-20-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	832
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	70
Base Number Matches	1

Preview

Download Datasheet

View All

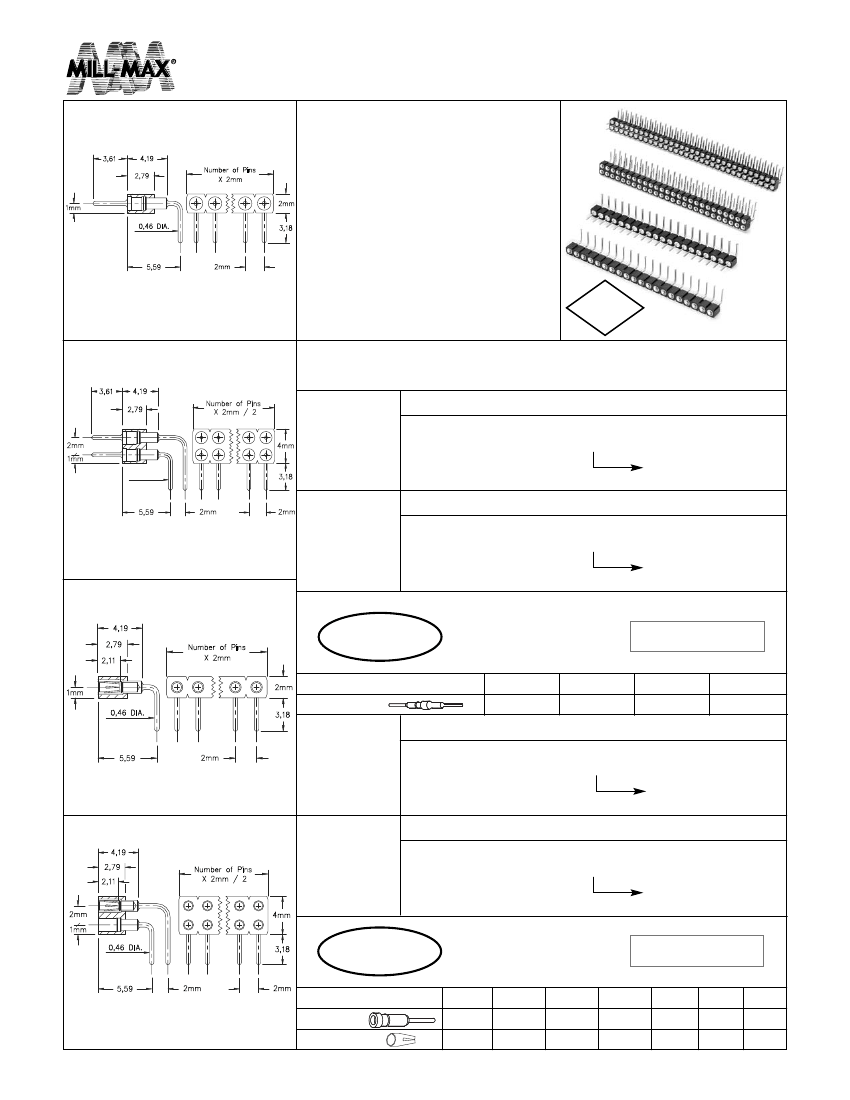

INTERCONNECTS

2mm Grid Right Angle Headers and Sockets

Single and Double Row

•

Series 830 & 832 use MM #3790 & MM

#3796 pins. See page 176 for details.

3,61

4,19

2,79

Number of Pins

X 2mm

2mm

0,46 DIA.

3,18

Series 830, 831,

832, 833

1mm

•

Series 831 & 833 use MM #1805 and

MM #3805 receptacles and accept pin

diameters from 0,38 - 0,64. See page

140 for details.

•

Receptacles use Hi-Rel, 6 finger BeCu

#32 contact rated at 3 amps. See page

219 for details.

•

Insulators are high temp. thermoplastic.

2002/95/EC

5,59

2mm

RoHS

Fig. 1

Ordering Information

3,61

4,19

2,79

Number of Pins

X 2mm / 2

830...001

4mm

Single Row Right Angle Header

830-10-0_ _-20-001000

2mm

1mm

0,46 DIA.

Fig. 1

832...001

3,18

Specify # of pins

01-50

5,59

2mm

Double Row Right Angle Header

832-10-_ _ _-20-001000

Fig. 2

Specify # of pins

002-100

4,19

2,79

2,11

Number of Pins

X 2mm

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

For RoHS compliance

select



plating code.

1mm

0,46 DIA.

2mm

3,18

PLATING CODE =



0,25μm Au



Pin Plating

831...001

5,59

2mm

Single Row Right Angle Socket

831-43-0 _ _-20-001000

Fig. 3

833...001

Fig. 3

Specify # of pins

01-50

Double Row Right Angle Socket

833-43-_ _ _-20-001000

4,19

2,79

2,11

Number of Pins

X 2mm / 2

Fig. 4

4mm

Specify # of pins

2mm

1mm

0,46 DIA.

3,18

002-100

For RoHS compliance

select



plating code.

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

5,59

2mm

PLATING CODE =



5,08µm Sn

0,76µm Au

Fig. 4

Sleeve (Pin)

Contact (Clip)

w w w. m i l l - m a x . c o m



516-922-6000
