0878-001-00702P datasheet, PDF

Datasheet> All Categories > The connector> The connector> 0878-001-00702P

0878-001-00702P: DescriptionRF SMA Connector; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

0878-001-00702P Overview

RF SMA Connector

0878-001-00702P Parametric

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknow
Connector type	RF SMA CONNECTOR
Manufacturer's serial number	0878-001-00702P
Base Number Matches	1

Preview

Download Datasheet

View All

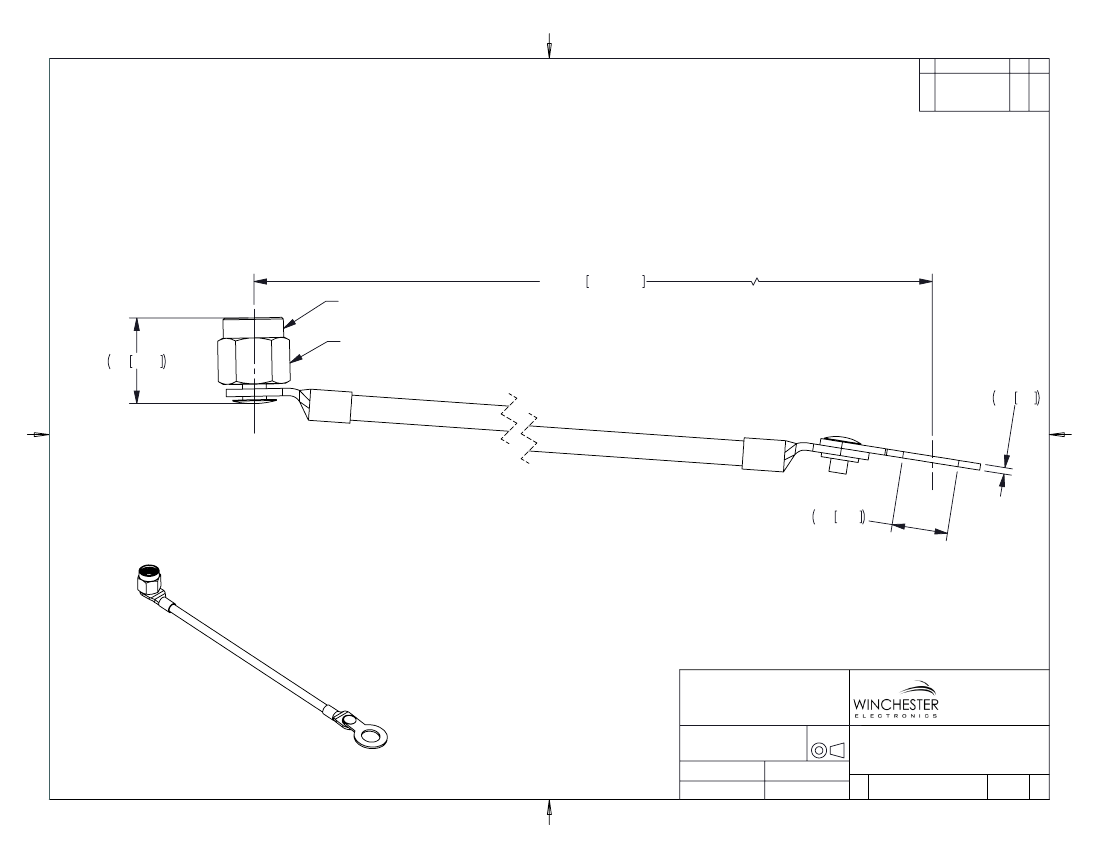

NOTES: UNLESS OTHERWISE SPECIFIED

1. MATERIAL SPECIFICATIONS:

GASKET: SILICONE RUBBER, A-A-58588

RETAINING RING: BERYLLIUM COPPER PER ASTM B196

ALL OTHER METAL PARTS: STAINLESS STEEL PER ASTM A583

3. FINISH SPECIFICATIONS:

ALL PLATED PARTS, PASSIVATE SAE-AMS-QQ-P-35 OR ASTM A967

REV

DESCRIPTION

APPD

DATE

KPL

02/02/12

DCAM

ER040084

4.500

±.250

114.30

±6.35

MARK: 0878-001-00702P(DATE CODE)

.312[7.92] HEX

.430 10.92

.032 .81

.280 7.11

CATALOG P/N: 0878-001-00702P

PER ASME Y14.5M-1994

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

DECIMAL: .XX [X.X] ± .01 [0.3]

.XXX [X.XX] ± .005 [0.13]

.XXXX [X.XXX] ± .XXXX

ANGLES: ± 2°

SCALE: X:X

Winchester Electronics Corporation

62 Barnes Industrial Road North

Wallingford, Connecticut 06492

CUSTOMER

SALES DRAWING

DRAWN

KPL

APPROVED

XXX

DMF029 B

THIRD

ANGLE

DATE APPROVED

02/02/12

DCAM

DATE APPROVED

XX/XX/XX XXX

DATE

02/02/12

DATE

XX/XX/XX

SMA, CAP & WIRE ROPE ASSY

(RoHS COMPLIANT)

SD0878-001-00702P

SHT

1 01

REV
