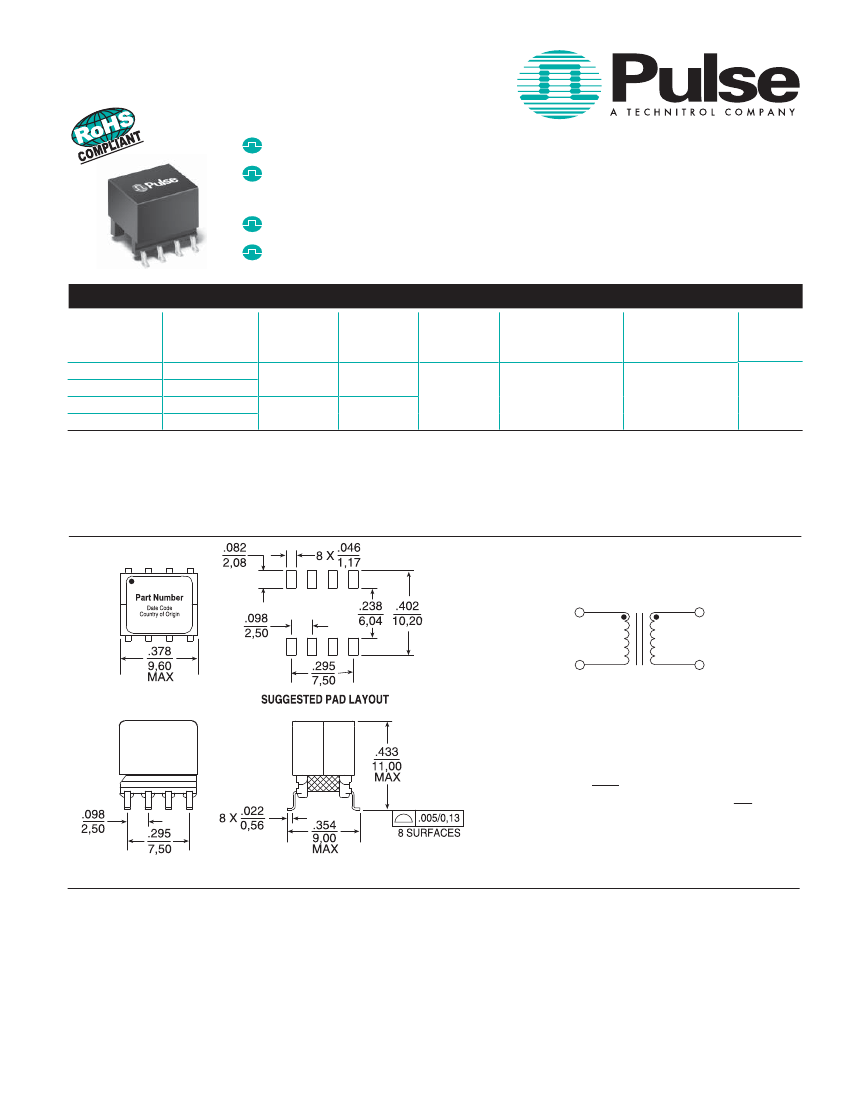

VDSL LINE TRANSFORMERS

For Use with Ikanos Chipset

Matched to Ikanos SmartLeap chipset

Both versions designed to meet IEC950 operational or supplementary

insulation requirements for working voltages up to 250 Vrms

Compact industry standard surface mount footprint

Extended temperature range

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

RoHS-5

Compliant

Part Number

BX4052W

—

RoHS-6

Compliant

Part Number

—

BX4082WNL

BX4090WANL

BX4091WANL

Turns Ratio

(Line:Chip)

3:1

3.5:1

OCL Line

(µH ±7%)

220

1.0

200

1.30

-80

1500

Leakage

Inductance

(µH MAX)

Insertion Loss

@80 kHz to 12.5 MHz

(dB MAX)

THD

@ 80 kHz, 4 Vp-p

(dB MIN)

Hi-Pot

(Vrms)

NOTES:

BX4052W and BX4091WANL are the supplementary insulation versions as per IEC950 for working voltage up to 250 Vrms.

BX4082WNL and BX4090WANL are the operational insulation versions as per IEC950 for working voltage up to 250 Vrms.

Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number, i.e. BX4082WNLT.

Mechanical

Schematic

LINE

CHIP

Weight

. . . . . . . . . . . . . . .1.8 grams

Tape & Reel

. . . . . . . . . . . . 300/reel

Tray

. . . . . . . . . . . . . . . . . . . 95/tray

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0.25

For More Information:

Pulse Worldwide

Headquarters

12220 World Trade Dr.

San Diego, CA 92128

U.S.A.

www.pulseeng.com

Tel: 858 674 8100

Fax: 858 674 8262

Pulse Europe

Zeppelinstrasse 15

D-71083 Herrenberg

Germany

Pulse China Headquarters Pulse North China

Room 2704/2705

Super Ocean Finance

Ctr.

2067 Yan An Rd. West

Shanghai 200336

China

Tel: 86 21 62787060

Fax: 86 2162786973

Pulse South Asia Pulse North Asia

135 Joo Seng Rd.

#03-02

PM Industrial Bldg.

Singapore 368363

3F, No. 198

Zhongyuan Rd.

Zhongli City

Taoyuan County 320

Taiwan R. O. C.

Tel: 886 3 4356768

Fax: 886 3 4356823

(Pulse)

Fax: 886 3 4356820

(FRE)

B402, Shenzhen Academy of

Aerospace Technology Bldg.

10th Kejinan Rd.

High-Tech Zone

Nanshan District

Shenzen, PR China 518057

Tel: 49 7032 7806 0

Tel: 86 755 33966678

Fax: 49 7032 7806 135 Fax: 86 755 33966700

Tel: 65 6287 8998

Fax: 65 6287 8998

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

www.pulseeng.com

B831.D (5/10)
