This document was generated on 11/11/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0877153305
Obsolete
1.00mm (.039") Pitch, PCI Express* Connector, 164 Circuits, Nylon 4/6 Glass-filled,
Black Housing, Phosphor Bronze, 0.38µm (15µ") Gold (Au) Plating, with Plastic Pegs,
3.00mm (.118") Soldertail
877159305
Replacement Part
Number:
Documents:
Drawing (PDF)
Series

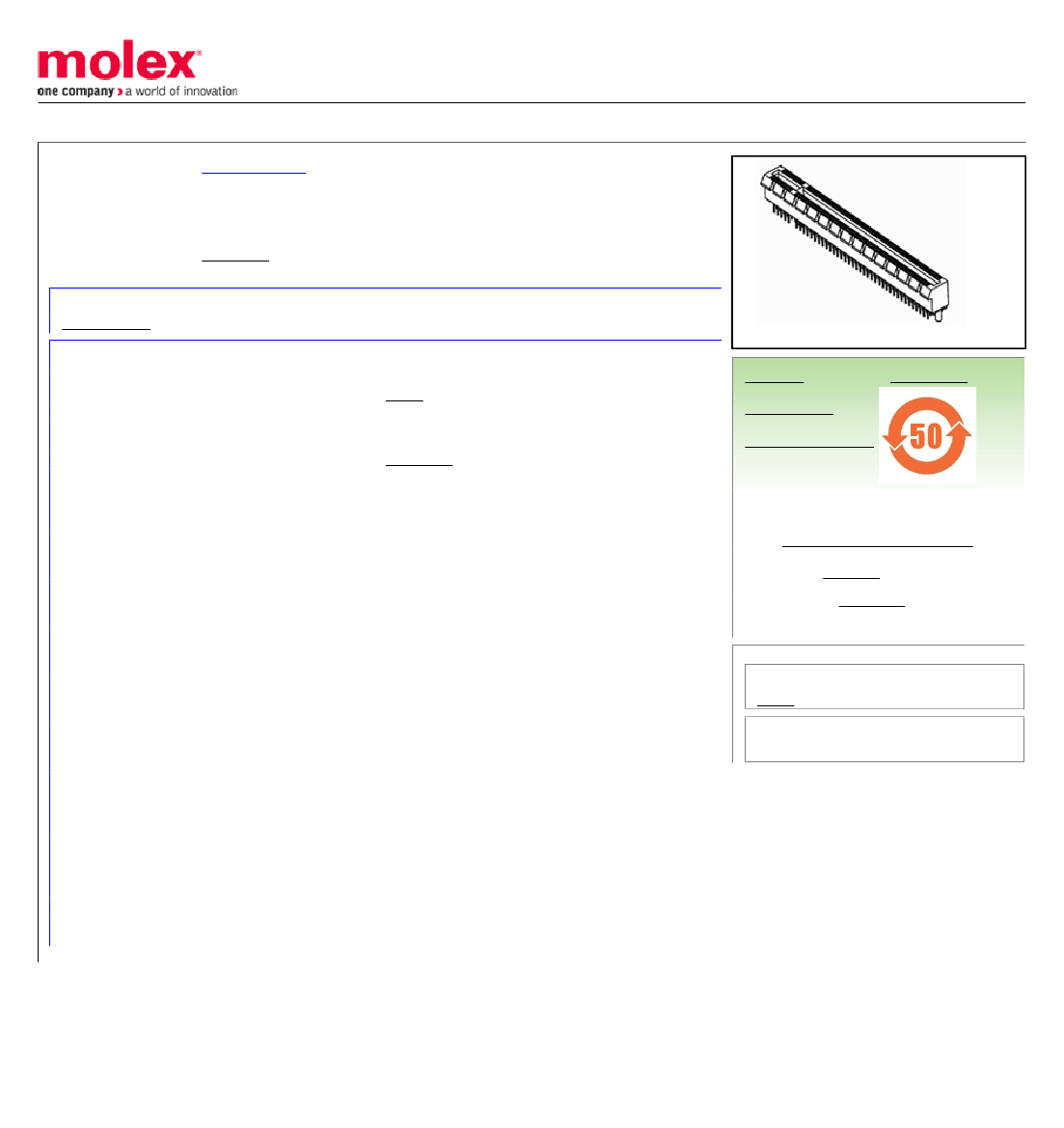

image - Reference only
General
Product Family
Series
Comments
Component Type
Product Name
Replacement Part Number
Edge Card Connectors
87715
PCI 16 lanes
Edgecard to PCB
PCI Express*
877159305
EU RoHS
Not RoHS Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Physical
(p)ower-(s)ignal Configuration
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Entry Angle
Keying to Mating Part
Material - Plating Mating
Material - Plating Termination
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
164s - 0p
164
164
50
Vertical (Top Entry)
Yes
Gold
Tin-Lead
3.00mm (.118")
Yes
Yes
2.40mm (.094")
Tray
1.00mm (.039")
1.00mm (.039")
0.381µm (15µ")
Yes
-55°C to +85°C
Through Hole
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
87715Series
Mates With
PCI Express Card
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.1A
50V AC (RMS)/DC
Solder Process Data
Replacement RoHS Compliant Part Number
0877159305
Material Info
* PCI Express is a registered trademark of PCI-SIG
