Part Number

Search

87715-3005

Description
pci express / pci connector pci edge card 36p pci express
CategoryThe connector    The connector
File Size36KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

87715-3005 Online Shopping

Suppliers Part Number Price MOQ In stock
87715-3005 - - View Buy Now

87715-3005 Overview

pci express / pci connector pci edge card 36p pci express

87715-3005 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMolex
Reach Compliance Codecompli
Other featuresPANEL MOUNTABLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationGOLD (15) OVER NICKEL (50)
Contact completed and terminatedTIN LEAD (100) OVER NICKEL (50)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number87715
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch1 mm
Termination typeSOLDER
Total number of contacts36
UL Flammability Code94V-0

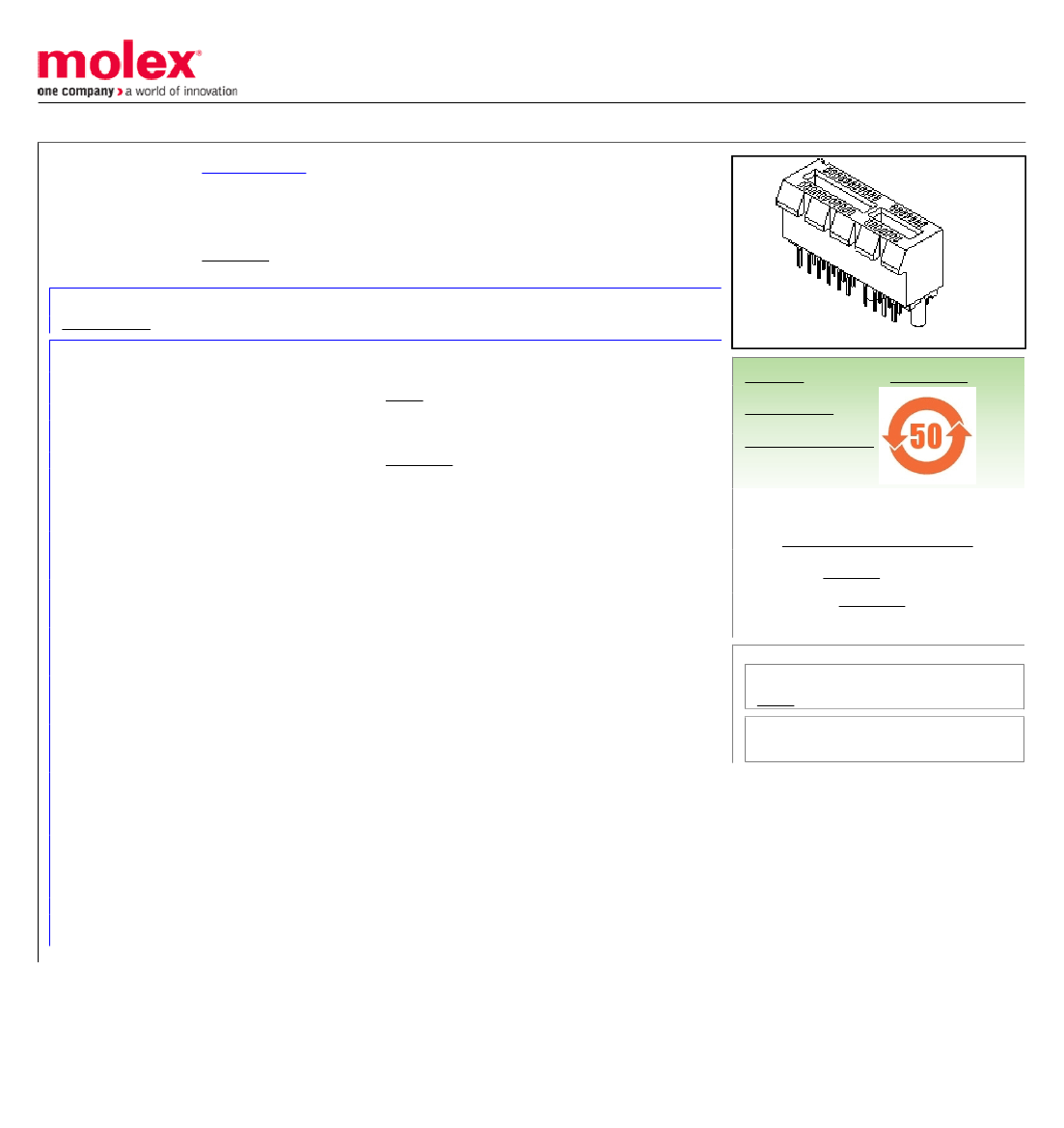

This document was generated on 11/11/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0877153005
Obsolete
1.00mm (.039") Pitch, PCI Express* Connector, 36 Circuits, Nylon 4/6 Glass-filled,
Black Housing, Phosphor Bronze, 0.38µm (15µ") Gold (Au) Plating, with Plastic Pegs,
3.00mm (.118") Soldertail
877159005
Replacement Part
Number:
Documents:
Drawing (PDF)
Series
image - Reference only
Edge Card Connectors
87715
PCI 1 lane
Edgecard to PCB
PCI Express*
877159005
EU RoHS
Not RoHS Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Low-Halogen
China RoHS
General
Product Family
Series
Comments
Component Type
Product Name
Replacement Part Number
Physical
(p)ower-(s)ignal Configuration
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Entry Angle
Keying to Mating Part
Material - Plating Mating
Material - Plating Termination
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
36s - 0p
36
36
50
Vertical (Top Entry)
Yes
Gold
Tin-Lead
3.00mm (.118")
Yes
Yes
2.40mm (.094")
Tray
1.00mm (.039")
1.00mm (.039")
0.381µm (15µ")
Yes
-55°C to +85°C
Through Hole
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
87715Series
Mates With
PCI Express Card
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.1A
50V AC (RMS)/DC
Solder Process Data
Replacement RoHS Compliant Part Number
0877159005
Material Info
* PCI Express is a registered trademark of PCI-SIG
This document was generated on 11/11/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
