ECM168
Product Features
•
1.9 GHz Power Amp Module
•
33.5 dB Gain
•
+ 34 dBm Linear Output Power
•
Single +10V Supply
•
No negative voltage required
•
Low cost metal package
•
MTTF > 100 Years
PHS +34 dBm 10V Module
Product Description
The ECM168 is a high performance PHS Amplifier
Module offering excellent linearity. The internally
matched multi-stage amplifier has 33.5 dB gain while
achieving +34 dBm linear output power to meet PHS’s
stringent ACLR requirements.
The ECM168 uses a high reliability InGaP/GaAs HBT
process technology and does not require any external
matching components. The module has an added benefit
by not require any negative biasing voltages; an internal
active bias allows the ECM168 to maintain high linearity
over temperature and operate directly off a single +10V
supply. A low-cost metal housing allows the device to
have a low thermal resistance and achieves over 100
years MTTF. All devices are 100% RF and DC tested.
The ECM168 is targeted for use as a driver amplifier in
wireless infrastructure where high linearity and high
power is required. This combination makes the device an
excellent candidate for next generation PAS base
stations.
Functional Diagram
1
2
3
4
5
6
Top View
Pin No.
1
2
3
4
5
6
Case
Function
RF Output
Vcc2
No Connect
Vcc1
No Connect
RF Input
Ground
Applications
•
PAS Base Stations
•
Repeaters
Specifications
(1)
Parameter
Frequency
Power Gain
ACLR (±600kHz)
ACLR (±900kHz)
Input VSWR
2
nd
Order Harmonic Distortion
3
rd
Order Harmonic Distortion
Supply Voltage
Operating Current
Symbol
f
Ga
Padj1
Padj2
2fo
3fo
Vcc1, Vcc2
Icc
Units
MHz
dB
dBc
dBc
dBc
dBc
V
mA
Min
1880 – 1920
32.2
Typ
33.5
-67
-69
-74
1.5
-50
-50
+10
1100
Max
34.8
-64
-70
Test Conditions
Pout = +34 dBm, Vd = 10V
Pout = +34 dBm, Vd = 10V, See note 2
Pout = +33.5dBm, Vd = 10V
Pout = +34 dBm, Vd = 10V
Pout = +34 dBm, Vd = 10V
Pout = +34 dBm, Vd = 10V
Pout = +34 dBm, Vd = 10V
Pout = +34 dBm, Vd = 10V
1000
1300
1. Test conditions unless otherwise noted: 25 ºC, Supply Voltage = +10 V, Output Power = +34 dBm, RF signal modulation is per PHS RCR-28.
2. The actual test limits performed by WJ correspond to an internal maximum ACLR specification of -65 dBc at +34 dBm output power.
Absolute Maximum Rating
Parameter
Storage Temperature
Input RF Power
Supply Voltage
-55 to +150
°C
+10 dBm
+10 V
Rating
Ordering Information
Part No.
ECM168
ECM168-PCB
Description
PHS +34 dBm 10V Module
Fully Assembled Evaluation Board
Operation of this device above any of these parameters may cause permanent damage
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com, www.TriQuint.com
Page 1 of 3 March 2008
ECM168
PHS +34 dBm 10V Module

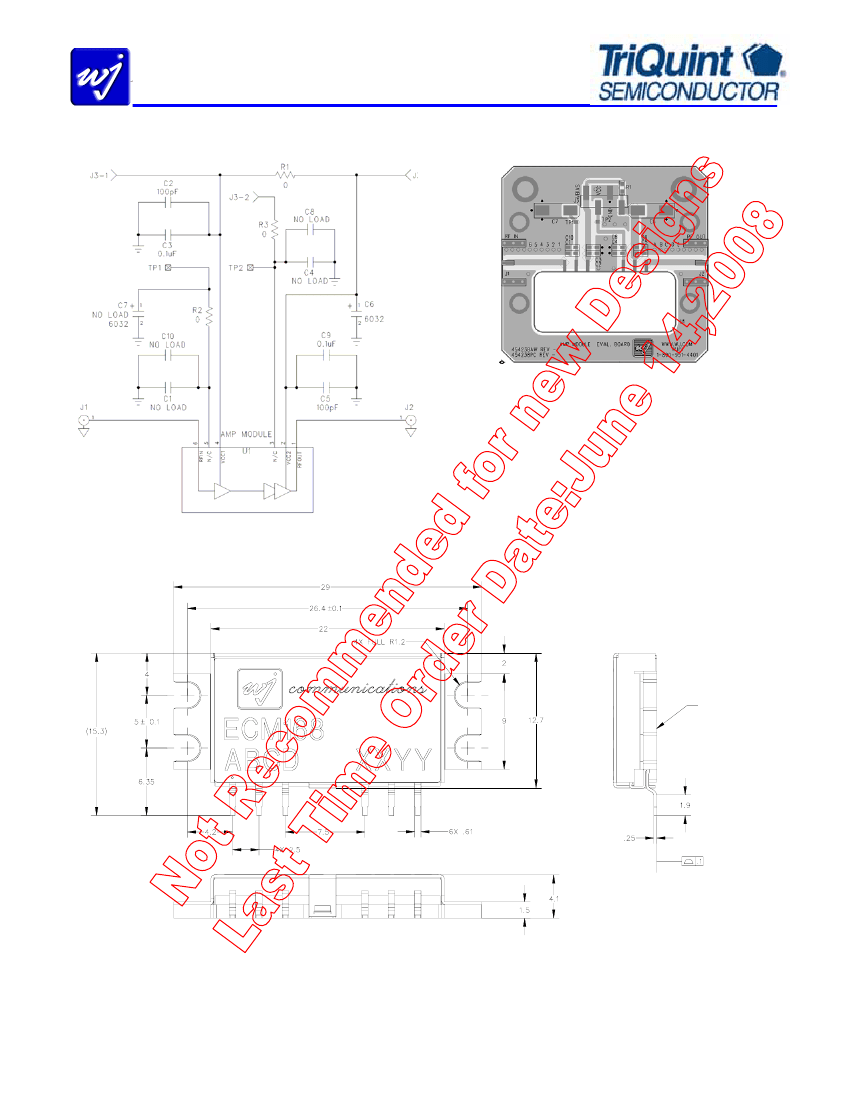

Recommended Application Circuit (ECM168-PCB)
NO L O A D
Notes:
1. Please note that for reliable operation, the evaluation board will
have to be mounted to a much larger heat sink during operation
and in laboratory environments to dissipate the power consumed
by the device. The use of a convection fan is also recommended
in laboratory environments.
2. The area around the module underneath the PCB should not
contain any soldermask in order to maintain good RF grounding.
Outline Drawing
PIN ASSIGNMENT
(1) RF Out, (2) Vcc, (3) N/C
(4) Vcc,
(5) N/C, (6) RF In
Case: GND
MOUNTING
SURFACE
2
3
4
5
6
APPLIES TO 6 LEADS AND
TO MOUNTING SURFACE.
DIMENIONS IN MM
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com, www.TriQuint.com
Page 2 of 3 March 2008
ECM168
Gain vs. Channel Power
1900 MHz, PHS Signal, 192 kHz BW
PHS +34 dBm 10V Module

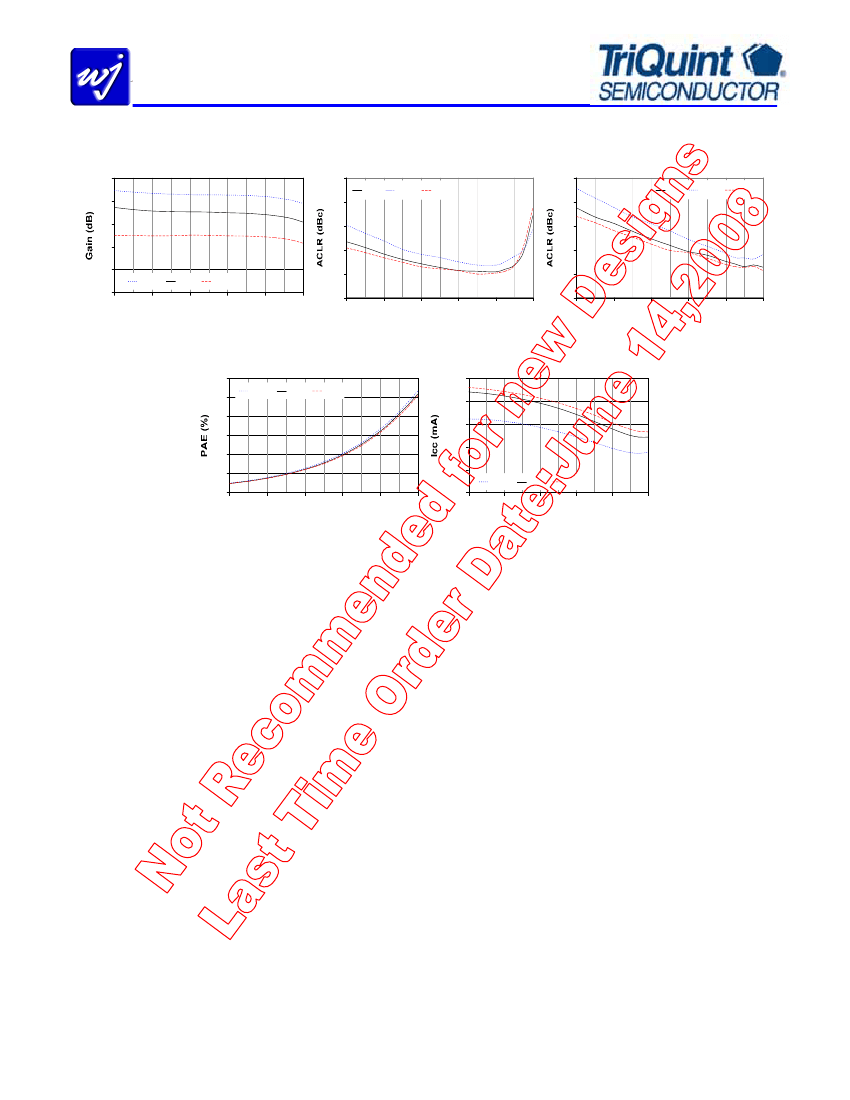

Performance Graphs
ACLR vs. Channel Power
1900 MHz, ±600 kHz offset, PHS Signal, 192 kHz BW
ACLR vs. Channel Power
1900 MHz, ±900 kHz offset, PHS Signal, 192 kHz BW
35
34
33
32
31
-35°C
25°C
55°C
-64
25°C
-66
-68
-70
-72
-74
-35°C
55°C
-68
25°C
-70
-72
-74
-76
-78
25
27
29
31
33
35
25
27
29
31
33
35
Output Channel Power (dBm)
Icc vs. Channel Power
1900 MHz, PHS Signal, 192 kHz BW
-35°C
55°C
30
25
27
29
31
33
35
Output Channel Power (dBm)
Output Channel Power (dBm)
Power Added Efficiency vs. Channel Power
1900 MHz, PHS Signal, 192 kHz BW
30
25
20
15
10
5
0
25
27
29
31
33
35
-35°C
25°C
55°C
1150
1100
1050
1000
950
-35°C
25°C
55°C
900
25
27
29
31
33
35
Output Channel Power (dBm)
Output Channel Power (dBm)
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com, www.TriQuint.com
Page 3 of 3 March 2008
