Series G3T
Toggles
Process Sealed Ultra-Miniature SMT Toggles
A
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
Logic Level:
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: See Supplement section for explanation of operating range.
Pushbuttons
Programmable Illuminated PB
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Angle of Throw:
80 milliohms maximum
500 megohms minimum @ 500V DC
500V AC minimum for 1 minute minimum
50,000 operations minimum
50,000 operations minimum
1.6N for momentary & 1.7N for maintained
28°
Keylocks
Materials & Finishes
Actuator:
Case:
Sealing Rings:
Movable Contacts:
Stationary Contacts:
Base:
Terminals:
Polyphenylene sulfide (UL94V-0)
Polyphenylene sulfide (UL94V-0)
Nitrile butadiene rubber
Phosphor bronze with gold plating
Phosphor bronze with gold plating
Polyphenylene sulfide (UL94V-0)
Phosphor bronze with gold plating
Slides
Rotaries
Environmental Data
Tactiles
Operating Temperature Range:
Humidity:
Vibration:
Shock:
–30°C through +85°C (–22°F through +185°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 500Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Tilt
Installation
Mounting:
Coplanarity:
It is recommended that the body of models for upright mounting without bracket be fastened to a
panel or similar support for protection of solder joints from mechanical stress.
See specifications in Terms & Acronyms in Supplement section
Touch
Processing
Soldering:
Cleaning:
Indicators
Reflow Soldering recommended. See Profile B in Supplement section.
Manual Soldering: See Profile B in Supplement section.
Automated cleaning. See Cleaning specifications in Supplement section.
Accessories
Standards & Certifications
Flammability Standard:
Supplement
UL94V-0 actuator, case & base
The G3T Series toggles have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current, logic-level circuit.
When used as intended in a logic-level circuit, the results do not produce hazardous energy.
A42
www.nkk.com
Process Sealed Ultra-Miniature SMT Toggles
Series G3T
A
Toggles
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Distinctive
Characteristics

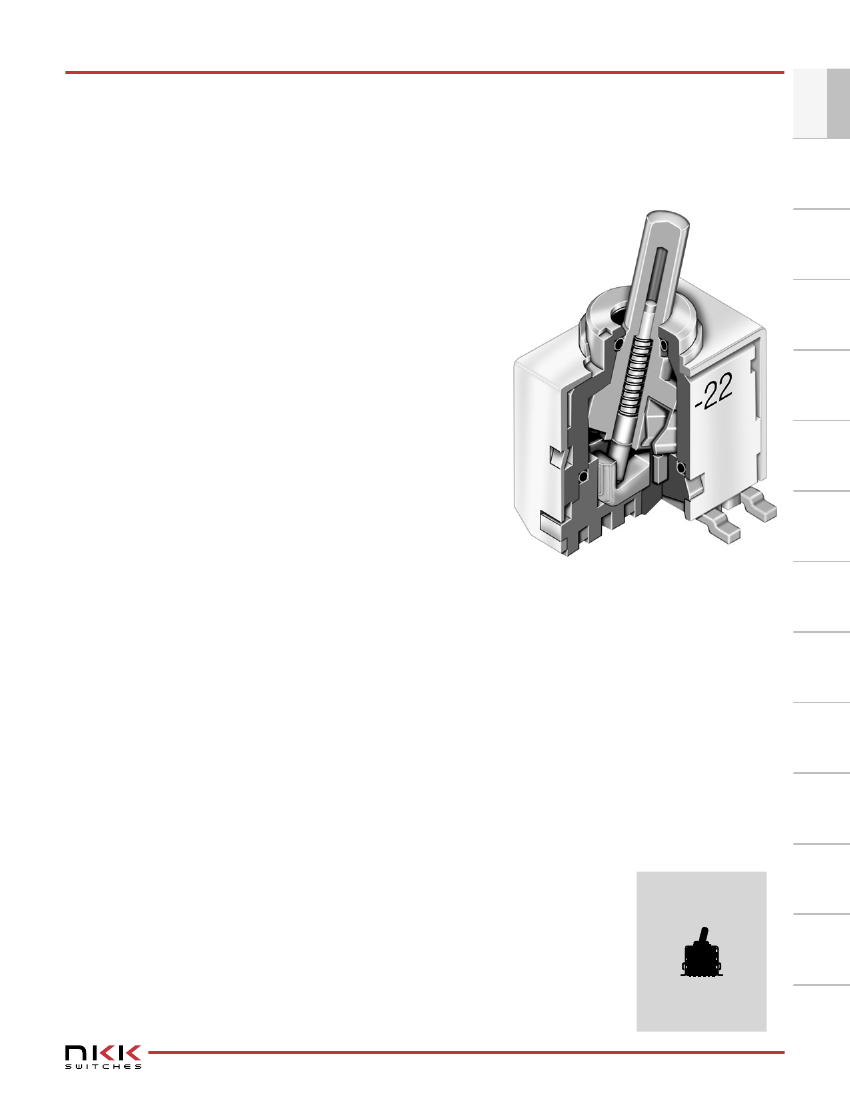

Ultra-miniature size allows high density mounting, and extremely light
weight of 0.6 gram makes these switches ideal for handheld equipment.
Tape-reel and stick-tube packaging allow rapid automated
placement of surface mount devices. Tape-reel packaging
meets EIA-481-2 Standard.
Heat resistant resin used for housing, base, and
lever allows vapor phase and infrared convection
reflow soldering.
Combination of design features achieves total seal and
allows automated processing techniques, including flux
cleaning procedures: one-piece bushing and housing,
rubber seals surrounding actuator and base, epoxy at
joint of case and base, and molded-in, epoxy-sealed
terminals.
Award-winning STC contact mechanism with benefits
unavailable in conventional mechanisms: smoother, positive
detent actuation, increased contact stability and unparalleled logic-level
reliability. (Additional STC details in Terms & Acronyms; see Supplement section.)
Gull-wing terminals provide mechanical stability during soldering and simplified solder
joint inspection.
Coplanarity: all considered surfaces must lie between two parallel planes that are a
maximum distance apart of .0059” (0.15mm). (Additional coplanarity details in Terms
and Acronyms in the Supplement section.)
Actual Size
www.nkk.com
A43
Series G3T
Toggles
Process Sealed Ultra-Miniature SMT Toggles
TYPICAL SWITCH ORDERING EXAMPLE
A
Pushbuttons
Rockers
G3T
Poles
1
2
SPDT
DPDT
1
2
A
A
Actuator
.150” (3.8mm)
Column Toggle
H
Packaging
R
Tape-Reel for
Right Angle Only
500 Pieces/Reel
Stick-Tube for
Upright Mount
50 Pieces/Stick
Partitioned Tray for
Upright & Right Angle
Any Quantity
Packaging details at
end of G3T Series
Programmable Illuminated PB
S
Circuits
2
3
5
8
9
ON
ON
ON
(ON)
ON
NONE
OFF
NONE
OFF
OFF
ON
ON
(ON)
(ON)
(ON)
P
B
H
Terminals
Gull Wing for Upright Mount
Gull Wing for Upright with Bracket Mount
Gull Wing for Right Angle Mount
No
Code
Keylocks
( ) = Momentary
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
Rotaries
G3T12AH
SPDT
ON-NONE-ON Circuit
.150” (3.8mm)
Column Toggle
Gull Wing Terminals for
Right Angle Mount
Slides
POLES & CIRCUITS
Tactiles
Toggle Position
( ) = Momentary
Up
Center
Down
Slot
Connected Terminals
Up
Center
Down
Throw & Schematics
Note:
Terminal numbers are
not actually on switch.
Tilt
Pole
Model
G3T12
G3T13
G3T15
G3T18
G3T19
G3T22
G3T23
G3T25
G3T28
G3T29
Slot
Touch
SP
ON
ON
ON
(ON)
ON
ON
ON
ON
(ON)
ON
NONE
OFF
NONE
OFF
OFF
NONE
OFF
NONE
OFF
OFF
ON
ON
(ON)
(ON)
(ON)
ON
ON
(ON)
(ON)
(ON)
5-6
OPEN
5-4
SPDT
4
5 (COM)
6
Indicators
DP
5-6 2-3
OPEN
5-4 2-1
DPDT
4
5
(COM)
6
1
2
3
Accessories
ACTUATOR
A
28°
Supplement
.150” (3.8mm) Column Toggle
(3.8)
.150
(1.7) Dia
.067
(4.0) Dia
.157
A44
www.nkk.com
Process Sealed Ultra-Miniature SMT Toggles
TYPICAL SWITCH DIMENSIONS
Single & Double Pole
(0.6) Typ
.024
(1.7) Dia
.067
(4.0) Dia
.157
(0.25) Typ
.010
Support Legs
(5.08)
.200
4
5
6
1
Series G3T
A
Upright Mounting
Rockers
Toggles
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
28°
(8.5)
.335
2
3
4
5
6
(8.5)
.335
Slot
(5.0)
.197
(3.8)
.150
(0.7)
.028
(1.5)
.059
(9.0)
.354
(0.5) Typ
.020
(0.1)
.004
(7.6)
.299
(7.6)
.299
(0.5) Typ
.020
G3T12AP
Single & Double Pole
(0.6) Typ
.024
(1.7) Dia
.067
(4.0) Dia
.157
(0.25) Typ
.010
Support Legs
(5.08)
.200
(3.8)
.150
4
5
6
Upright Mounting with Bracket
(3.8)
.150
1
4
5
6
(1.2) Typ
.047
(1.2) Typ
.047
28°
(11.0)
.433
2
3
(11.0)
.433
Slot
(5.0)
.197
(3.8)
.150
(0.7)
.028
(1.5)
.059
(9.0)
.354
(0.5) Typ
.020
(0.9) Typ
.035
(0.1)
.004
(3.8) Typ
.150
(2.54) Typ
.100
(7.6)
.299
(0.5) Typ
.020
(0.9) Typ
.035
(7.6)
.299
G3T22AB
(1.7) Dia
.067
(1.25) Typ
.049
Right Angle Mounting
28°
(4.0) Dia
.157
(0.5) Typ
.020
(1.5)
.059
(3.8)
.150
(0.9) Typ
.035
(0.55)
.022
(11.0)
.433
Single Pole
Double Pole
Slot
(9.0)
.354
(5.55)
.219
(0.25) Typ
.010
(8.5)
.335
6
5
4
(5.55)
.219
6 3 5 2 4 1
(0.25)
.010
(0.1)
.004
(0.1)
.004
G3T12AH
Pad Layouts for
Surface Mount
Terminals
Upright Mounting
Upright Mounting with Bracket
(1.7) Typ
.067
(2.54) Typ
.100
(3.8)
.150
(1.1) Typ
.043
Support
Pads
Right Angle Mounting
(1.1) Typ
.043
(3.8)
.150
(1.7) Typ
.067
(2.54) Typ
.100
(1.7) Typ
.067
(2.54) Typ
.100
4
5
Single Pole
Double Throw
(5.08)
.200
Support
Pads
(0.635)
.025
(0.7) Typ
.028
4
5
6
(5.08)
.200
(0.635)
.025
(0.7) Typ
.028
6
(9.75)
.384
(9.75)
.384
4
5
6
(6.0)
.236
(6.0)
.236
(3.8)
.150
(1.55) Typ
.061
(1.55) Typ
.061
(0.635)
.025
(0.7) Typ
.028
(3.0)
.118
Double Pole
Double Throw
(1.7) Typ
.067
(2.54) Typ
.100
(1.7) Typ
.067
1
2
3
(1.1) Typ
.043
1
2
3
(1.1) Typ
.043
(3.8)
.150
4
5
(2.54) Typ
.100
4
5
(9.75)
.384
(9.75)
.384
(0.635) Typ
.025
(0.7) Typ
.028
6
(6.0)
.236
(0.635) Typ
.025
(0.7) Typ
.028
6
1
4
2
5
3
6
(1.7) Typ
.067
(1.27) Typ
.050
(6.0)
.236
(1.55) Typ
.061
(1.55) Typ
.061
(0.635) Typ
.025
(0.7) Typ
.028
(3.0)
.118
www.nkk.com
A45
Series G3T
Toggles
Process Sealed Ultra-Miniature SMT Toggles
PACKAGING
A
R
Tape-Reel
for Right Angle
500 pieces per reel
Switches must be ordered in
500-piece increments when
tape-reel packaging is selected.
This packaging meets EIA-481-2
Standard for “16mm and 24mm
Embossed Carrier Taping of
Surface Mount Components
for Automatic Handling.”
Programmable Illuminated PB
Pushbuttons
Rockers
S
Stick-Tube
for Upright Mount
50 pieces per stick
Switches must be ordered in
50-piece increments when
stick-tube packaging is selected.
Slides
Rotaries
Keylocks
Tactiles
No
Code
Partitioned Tray
for Upright & Right Angle
Any quantity
If the G3 upright models are
ordered in less than 50-piece
increments or the right angle
models in less than 500-piece
increments, the switches are
packaged in a partitioned tray.
No code is required.
Supplement
Accessories
Indicators
Touch
Tilt
A46
www.nkk.com
