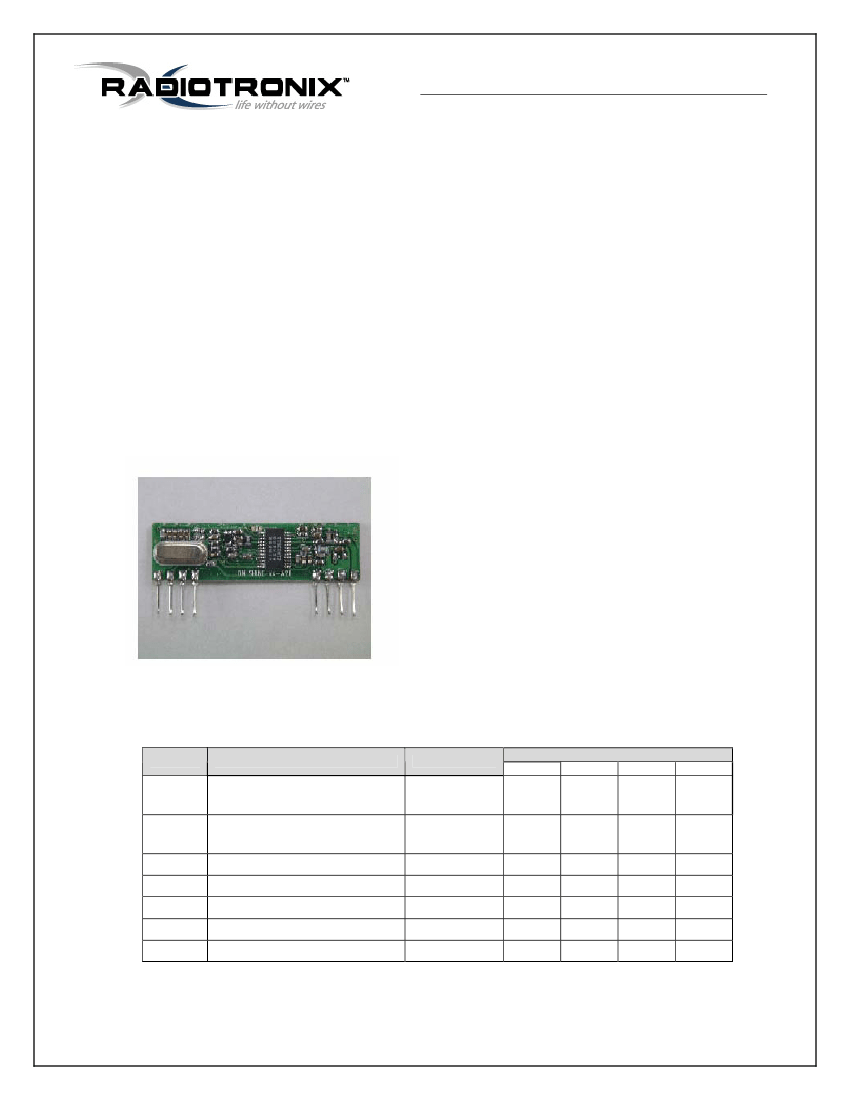

RCR-XXX-EPR
Available in 315 and 433 MHz.
Typical Applications
•
•
•
•
•
Home Security Systems
Remote Lighting Controls
Remote Gate Controls
Asset Tracking
Sensor Monitoring
Features
•
•
Ideal for 315/ 433 MHz Remote Keyless
Entry Receivers
Phase-locked loop feature
Description
The RCR-XXX-EPR is a miniature receiver module
that receives On-off keyed (OOK) modulation
signal and demodulated to digital signal for the next
decoder stage. Local Oscillator is made of L/C
structure. The result is excellent performance in
simple-to-use. The RCR-XXX-EPR is designed
specifically for unlicensed remote control and
wireless security receiver operating at 315/433
MHz in the USA under FCC Part 15 regulation.
Item No.
1.
Parameter
Sensitivity (315 MHz)
Description
Vcc 5.0, TA-27C
BER= 3/100,
1kbps
Vcc 5.0, TA-27C
BER= 3/100,
1kbps
Value
MIN
TYP
-105
MAX
UNIT
MHz
2.
3.
4.
5.
6.
7.
Sensitivity (433 MHz)
Modulation
Power Supply
Supply Current
Data Rate
Operating Temperature
-104
ASK
4.75
5
2.4
1
-40
5.25
3
4.8
+85
MHz
V
mA
Kbps
o
C
-i-
RCR-XXX-EPR Receiver
Data Sheet

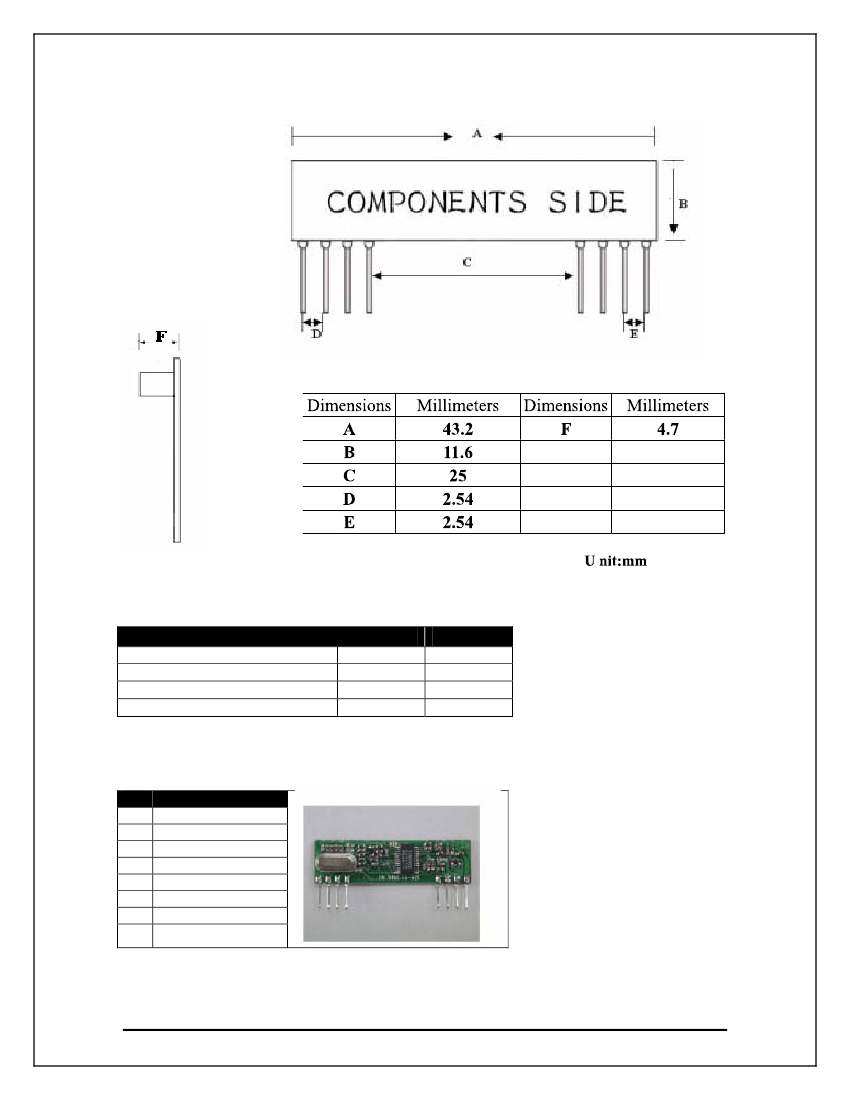

Typing Test Circuit
Typical Receiver Application
Notes:
1. Encoder : HT12D/F , PTC ( 2262 )
2. Antenna : Length = 22.6cm for 315MHz; Length = 17.2cm for 433MHz
Ordering Information
PRODUCT
RCR-433-EPR
ORDER CODE
RCR-433-EPR
Radiotronix Inc.
905 Messenger Lane
Moore, OK 73160
(405) 794-7730
(405) 794-7477 (Fax)
www.radiotronix.com
