RAD-UHF-FL-RS232-BD/…
UHF Band Licensed Serial Data Radio
INTERFACE
Data Sheet
2353_en_B
Description

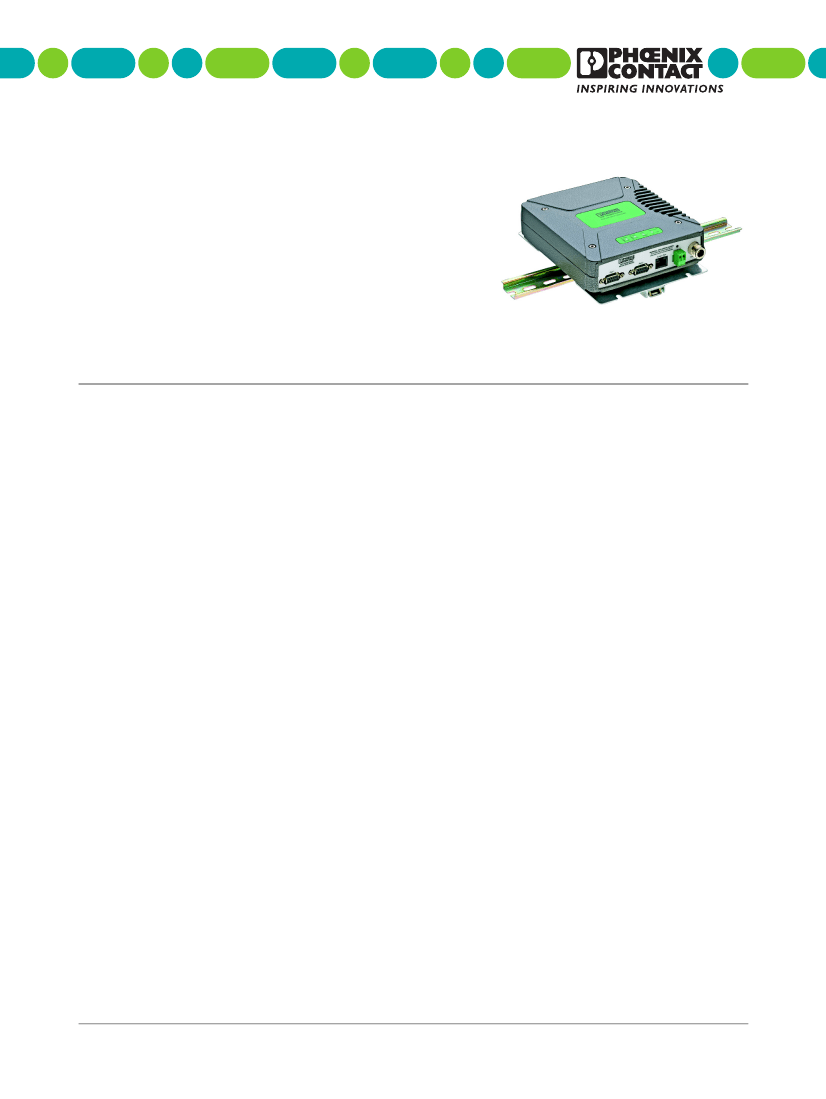

The RAD-UHF-FL-RS232-BD/… radio is an advanced,
high-speed, digital data radio modem for the most complex
and demanding requirements in both Point-to-Point (PTP)
and Point-to-Multipoint (PTMP) SCADA and telemetry sys-
tems. It can be configured as a master, slave or repeater
using the RAD-Link 400 software.
The RAD-UHF-FL-RS232-BD/… radio features two RS-232
ports with support for most industrial protocols. An infinite
number of remote locations can be accessed by one master
transceiver. RAD-UHF-FL-RS232-BD/… transceivers oper-
ate in the protected 400 MHz UHF band.
Non-intrusive diagnostics can be collected simultaneously
with the user data via the RAD-Link 400 Diagnostic software
module. It includes the ability to monitor both local and re-
mote radios, measuring TX power, RX signal strength, DC
voltage and internal temperature.
The RAD-UHF-FL-RS232-BD/… is also compatible with
RAD-UHF-SL… radios.
© PHOENIX CONTACT - 07/2007
Features
•
•
•
•
•
•
•
•
Fully integrated DSP-based data modem
Up to 19,200 bps over-the-air data rates in 12.5 kHz
FCC channels
128-bit AES encryption for user data
Compatible with legacy systems (non-packet digital
and Bell 202 modes)
Simplex and half-duplex operation
DIN rail-mounted, rugged diecast alloy housing
Low power consumption with sleep mode operation
Field-upgradeable firmware
2353_en_B
PHOENIX CONTACT
1
RAD-UHF-FL-RS232-BD/…
Ordering Data
Products
Description
Wireless radio,
2 data ports, 406-421 MHz range
Wireless radio,
2 data ports, 415-430 MHz range
Wireless radio,
2 data ports, 450-465 MHz range
Wireless radio,
2 data ports, 455-470 MHz range
Type
RAD-UHF-FL-RS232-BD/63F01
RAD-UHF-FL-RS232-BD/64F01
RAD-UHF-FL-RS232-BD/51F01
RAD-UHF-FL-RS232-BD/65F01
Order No.
5606858
5606114
5607055
5607056
Pcs./Pkt
1
1
1
1
Accessories
Description
Programming cable
Type
RAD-UHF-FL-CAB/PROG
Order No.
5606653
Pcs./Pkt
1
Technical Data
General Data
Power Supply
Transmit Current (nominal)
Receive Current (nominal)
Dimensions
Mounting
Weight
10-16 V DC
750 mA @ 1 Watt
1500 mA @ 5 Watt
<125 mA
170 x 150 x 42 mm (6.7 x 5.9 x 1.65 in.)
NS35 DIN rail. Optional Panel Mount
1.27 kg (2.8 lb.)
RF Specifications
Frequency Range
Frequency Splits
Channel Selection
Operational Modes
Configuration
TX Power
Modulation
Sensitivity
Bit Error Rate
406-470 MHz (varies by part number)
Various TX/RX (programmable)
Dual synthesizer, 6.25 kHz Channel Step
Simplex and Half-Duplex
Software-configurable via RAD-Link 400 Software
0.05 to 5 W (+37 dBm) ±1 dB (software adjustable)
User-configurable, digitally filtered binary GSMK or 4 level FSK
-118 dBm for 12 dB SINAD
<1x16
-6
@ -110 dBm (4800 bps)
<1x16
-6
@ -108 dBm (9600 bps)
<1x16
-6
@ -106 dBm (19,200 bps)
Interfaces
User Data Ports
two (2) RS-232 DB-9 Female
Port 1: 600 to 76,800 bps asynchronous
Port 2: 300 to 38,400 bps asynchronous
RS-232 RJ45 Female for programming and diagnostics
N (female)
COMBICON Pluggable Screw
Multimode LED Indicators for Power, TX, RX, Sync, Data Port TxD and RxD
(for ports 1 and 2)
16 kbyte of on-board RAM
System Port
Antenna
Power
Display
Data Buffer
Approvals
FCC
CSA
Part 15, Part 90
Class I, Division 2, Groups A, B, C, D, for Hazardous Locations
2353_en_B
PHOENIX CONTACT • P.O. Box 4100 • Harrisburg, PA 17111-0100
Phone: 800-888-7388 • Technical Service: 800-322-3225 • Fax: 717-944-1625
E-mail: info@phoenixcon.com • Website: www.phoenixcon.com
