87715-6200: Descriptionpci express / pci connector pci express edgecard 98ckt ny66 hsgblack; CategoryThe connector The connector; File Size35KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87715-6200 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87715-6200	-	-	View	Buy Now

87715-6200 Overview

pci express / pci connector pci express edgecard 98ckt ny66 hsgblack

87715-6200 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
Other features	PANEL MOUNTABLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87715
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	98
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 11/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

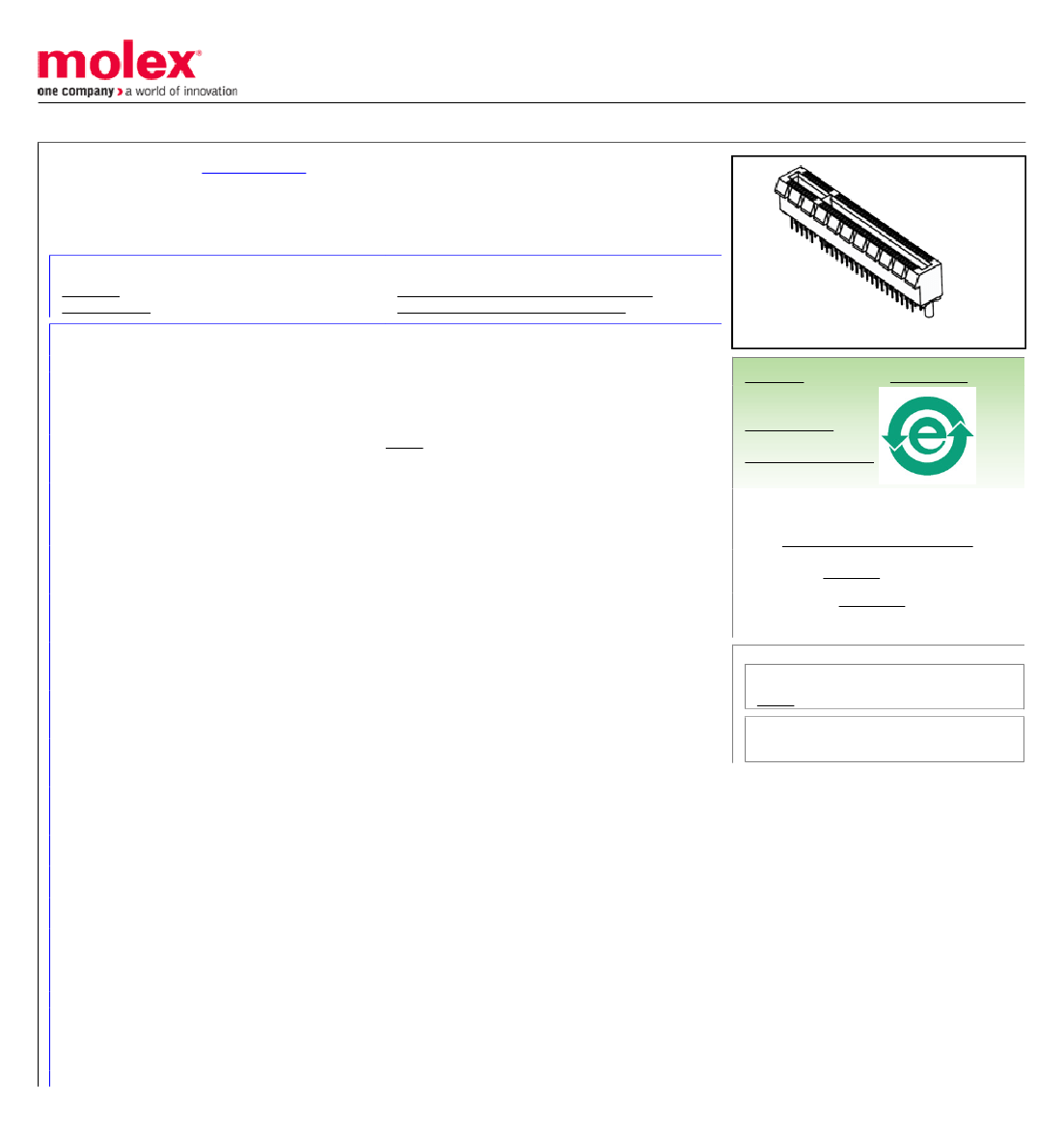

0877156200

Planned for Obsolescence

1.00mm (.039") Pitch, PCI Express* Connector, 98 Circuits, Nylon 6/6 Glass-filled,

Black Housing, Phosphor Bronze, Gold (Au) Flash, with Plastic Pegs, 2.54mm (.100")

Soldertail, Lead Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87715-200 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Agency Certification

CSA

General

Product Family

Series

Comments

Component Type

Product Name

Edge Card Connectors

87715

PCI 8 lanes

Edgecard to PCB

PCI Express*

Physical

(p)ower-(s)ignal Configuration

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

Entry Angle

Flammability

Keying to Mating Part

Material - Plating Mating

Material - Plating Termination

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Temperature Range - Operating

Termination Interface: Style

98s - 0p

Vertical (Top Entry)

94V-0

Yes

Gold

Tin

2.54mm (.100")

Yes

1.60mm (.063")

Tray

1.00mm (.039")

Yes

-55°C to +85°C

Through Hole

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87715Series

Mates With

PCI Express Card

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.1A

50V AC (RMS)/DC

Solder Process Data

Lead-free Process Capability

Process Temperature max. C

Wave Capable (TH only)

245

Material Info

Country of Origin

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-87715-207

PS-87715-200

SD-87715-207
