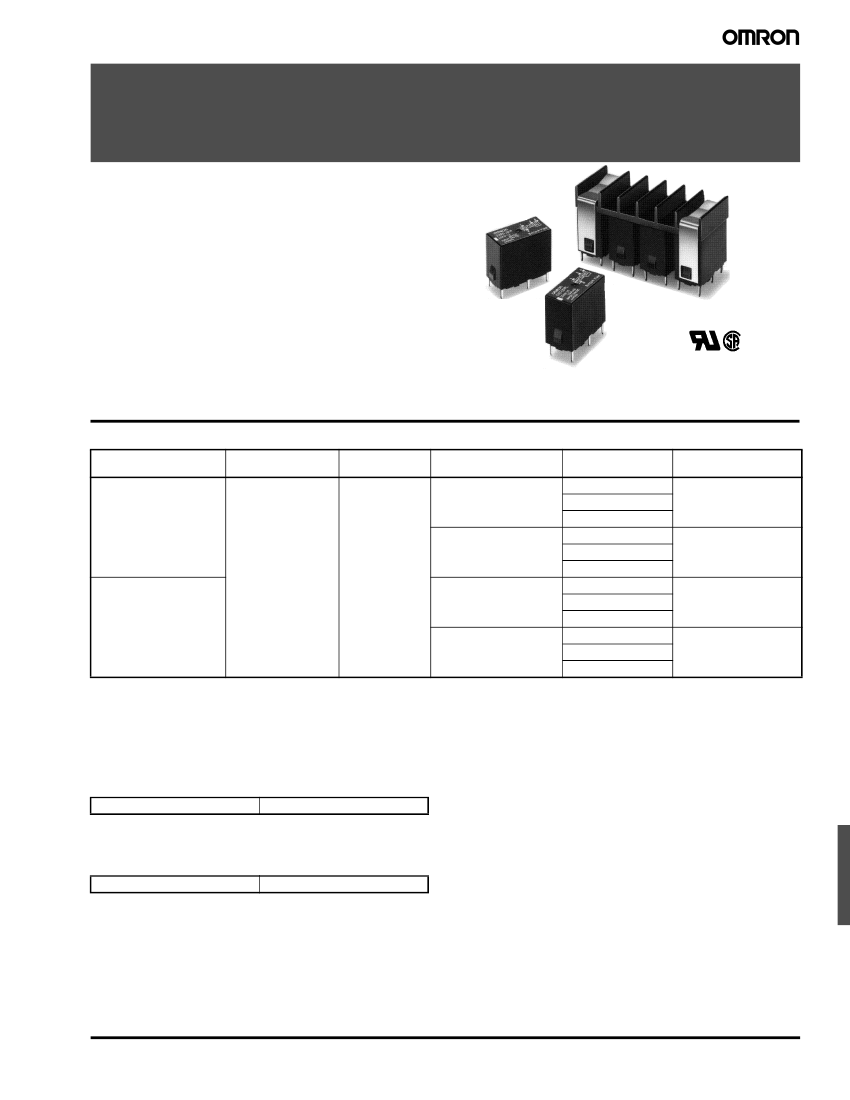

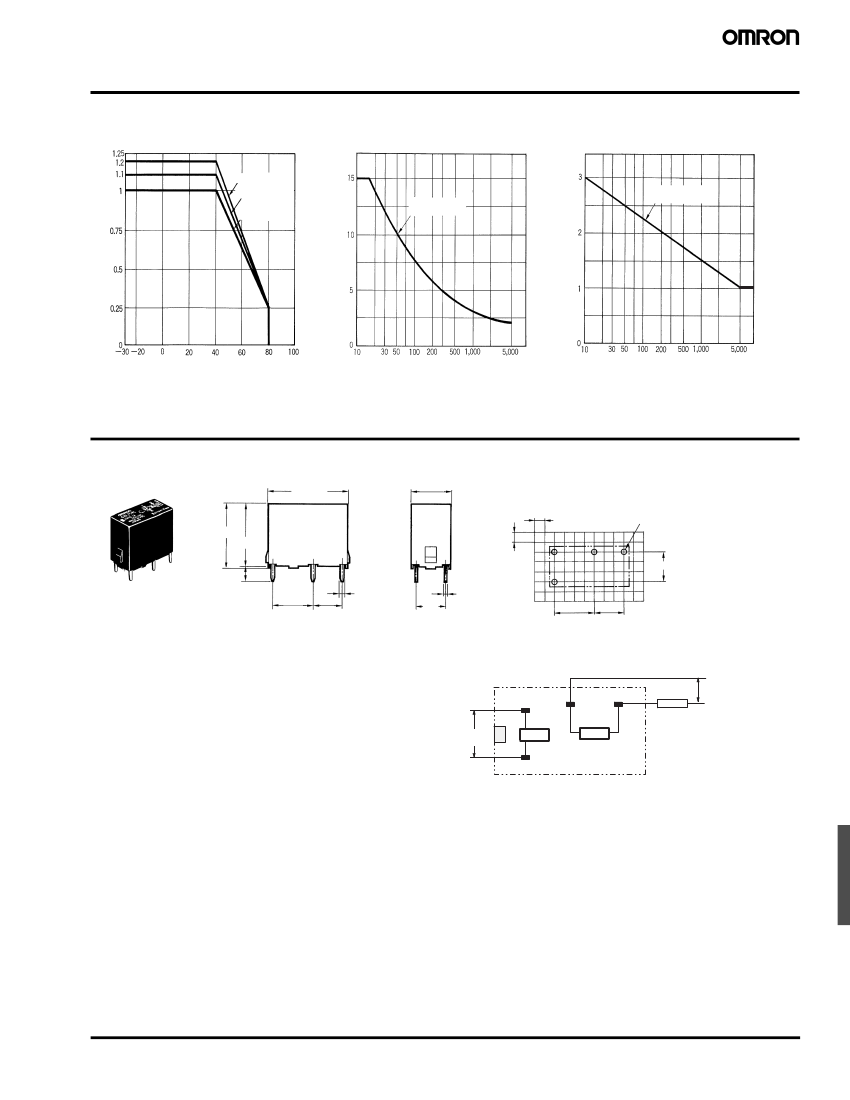

Solid State Relay
G3S/G3SD
Ultra-small Relay Breaks up to 1 A
• Ultra-small, dual in-line package (DIP) SSR.
• Terminals compatible with G6B Electromagnetic Relay’s.
Mix with G6Bs as the application requires.
• Close side-by-side mounting possible. In addition, heat sink
dedicated to this mounting style also available.
• Both AC- and DC-load versions available.
• High isolation of 2,500 VAC between input and output free-
ing inputs from noise surge generated in the load.
• Approved by UL and CSA.
Ordering Information
To order: Select the part number and add the desired input voltage (Ex: G3SD-Z01P-PD-US
DC12)
Isolation
Phototriac
Zero cross function
No
No
Indicator
Rated output load
Rated input voltage
(applicable output load)
1 A at 100 to 240 VAC
(1 A at 75 to 264 VAC)
(see note 1)
1.2 A at 100 to 240 VAC
(1.2 A at 75 to 264 VAC)
(see note 1)
Photocoupler
1 A at 4 to 24 VDC
(1 A at 3 to 26 VDC)
(see note 2)
1.1 A at 4 to 24 VDC
(1.1 A at 3 to 26 VDC)
(see note 2)
Note: 1.
Product is labelled “250 VAC”
2.
Product is labelled “24 VDC”
5 VDC
12 VDC
24 VDC
5 VDC
12 VDC
24 VDC
5 VDC
12 VDC
24 VDC
5 VDC
12 VDC
24 VDC
G3SD-Z01P-PD-US
G3SD-Z01P-US
G3S-201PL-PD-US
Model
G3S-201PL-US

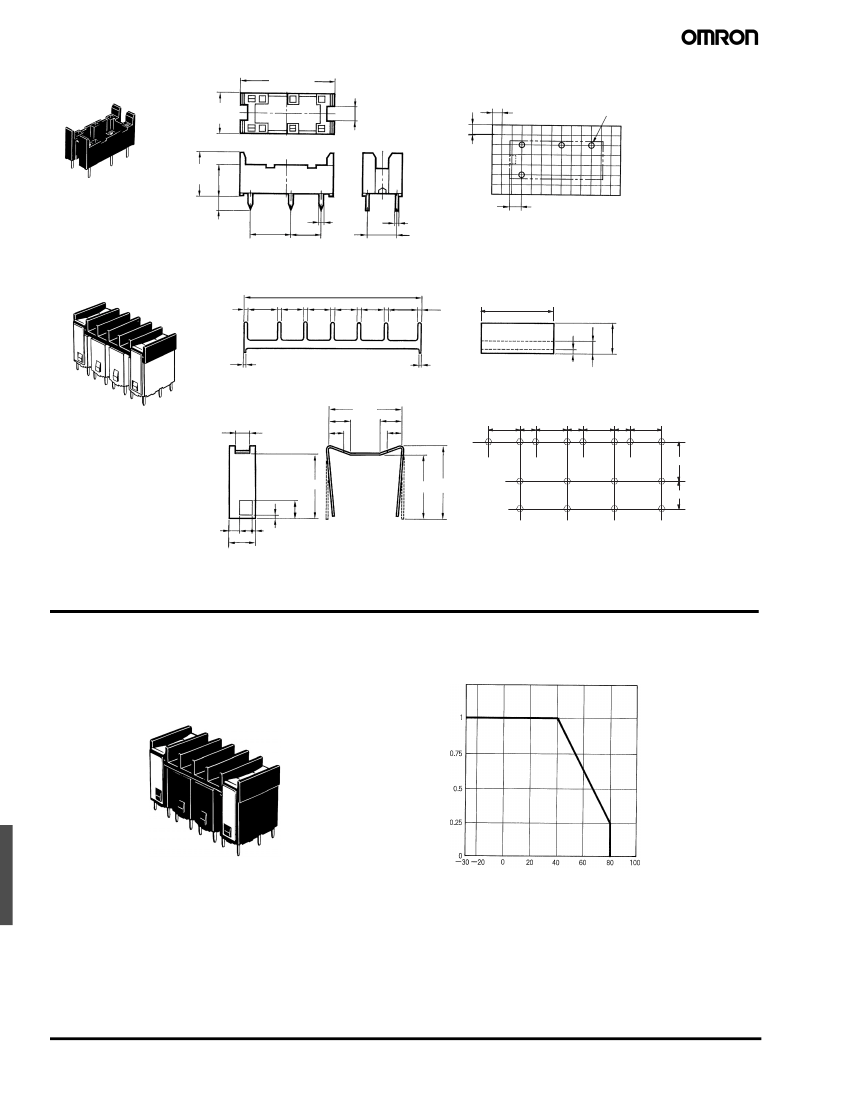

Accessories (Order Separately)
Heat Sink
Heat Sink
See
Dimension
for details.
Y92B-S08N
Connecting Socket
Connecting socket
See
Dimensions
for details.
P6D-04P
Solid State Relay
G3S/G3SD
373
