87787-1012

Description
Standard card edge connector 1mm vrm lopr TH/ltc/ /blck .76aulf 164ckt
CategoryThe connector
File Size33KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

87787-1012 Overview

Standard card edge connector 1mm vrm lopr TH/ltc/ /blck .76aulf 164ckt

87787-1012 Parametric

Parameter NameAttribute value
MakerMolex
RoHSyes
series connection87787
Number of locations/contacts94
Installation angleVertical
Installation styleThrough Hole
Pitch1 mm
Shell materialThermoplastic, High Temperature
Contact materialHigh Performance Alloy
Contact platingHigh Performance Alloy, Phosphor Bronze
EncapsulationTray

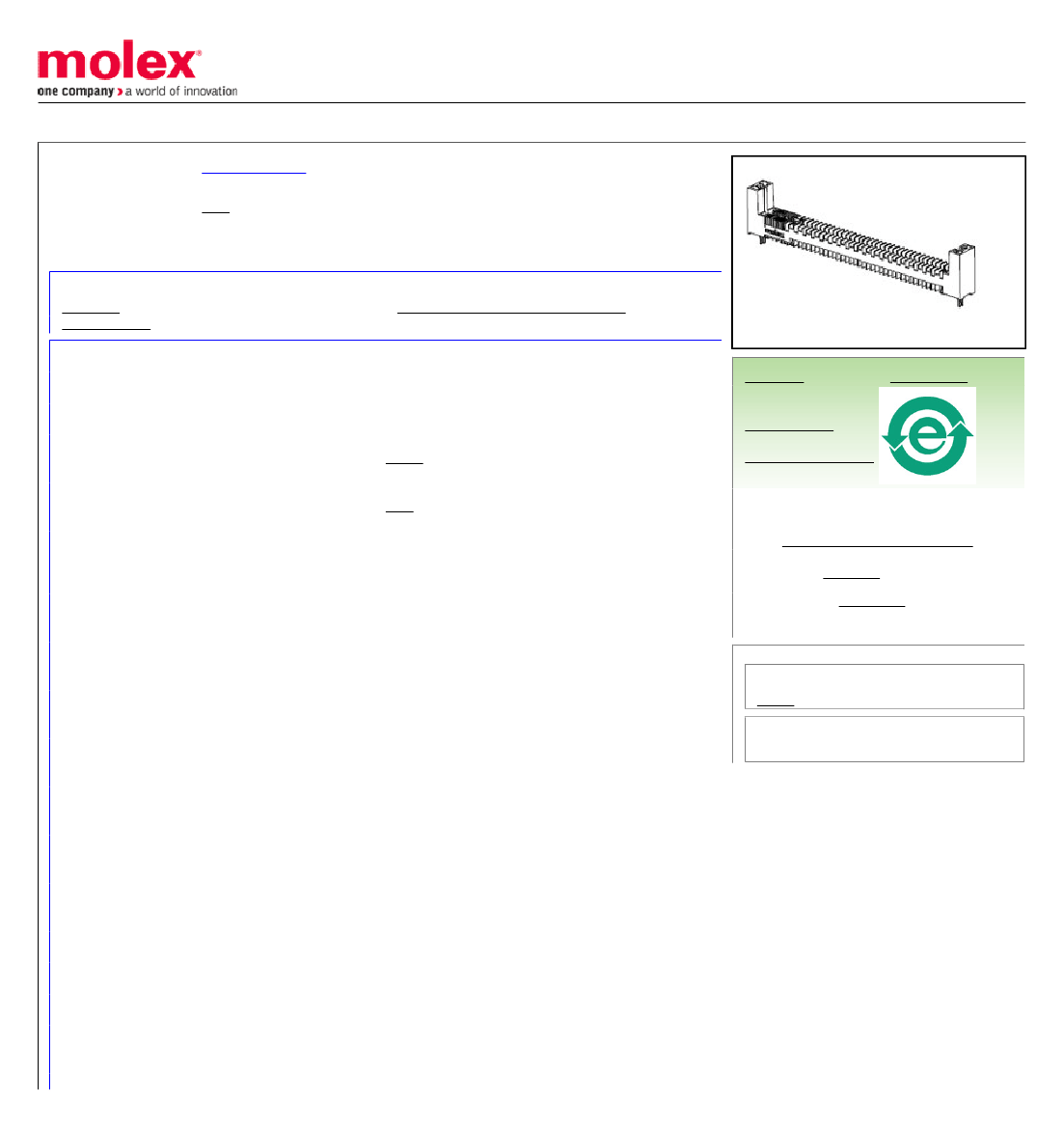

This document was generated on 11/16/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0877871012
Planned for Obsolescence
icool
1.00mm (.039") Pitch iCool™ Low Profile VRM Socket, VRM 11, Vertical, Through
Hole, with Latches, with Beveled Metal Pins, Signal 24, Power 70, 0.76µm (30µ") Gold
(Au) Plating, 3.00mm (.118) PC Tail Length, Leadfree
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Low-Halogen
China RoHS
General
Product Family
Series
Comments
Component Type
Overview
Product Name
Edge Card Connectors
87787
<LI>Latches in Beige Color
Edgecard to PCB
icool
iCool™, VRM
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
(p)ower-(s)ignal Configuration
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Entry Angle
Flammability
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
24s - 70p
94
94
Black, Natural
25
Vertical (Top Entry)
94V-0
Yes
High Performance Alloy (HPA), Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
3.00mm (.118")
Yes
Yes
1.60mm (.063")
Tray
1.00mm (.039")
0.762µm (30µ")
3.810µm (150µ")
Yes
-10°C to +105°C
Through Hole
Search Parts in this Series
87787Series
Mates With
Voltage Regulator Module
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A, 4A
48V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
SMC & Wave Capable (TH only)
1
245
