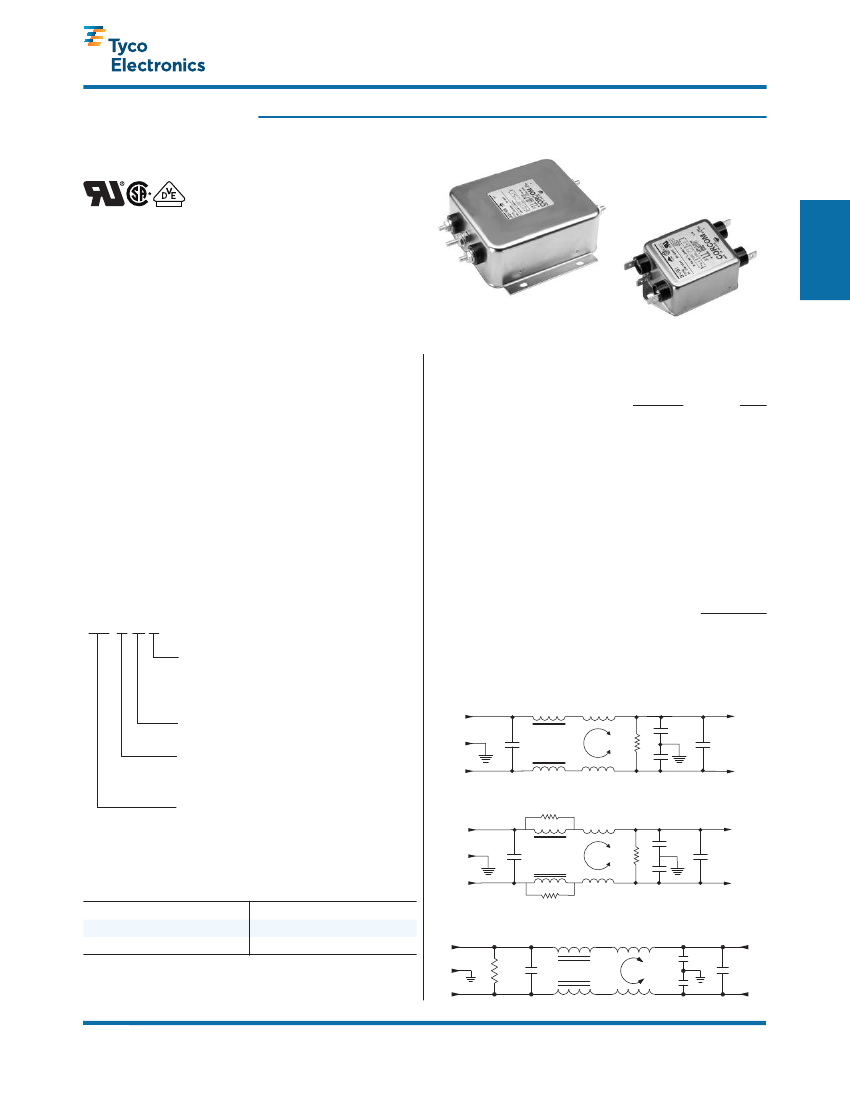

Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
Multipurpose Power Line RFI Filter for Emission Control
S Series
UL Recognized
CSA Certified
VDE Approved
20VS1
3VS1
1
RFI Power Line Filters
Specifications
Maximum leakage current each Line to Ground:
3 & 20A
60A
@120 VAC 60 Hz:
.4 mA
.75 mA
@250 VAC 50 Hz:
.7 mA
1.25 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max):
Operating Frequency:
Rated Current:
2250 VDC
1450 VDC
250 VAC
50/60 Hz
3 to 60A
S Series
• Combines Line to Ground interference rejection
filters with additional circuitry to reduce Line to
Line noise and transients
• Designed for use when equipment impedance at
RF frequencies is high
• Effective for use with switch-mode power supplies
• Effective when used to control emissions in
equipment using SCR and T2L circuits for
compliance with FCC Part 15, Subpart J and
EN55022, Level A, down to 150kHz
Ordering Information
20 V S 6
Input / Output Style
1 – .250 [6.3] spade terminals
6 – Threaded bolt
S Series
Leakage current designation
V – Standard
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
√(85-Ta)/45
Electrical Schematics
3, 6, 10VS
LINE
LOAD
20VS
Current Rating
3, 6, 10, 20 or 60A
LINE
LOAD
Available Part Numbers
3VS1
6VS1
10VS1
20VS1
20VS6
60VS6
60VS
LINE
LOAD
67
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
Multipurpose Power Line RFI Filter for Emission Control
(continued)
S Series

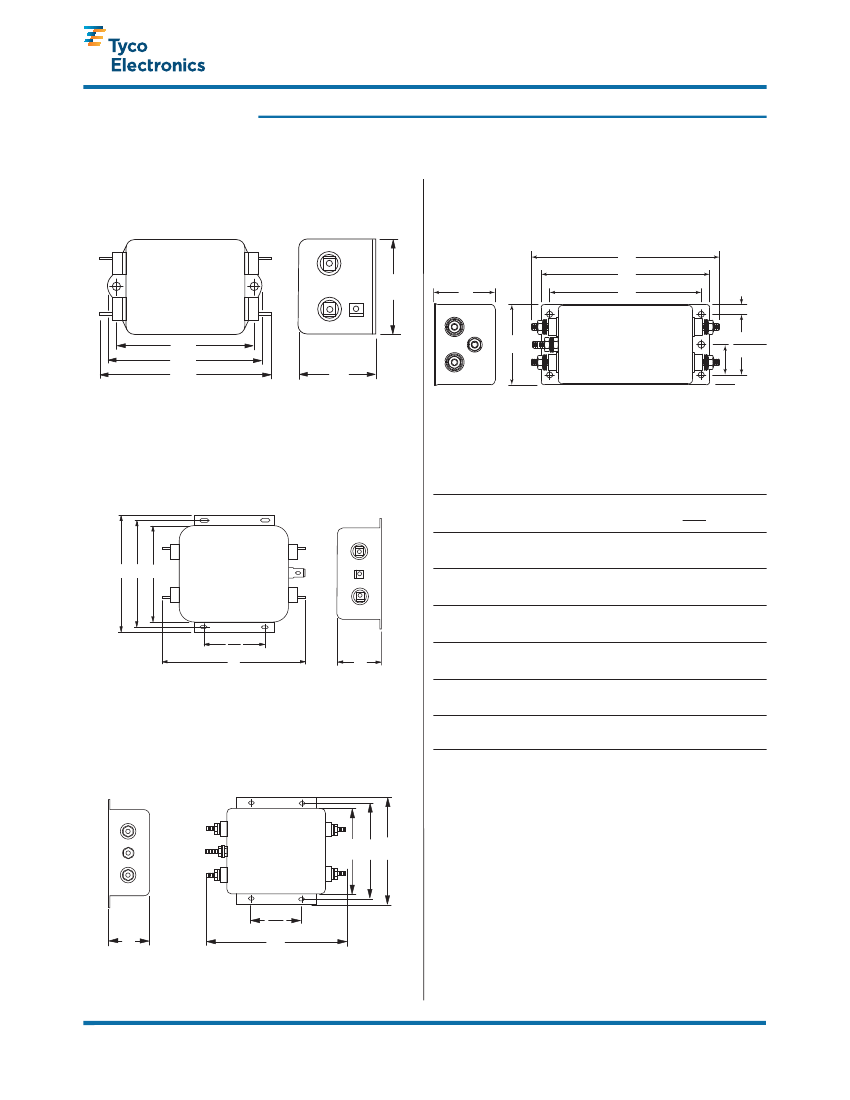

Case Styles
S1
(3, 6, 10A)
60VS6
A
E
B
C
D
.415 [10.54] ref.
D
E
A
Typical Dimensions:
Line/Load Terminals (4):
Ground Terminal (1):
Mounting Holes (2):
B
2.25
57.15
± .01
± .25
C
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
.188 [4.78] Dia.
Typical Dimensions:
Terminals (5):
Mounting Holes (5):
1.12
28.5
ref.
1/4-20, Torque 56 lbf-in. [6.32 N-m] max. ± 2 [.22]
.218 [5.53] Dia. ± .006 [.152]
Case Dimensions
20VS1
Part No.
3VS1
E D B
A
(max)
B
(max)
C
(max)
± .015
± .38
D
E
(max)
6VS1
10VS1
2.00
50.8
A
Typical Dimensions:
Line/Load Terminals (4):
Ground Terminal (1):
Mounting Slots (4):
C
20VS1
20VS6
60VS6
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
.250 x .156 [6.35
x 3.96]
Dia.
3.36
85.3
3.86
98.0
3.86
98.0
5.23
132.8
5.34
135.6
7.2
182.88
1.82
46.2
2.08
52.8
2.08
52.8
3.38
85.9
3.38
85.9
3.08
78.23
1.16
29.5
1.53
38.9
1.53
38.9
1.53
38.9
1.53
38.9
2.28
57.91
2.375
2.78
60.33
70.6
2.938
3.34
74.63
84.8
2.938
3.34
74.63
84.8
3.75
4.20
95.25 106.7
3.75
4.20
95.25 106.7
5.625
6.25
142.87 158.75
20VS6
B D
2.00
50.8
C
Typical Dimensions:
Terminals (5):
Mounting Slots (4):
A
8-32, Torque 18 lbf-in. [2.03 N-m] max. ± 2 [.22]
.250 x .156 [6.35
x 3.96]
Dia.
68
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
E
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
Multipurpose Power Line RFI Filter for Emission Control
(continued)
S Series
Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
1
10VS
db
100
90
80
70
60
50
40
30
20
10
3VS
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
6VS
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
20VS
db
100
RFI Power Line Filters
90
80
70
60
50
40
30
20
10
0.1
1
10
30
Frequency in MHz
0
0.1
1
10
30
Frequency in MHz
0
60VS
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Current
Rating
3A
6A
10A
20A
60A
.15
15
15
15
15
7
.5
27
27
27
30
27
Frequency – MHz
1
2
5
10
35
35
35
38
34
40
40
40
38
38
32
32
32
32
45
44
44
44
43
54
20
47
47
47
42
44
30
47
47
47
40
40
Differential Mode / Symmetrical (Line to Line)
Current
Rating
3A
6A
10A
20A
60A
.15 .3
35
35
35
35
37
50
50
50
50
-
Frequency – MHz
.5
1
2
5 10
65
65
65
65
77
65
65
65
65
93
65
65
65
65
86
60
60
60
60
70
50
45
50
45
54
20
40
48
40
48
64
30
45
48
45
48
54
69
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
