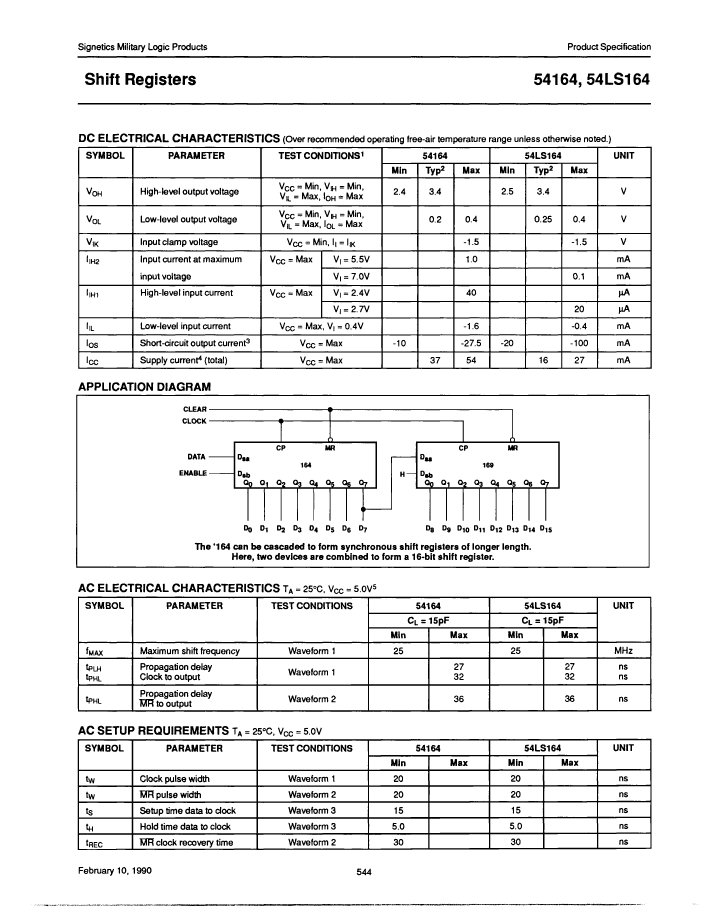

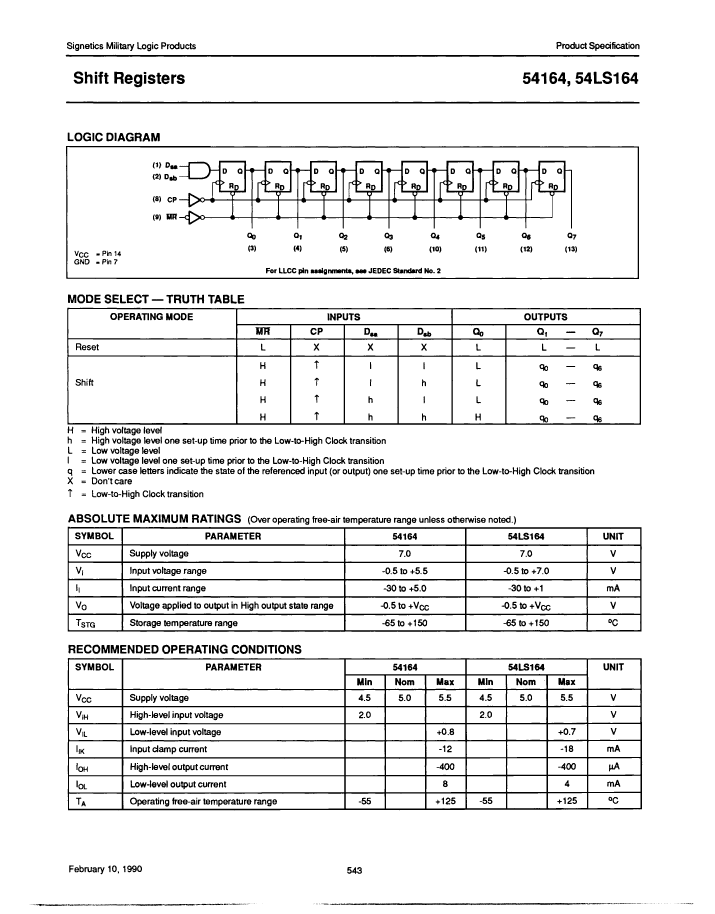

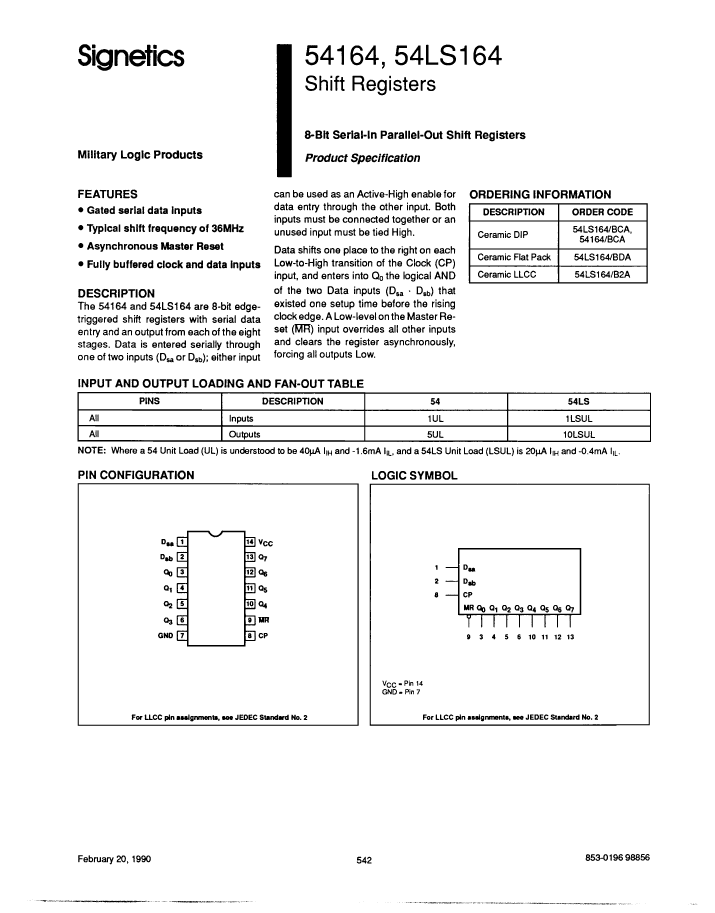

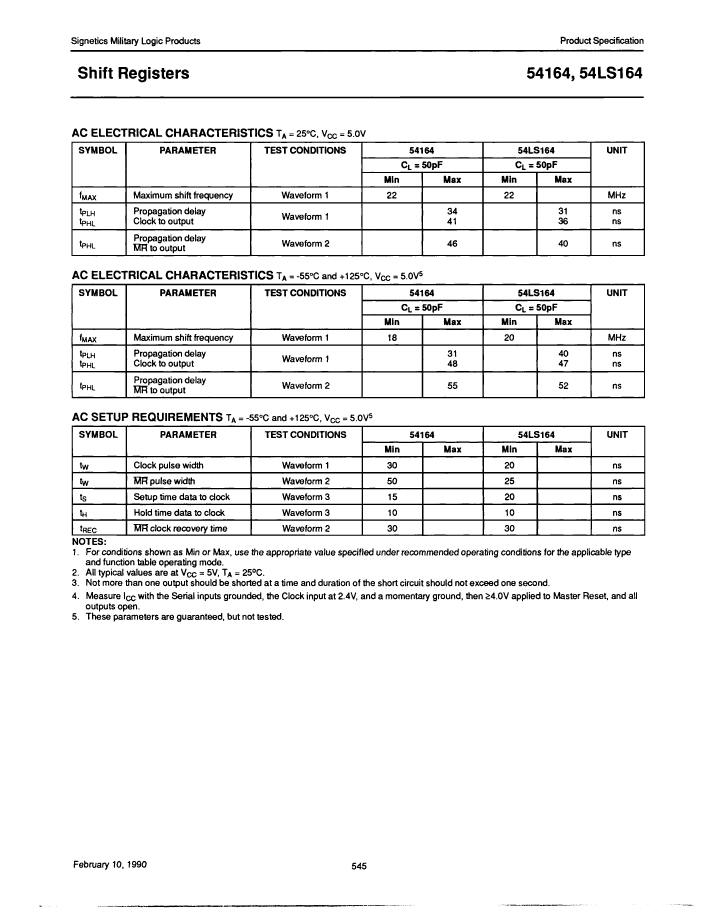

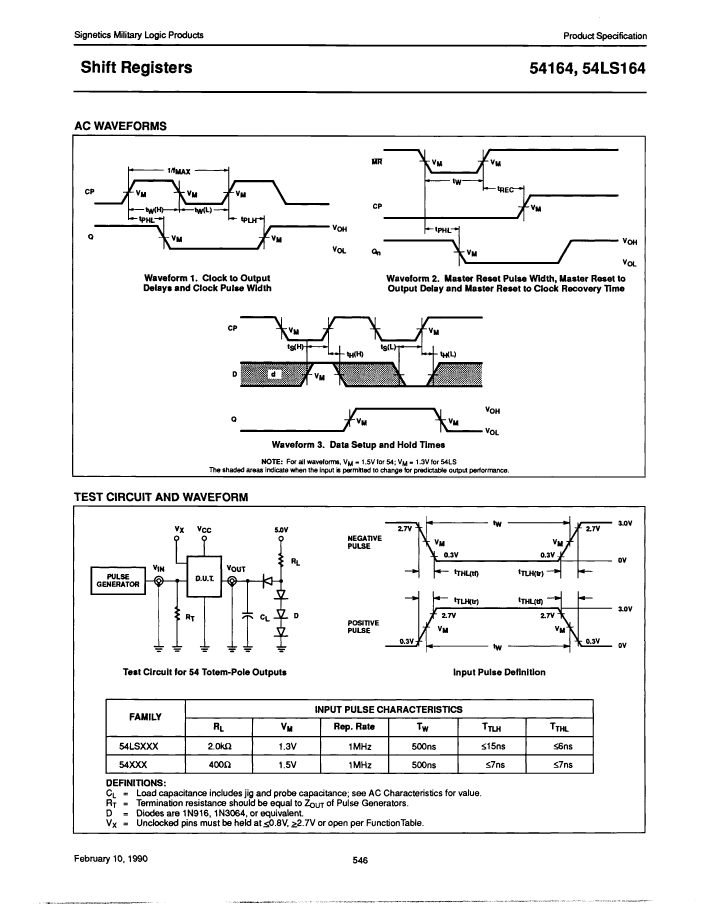

Serial In Parallel Out, TTL/H/L Series, 8-Bit, Right Direction, True Output, TTL, CDIP14
| Parameter Name | Attribute value |
| Maker | YAGEO |
| package instruction | , |
| Reach Compliance Code | unknown |
| Counting direction | RIGHT |
| series | TTL/H/L |
| JESD-30 code | R-CDIP-T14 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | SERIAL IN PARALLEL OUT |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Maximum supply current (ICC) | 54 mA |
| propagation delay (tpd) | 48 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Trigger type | POSITIVE EDGE |
| minfmax | 36 MHz |
| Base Number Matches | 1 |
| 54164/BCA | 54LS164/BCA | 54LS164/BDA | 54LS164/BCX | 54LS164/B2A | |
|---|---|---|---|---|---|
| Description | Serial In Parallel Out, TTL/H/L Series, 8-Bit, Right Direction, True Output, TTL, CDIP14 | Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDIP14 | Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDFP14 | Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDIP14, CERAMIC, DIP-14 | Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CQCC20 |
| Reach Compliance Code | unknown | unknow | unknown | unknown | unknown |
| Counting direction | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT |
| series | TTL/H/L | LS | LS | LS | LS |
| JESD-30 code | R-CDIP-T14 | R-CDIP-T14 | R-CDFP-F14 | R-CDIP-T14 | S-CQCC-N20 |
| Logic integrated circuit type | SERIAL IN PARALLEL OUT | SERIAL IN PARALLEL OUT | SERIAL IN PARALLEL OUT | SERIAL IN PARALLEL OUT | SERIAL IN PARALLEL OUT |
| Number of digits | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 14 | 14 | 14 | 14 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | IN-LINE | IN-LINE | FLATPACK | IN-LINE | CHIP CARRIER |
| propagation delay (tpd) | 48 ns | 47 ns | 47 ns | 47 ns | 47 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES | NO | YES |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | FLAT | THROUGH-HOLE | NO LEAD |
| Terminal location | DUAL | DUAL | DUAL | DUAL | QUAD |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| minfmax | 36 MHz | 36 MHz | 36 MHz | 36 MHz | 36 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | - | 50 pF |
| Maximum supply current (ICC) | 54 mA | 27 mA | 27 mA | - | 27 mA |
