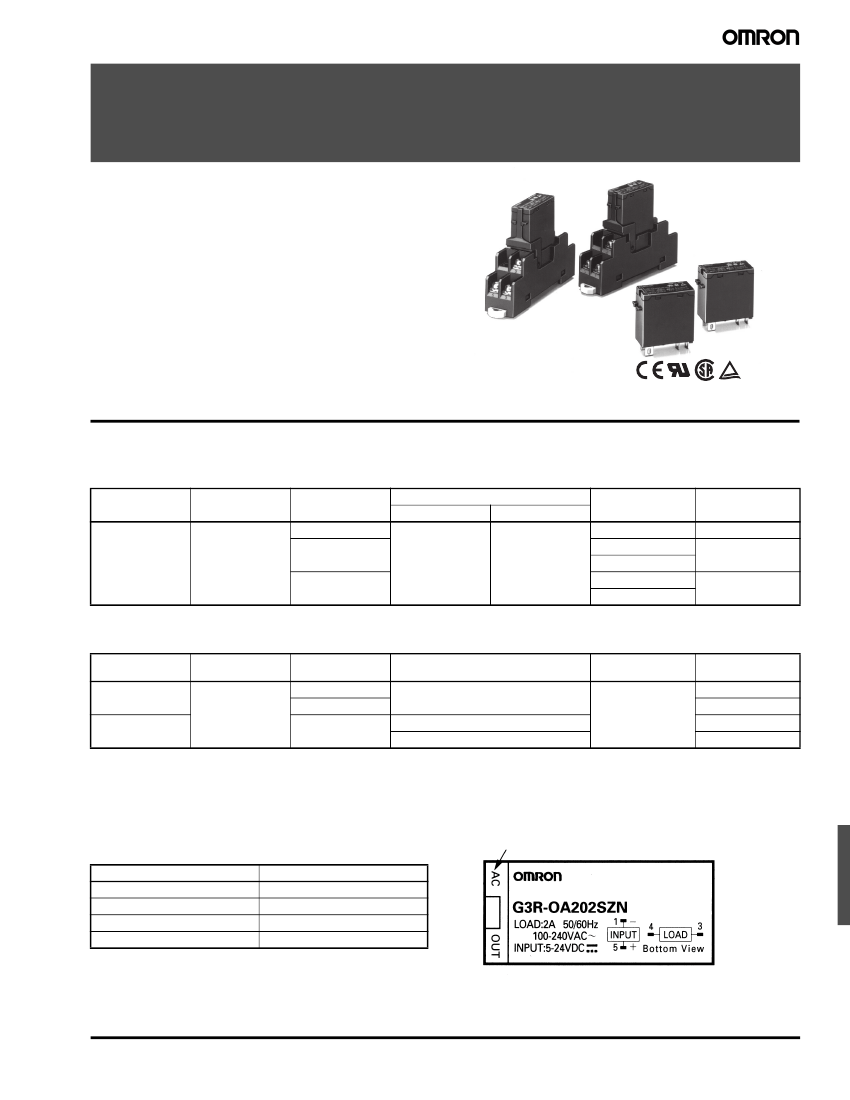

Solid State Relay
G3R-I/O
Compact SSRs for I/O Interface with High
Dielectric Strength Requirements
• High-speed models with optimum input ratings for a variety
of sensors are available.
• Input Modules and Output Modules that have the same
form-factor as the G2R.
• Using a coupler approved by VDE 0884 and assuring an
I/O dielectric strength of 4 kV.
• Incorporating an easy-to-see monitoring indicator.
• Approved by UL, CSA, and TÜV. (“-UTU” models)
Ordering Information
To Order: Select the part number and add the desired coil voltage rating, (e.g., G3R-IAZR1SN-DC5)
■
Input Module
Isolation
Photocoupler
Yes
Indicator
Response speed
—
High-speed
(1 kHz)
Low-speed
(10 Hz)
4 to 32 VDC
Logic level
Supply voltage
Supply current
0.1 to 100 mA
Rated input
voltage
100 to 240 VAC
5 VDC
12 to 24 VDC
5 VDC
12 to 24 VDC
G3R-IDZR1SN-1
Model
G3R-IAZR1SN
G3R-IDZR1SN
■
Output Module
Isolation
Phototriac
Photocoupler
Yes
Indicator
Yes
No
—
2 A at 5 to 48 VDC
1.5 A at 48 to 200 VDC
Note:
When ordering a UL, CSA and EN (TÜV) approved model, add “-UTU” to the model number as shown below:
Example: G3R-OA202SZN-UTU DC5-24.
Zero cross
function
Rated output
load
2 A at 100 to 240 VAC
Rated input
voltage
5 to 24 VDC
Model
G3R-OA202SZN
G3R-OA202SLN
G3R-ODX02SN
G3R-OD201SN
■
I/O Indication
I/O module classification and AC/DC use are indicated on the mark
affixed to the top of the product.
Mark indication
AC IN
DC IN
AC OUT
DC OUT
Specification
Input module, AC input
Input module, DC input
Output module, AC output
Output module, DC output
Mark attached to the top of the product
Solid State Relay
G3R-I/O
407
Specifications
■
Ratings (at an Ambient Temperature of 25°C)
Input Module
Input
Model
G3R-IAZR1SN
G3R-IDZR1SN
G3R-IDZR1SN-1
Rated voltage
100 to 240 VAC
5 VDC
12 to 24 VDC
5 VDC
12 to 24 VDC
Operating voltage
60 to 264 VAC
4 to 6 VDC
6.6 to 32 VDC
4 to 6 VDC
6.6 to 32 VDC
Input current
15 mA max.
8 mA max.
Must operate
voltage
60 VAC max.
4 VDC max.
6.6 VDC max.
4 VDC max.
6.6 VDC max.
Must release
voltage
20 VAC min.
1 VDC min.
3.6 VDC min.
1 VDC min.
3.6 VDC min.
Output
Model
G3R-IAZR1SN
G3R-IDZR1SN
G3R-IDZR1SN-1
Logic level supply voltage
4 to 32 VDC
Logic level supply current
0.1 to 100 mA
Output Module
Input
Model
G3R-OA202SZN
G3R-OA202SLN
G3R-ODX02SN
G3R-OD201SN
Rated voltage
5 to 24 VDC
Operating voltage
4 to 32 VDC
Input current
15 mA max.
(at 25°C)
8 mA max.
Must operate
voltage
4 VDC max.
Must release
voltage
1 VDC min.
Output
Model
G3R-OA202SZN
G3R-OA202SLN
G3R-ODX02SN
G3R-OD201SN
5 to 48 VDC
48 to 200 VDC
4 to 60 VDC
40 to 200 VDC
0.01 to 2 A
0.01 to 1.5 A
8 A (10 ms)
8 A (10 ms)
Rated load voltage
100 to 240 VAC
Load voltage range
75 to 264 VAC
Load current (see note)
0.05 to 2 A
Inrush current
30 A (60 Hz, 1 cycle)
Note:
The minimum current value is measured at 10°C min.
408
Solid State Relay
G3R-I/O
Characteristics
■
Input Module
Item
Operate time
Release time
Response frequency
Output ON voltage drop
Leakage current
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Ambient temperature
Approved standards
G3R-IAZR1SN
20 ms max.
G3R-IDZR1SN
0.1 ms max.
G3R-IDZR1SN-1
15 ms max.
15 ms max.
10 Hz
20 ms max.
0.1 ms max.
10 Hz
1 kHz
1.6 V max.
5
μA
max.
100 MΩ min. between input and output
4,000 VAC, 50/60 Hz for 1 min. between input and output
10 to 55 Hz, 1.5-mm double amplitude
1,000 m/s
2
{approx. 100G}
Operating: -30°C to 80°C (with no icing)
Storage: -30°C to 100°C (with no icing)
UL File No. E64562
CSA File No. LR35535
TÜV File No. R9650094 (EN60950)
Operating: 45% to 85%
Approx. 18 g
Ambient humidity
Weight
■
Output Module
Item
Operate time
Release time
Response frequency
Output ON voltage drop
Leakage current
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Ambient temperature
Approved standards
G3R-OA202SZN
G3R-OA202SLN
1/2 of load power source cycle + 1 ms max.
1/2 of load power source cycle + 1 ms max.
20 Hz
G3R-ODX02SN
1 ms max.
2 ms max.
100 Hz
G3R-OA201SN
1.6 V max.
1.5 mA max.
1 mA max.
100 MΩ min. between input and output
4,000 VAC, 50/60 Hz for 1 min. between input and output
10 to 55 Hz, 1.5-mm double amplitude
1,000 m/s
2
{approx. 100G}
Operating: -30°C to 80°C (with no icing)
Storage: -30°C to 100°C (with no icing)
UL File No. E64562
CSA File No. LR35535
TÜV File No. R9650094 (EN60950)
Operating: 45% to 85%
Approx. 18 g
2.5 V max.
Ambient humidity
Weight
Solid State Relay
G3R-I/O
409
Engineering Data
Load Current vs. Ambient Temperature
G3R-OA202SZN(-UTU)/OA202SLN(-UTU)
G3R-ODX02SN(-UTU) (4 to 60 VDC)
G3R-OD201SN(-UTU) (40 to 200 VAC)
2
4-point mounting (see note 1)
2
4-point mounting (see note 1)
2
Load current (A)
Load current (A)
1.5
1.4
1
0.7
0.5
16-point mounting (see note 2)
Single-point
mounting
Load current (A)
1.5
1.4
1
16-point mounting (see note 2)
Single-point
mounting
1.5
1.1
1
4-point mounting (see note 1)
16-point mounting
(see note 2)
0.6
0.5
Single-point
mounting
0.5
−30 −20
0
20 30 40 55 60
80
100
−30 −20
0
20
40 55 60
80
100
−30 −20
0
20
40 55 60
80
100
Ambient temperature (
°
C)
Note: 1.
When
G730-Z0M04-B is mounted.
2.
When
G70A-Z0C16 is mounted.
Ambient temperature (
°
C)
Ambient temperature (
°
C)
Inrush Current Resistivity
Non-repetitive (Keep the inrush current to half the rated value if it occurs repetitively.)
G3R-OA202SZN(-UTU)/OA202SLN(-UTU)
G3R-ODX02SN(-UTU)
10
9
G3R-OD201SN(-UTU)
10
9
8
30
8
Inrush current (A)
Inrush current (A)
Inrush current (A)
10
30 50
100
300 500
1000 2000
7
6
5
4
3
2
1
7
6
5
4
3
2
1
0
10
30 50
100
300 500
1000 2000
20
10
10
30 50
100 200
500 1000
5000
0
Energized time (ms)
Energized time (ms)
Energized time (ms)
410
Solid State Relay
G3R-I/O

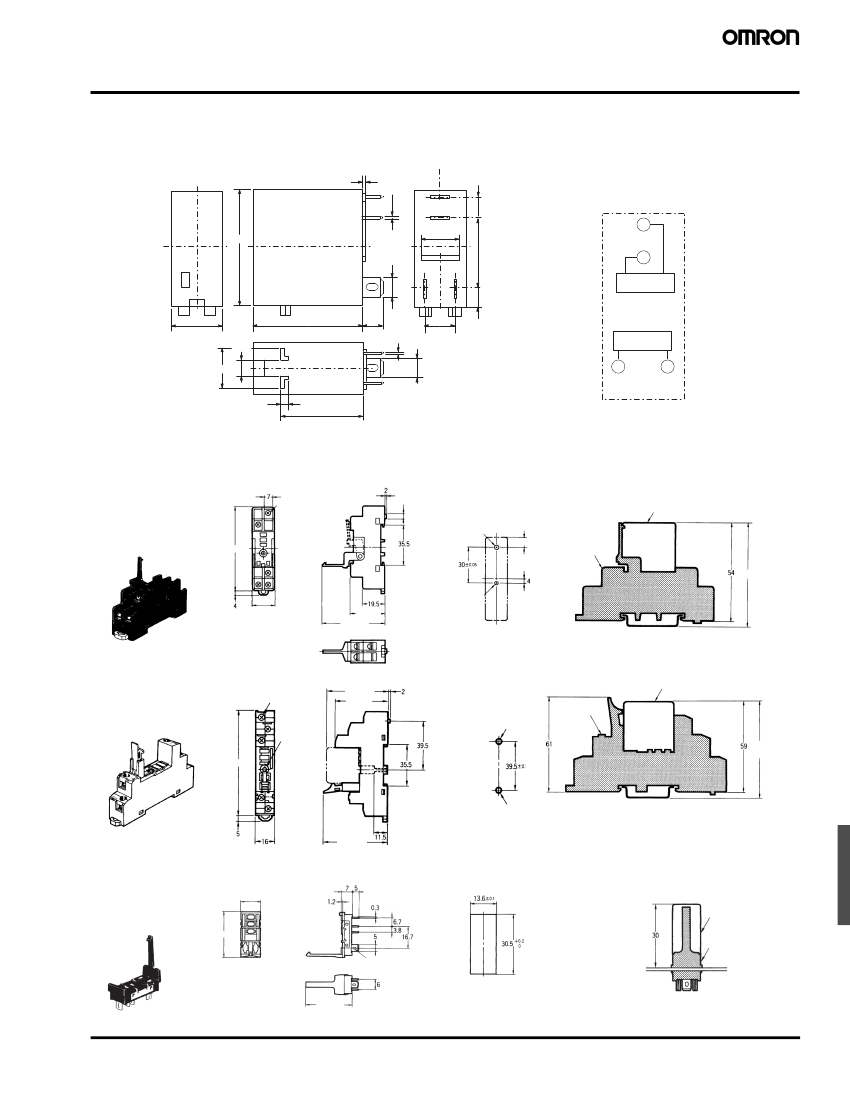

Dimensions
Unit: mm (inch)
■
G3R
1
3
0.5
29 max.
5.2
Terminal Arrangement/
Internal Connections
(Bottom View)
(+)
3
4
9.6
17.4
(−)
4.75
1
5
4
Load
13 max.
4
10
28 max.
5
0.5 4.75
7.5
4.7
Input
1
5
(−)
2
20
(+)
■
Connecting Sockets
P2RF-05
Five, M3.5×8
4 dia.
4.2-dia. hole
12
71.5 max.
P2RF-05 Socket
58.5 *
M3 (M3 x16) or
3.2-dia. hole
30 max.
54 max.
G3R I/O Relay
19.5 max.
* Indicates a value when using the PFP-@N
Supporting Rail.
The value is 67.5 when using the PFP-@N2.
P2RF-05-E
M3.5 screw
59 max.
48 max.
3.2-dia. hole
PFRF-05-E
Socket
G3R I/O Relay
3.5-dia.
hole
85.5 max.
62.5 **
(66.5)***
M3 or 3.5-dia. hole
** Indicates a value when using the PFP-@N
Supporting Rail with the P2RF-05-E
The value is 71.5 when using the PFP-@N2.
*** Indicates a value when using the PFP-@N
Supporting Rail with the P2RF-08-E
The value is 75.5 when using the PFP-@N2.
61 max.
P2R-05A
14.5 max.
G3R I/O Relay
35.5 max.
P2R-05A Socket
Five, 3x1.5-dia. hole
36 max.
(Panel thickness must
be
1.6 to 2.0 mm.)
(For
use when
mounting in a panel or in
the P2R-P mounting plate )
Solid State Relay
G3R-I/O
411
PCB Design
