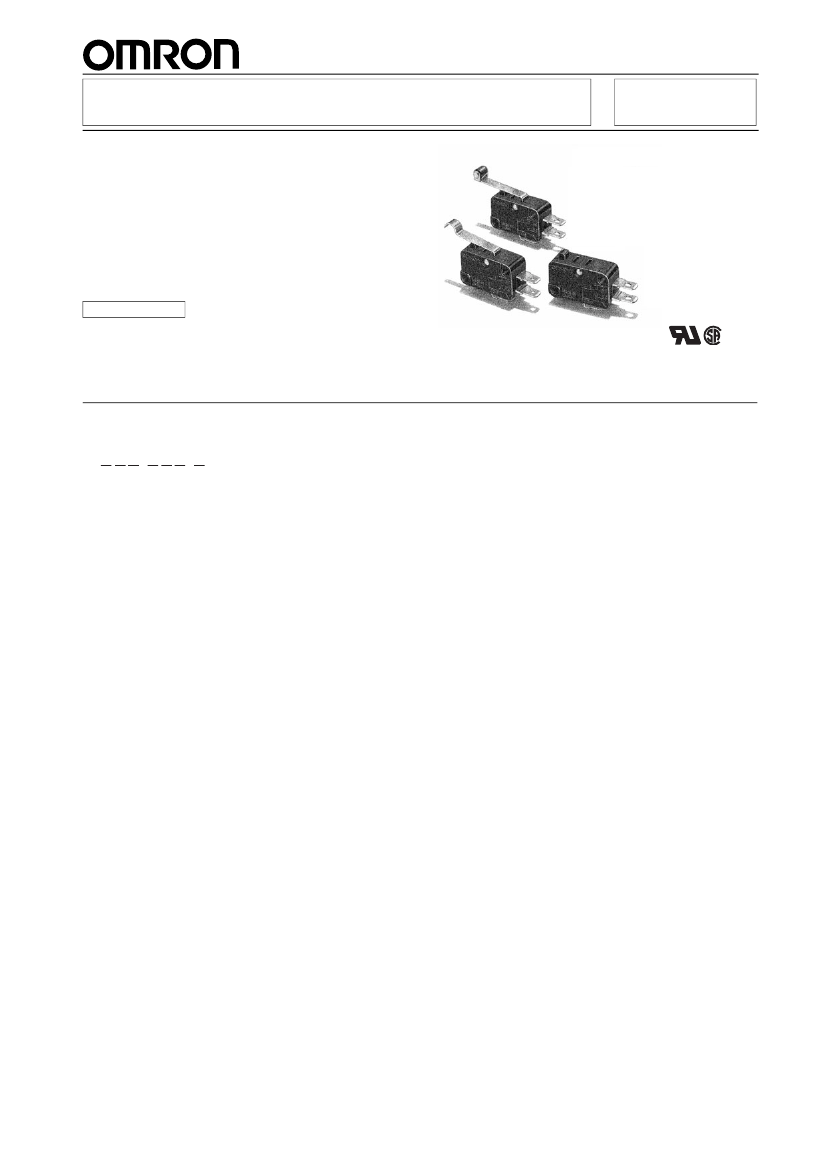

Miniature Basic Switch
Reliable Basic Switches in a Wide
Variation
■
Wide variation of best-selling microswitches with
V
switching currents of 10 to 21 A.
■
Can be used for interrupting current when doors
are opened or closed.
■
Available in two types of cases:
thermoplastic resin and thermosetting resin.
RoHS Compliant
Ordering Information
■
Model Number Legend
1
2
3
4
5
6
7
V-@@@-@@@-@
1. Ratings
21: 21 A at 250 VAC
16: 16 A at 250 VAC
15: 15 A at 250 VAC
10: 10 A at 250 VAC
2. Contact Gap
None: 1 mm (F gap)
G:
0.5 mm (G gap) (for remodelling)
3. Actuator
None: Pin plunger
1:
2:
3:
4:
5:
6:
1:
2:
3:
Short hinge lever
Hinge lever
Long hinge lever
Simulated roller lever
Short hinge roller lever
Hinge roller lever
SPDT
SPST-NC
SPST-NO
5. Terminals
A:
C:
6:
5:
4:
Note:
Solder terminals
Quick-connect terminals (#250)
3.92 N {400 gf}
1.96 N {200 gf}
0.98 N {100 gf}
These values are for the pin plunger models.
C2: Quick-connect terminals (#187)
6. Maximum Operating Force
7. Special Purpose (Models with Thermosetting Case Only)
None: Standard (80°C)
T:
Heat-resistive (150°C)
4. Contact Form
1
V
■
V
Characteristics
0.1 mm to 1 m/s (pin plunger models)
Mechanical:600 operations/min max. (pin plunger models)
Electrical:60 operations/min max.
100 MΩ min. (at 500 VDC)
15 mΩ max.
1,000 VAC, 50/60 Hz for 1 min between terminals of the same polarity
V-21 and V-16 models: 2,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and
ground, and between each terminal and non-current-carrying metal parts
V-15 and V-10 models: 1,500 VAC, 50/60 Hz for 1 min between current-carrying metal parts and
ground, and between each terminal and non-current-carrying metal parts
Operating speed
Operating frequency
Insulation resistance
Contact resistance
(initial value)
Dielectric strength
(see note 2)
Vibration resistance
(see note 3)
Shock resistance
(see note 3)
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Destruction: 1,000 m/s
2
{approx. 100G} max.
Malfunction: V-21/V-16/V-15: 300 m/s
2
{approx. 30G} max.
V-10:
200 m/s
2
{approx. 20G} max.
Mechanical: 50,000,000 operations min. (60 operations/min)
Electrical: V-21/V-16/V-15: 100,000 operations min. (30 operations/min)
(V-15 heat resistive: 20,000 operation min. (30 operations/min))
V-10:
300,000 operations min. (30 operations/min)
(V-10 heat resistive: 50,000 operation min. (30 operations/min))
IEC IP40
Class I
175
–25°C to 80°C (at ambient humidity of 60% max.) (with no icing or condensation)
–25°C to 150°C for heat-resistive model (at ambient humidity of 60% max.) (with no icing or conden-
sation)
85% max. (for 5°C to 35°C)
Approx. 6.2 g (pin plunger models)
Durability
(see note 4)
Degree of protection
Degree of protection against
electric shock
Proof tracking index (PTI)
Ambient operating tempera-
ture
Ambient operating humidity
Weight
Note:
1.
The data given above are initial values.
2.
The dielectric strength values shown in the table are for models with a Separator.
3.
For the pin plunger models, the above values apply for use at both the free position and total travel position. For the lever models,
they apply at the total travel position.
4.
For testing conditions, contact your OMRON sales representative.
■
Approved Standards
Consult your OMRON sales representative for specific models with standard approvals.
UL1054 (File No. E41515)/CSA C22.2 No. 55 (File No. LR21642)
Rated voltage
125 VAC
250 VAC
125 VDC
250 VDC
0.6 A
0.3 A
0.6 A
0.3 A
0.6 A
0.3 A
0.6 A
0.3 A
V-21
21 A, 1/2 HP
V-16
16 A, 1/2 HP
V-15
15 A, 1/2 HP
V-10
10 A, 1/3 HP
EN61058-01 (File No. 40025231, VDE approval)
Rated voltage
250 VAC
20 (4) A
V-21
16 (4) A
V-16
Testing conditions: 5E4 (50,000 operations), for models of V-21: T80 (0°C to 80°C), for models of V-16: T105 (0°C to 105°C)
5
