3324172371

Description
Dry Reed Relay, SPST, Momentary, 0.012A (Coil), 24VDC (Coil), 288mW (Coil), 1A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size126KB,2 Pages
ManufacturerStandex
Download Datasheet Parametric View All

3324172371 Overview

Dry Reed Relay, SPST, Momentary, 0.012A (Coil), 24VDC (Coil), 288mW (Coil), 1A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

3324172371 Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codeunknow
ECCN codeEAR99
body width5.8 mm
body height8 mm
Body length or diameter20.5 mm
Maximum coil current (DC)0.012 A
Coil operating voltage (DC)16.8 V
Coil power288 mW
Coil release voltage (DC)3.6 V
Coil resistance2200 Ω
Maximum coil voltage (DC)24 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load1A@200VAC
Maximum contact current (AC)1 A
Maximum contact current (DC)1 A
Contact (DC) maximum rated R load1A@200VDC
Maximum contact voltage (AC)200 V
Maximum contact voltage (DC)200 V
Contact/Output Power TypeAC/DC
JESD-609 codee3
Manufacturer's serial number3324172371
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours0.5 ms
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
method of packingBULK
physical size20.5mm x 5.8mm x 8mm
GuidelineUL
Relay actionMOMENTARY
Relay functionSPST
Relay typeDRY REED RELAY
release time0.1 ms
sealWATER PROOF
surface mountNO
Terminal surfaceTIN
Termination typeSOLDER
Base Number Matches1
Europe: +49 / 7731 8399 0
USA:
Asia:
+1 / 508 295 0771
+852 / 2955 1682
| Email: info@meder.com
| Email: salesusa@meder.com
| Email: salesasia@meder.com

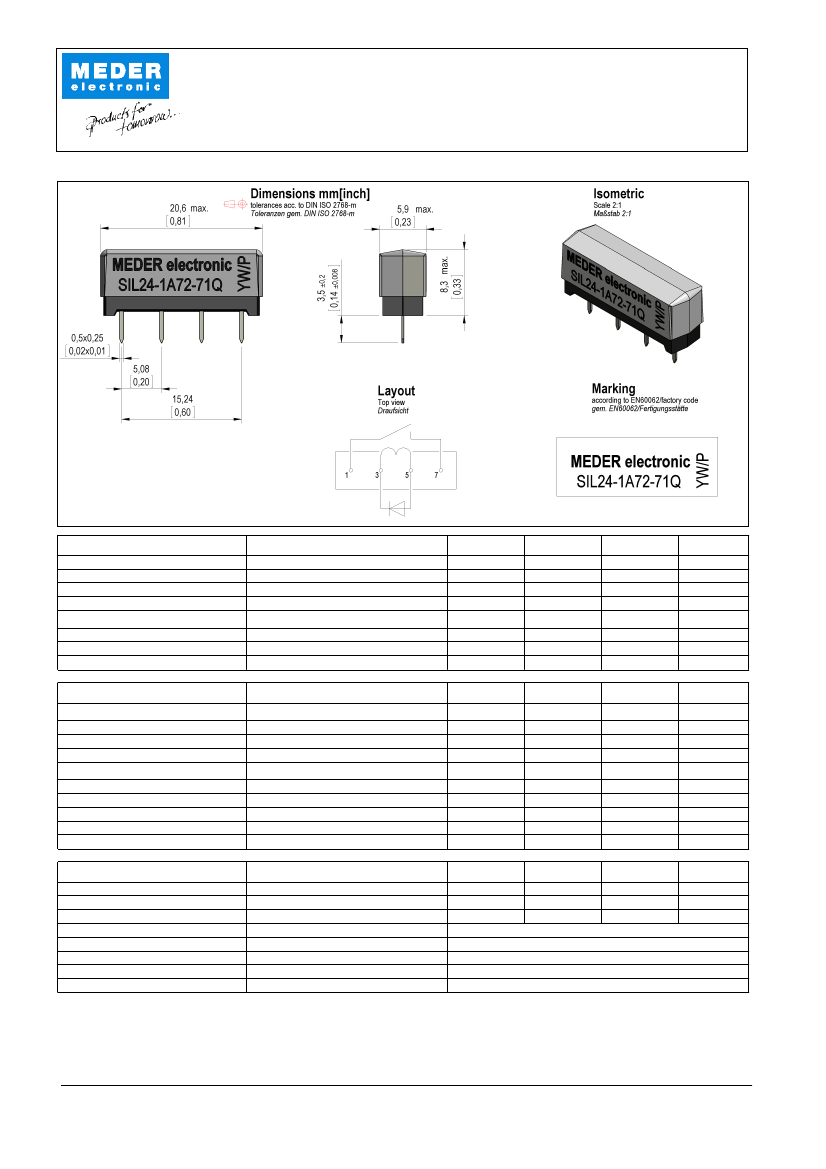

Item No.:
3324172371
Item:
SIL24-1A72-71Q
Coil Data at 20 °
C
Coil resistance
Coil voltage
Rated power
Coil current
Thermal resistance
Inductance
Pull-In voltage
Drop-Out voltage
Conditions
Min
Typ
Max
Unit
=
operating temperature + self heating
!
Contact data 66/3
Contact rating
Switching voltage
Switching current
Carry current
Contact resistance static
Insulation resistance
Breakdown voltage
Operate time incl. bounce
Release time
Capacity
Conditions
"
#$ %&" &$" $' (
not to exceed their individual max.'s
Min
Typ
Max
Unit
DC or Peak AC
DC or Peak AC
DC or Peak AC
) * + ,&
Start Value
- $. + &.
RH <45 %, 100 V test voltage
according to IEC 255-5
measured with 40% overdrive
measured with no coil excitation
@ 10 kHz across open switch
/
0
!
*
*
1
Special Product Data
Dielectric Strength Coil/Contact
Insulation resistance Coil/Contact
Capacity Coil/Contact
Housing material
Connection pins
Magnetic Shield
Approval
Reach / RoHS conformity
Conditions
according to EN 60255-5
RH <45%, 200 VDC measuring voltage
@ 10 kHz
Min
Typ
Max
2
/
Unit
0
1
epoxy resin
CuFe2P, tin plated
yes
UL-File No. NRNT2.E156887 / NRNT8.E156887
yes
Modifications in the sense of technical progress are reserved
Designed at:
Last Change at:
03.12.08
22.09.11
Designed by:
Last Change by:
THAUKE
THAUKE
Approval at:
Approval at:
22.09.11
Approval by:
Approval by:
CRUF
Version:
4
