TRG70E480-11E03 datasheet, PDF

Datasheet> All Categories > Power/power management> TRG70E480-11E03

TRG70E480-11E03: DescriptionPlug-in AC adapter 70w 90-264vac 48v 1.5A 2.1mm DC; CategoryPower/power management; File Size474KB，1 Pages; ManufacturerCincon; Environmental Compliance

Download Datasheet Parametric Compare View All

TRG70E480-11E03 Overview

Plug-in AC adapter 70w 90-264vac 48v 1.5A 2.1mm DC

TRG70E480-11E03 Parametric

Parameter Name	Attribute value
Maker	Cincon
Product Category	Plug-in AC adapter
RoHS	yes
Installation style	Desk
Input voltage (nominal)	90 VAC to 264 VAC
Number of outputs	1
Output power rating	70 W
Output voltage (channel 1)	48 V
Output current (channel 1)	1.5 A
DC output connector	2.1 mm Barrel Plug
DC output wire length	1800 mm
AC plug included/required	Required
Commercial/Medical	Commercial

Preview

Download Datasheet

View All

TRG70E

NEW

INPUT SPECIFICATIONS:

Specifications

Voltage ...............................................................................................................................................................................................................................90 ~ 264Vac

Frequency ..............................................................................................................................................................................................................................47 to 63Hz

Inrush Current..........................................................................................................................................................................................................80A max. @240Vac

Conducted EMI....................................................................................................................................................................................................... CISPR/FCC Class B

Isolation ..................................................................................................................................................................................................... lnput to output =4,242VDC

Leakage Current...............................................................................................................................................................................................................0.25mA max.

Short Circuit Protection ......................................................................................................................................................................................................Continuous

Cooling...................................................................................................................................................................................................................Natural Convection

Over Voltage Protection...................................................................................................................................................................................................................Yes

ENVIRONMENTAL CHARACTERISTICS:

Operating Temperature ......................................................................................................................................................

.................................................... 0 ~ 40˚C

Storage Temperature ..................................................................................................................................................................................

..........................-20 ~ 85˚C

Features

•

TRG70DXX -

Model No.

70W Single Output

• Meets EN55022 Class B and

Universal lnput : 90-264VAC

CISPR/FCC Class B, Conducted

2 pole AC Inlet IEC320-C8

• High Efficiency 85% Typical

Class II Insulation

• CEC Level

Compliant

Continuous Short Circuit Protection (Output Cable Length 1800mm )

( TRG70E12 : Output Cable

Length 1220mm )

( TRG70E15 : Output Cable

Ordering information

Length 1220mm )

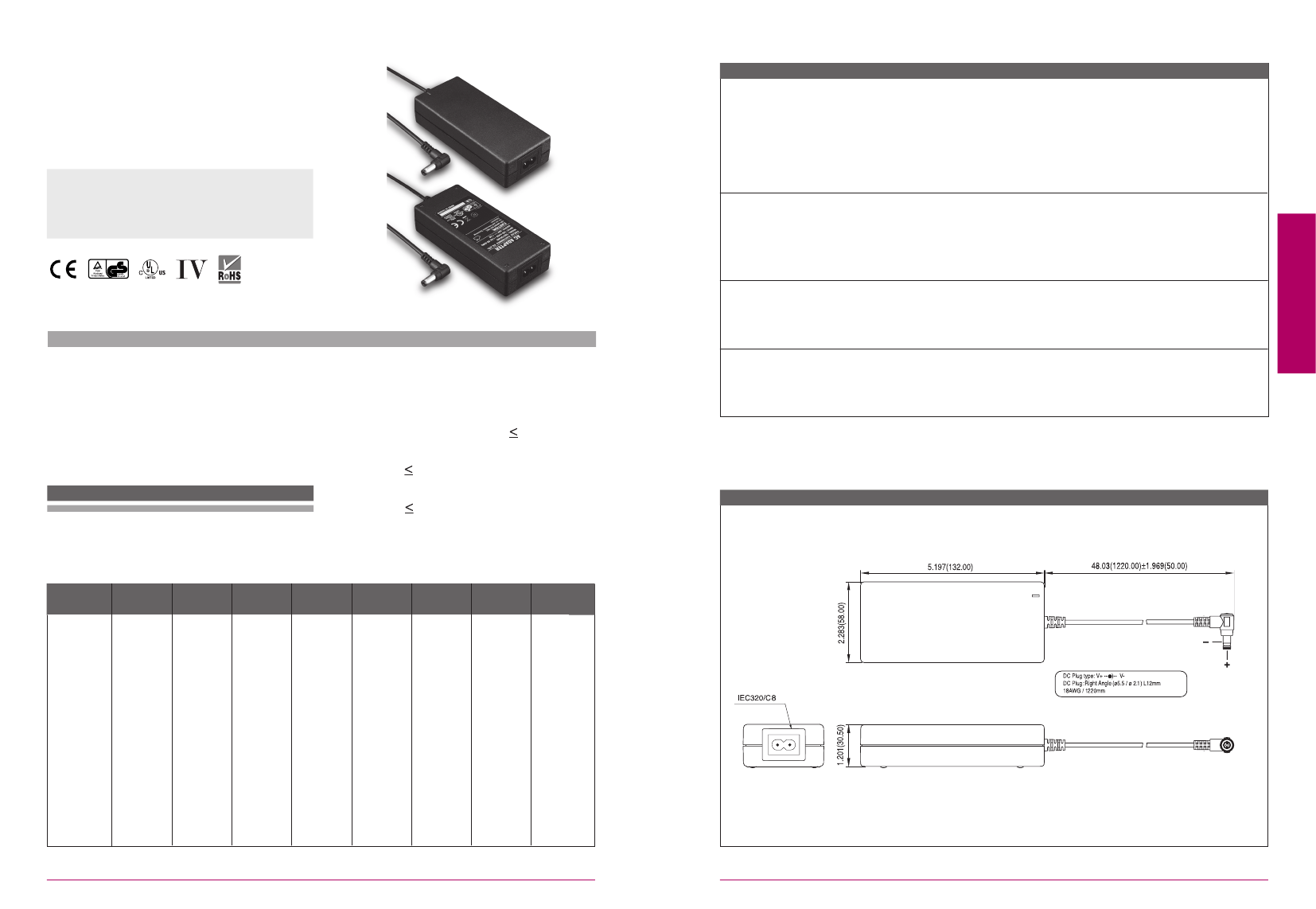

MECHANICAL CHARACTERISTICS:

Dimensions ..................................................................................................................................................132.00 x 58.00 x 30.50mm(5.197 x 2.283 x 1.201 Inches)

Weight ..................................................................................................................................................................................................................... 345g (0.77 Pounds)

NOTE:

1. Voltage setpoint at 60% full load.

2. Add a 0.1µF ceramic capacitor and a 10µF E.L. capacitor to output for Ripple & Noise measurement @20MHz BW.

3. Line regulation measured from 100Vac to 240Vac with full load.

4. Load regulation measured from 60% to 100% full load and from 60% to 20% full load (60% +/- 40% full load)

Mechanical Specification

All Dimensions In Inches(mm)

Tolerance

Inches: x.xxx= ±0.02

Millimeters: x.xx= ±0.5

DC Plug Type

OVP Option

DC Cable Length and Type

* Please see Page235 for

more detailed descriptions

E : With OVP Option

01 : 720mm

02 : 1200mm

03 : 1800mm

11 : 720mm with Ferrite Core

12 : 1200mm with Ferrite Core

13 : 1800mm with Ferrite Core

* 18AWG / UL1185

MODEL

TRG70E120

OUTPUT

VOLTAGE

12V

OUTPUT

CURRENT

5.5 A

MINI.

LOAD

RIPPLE &

NOISE

120mVp-p

VOLTAGE

SETPOINT

± 2%

LINE

LOAD

REGULATION REGULATION

± 1%

± 5%

%EFF

81% Typ.

TRG70E150

15V

4.6 A

150mVp-p

± 2%

± 1%

± 3%

82% Typ.

TRG70E180

18V

3.9 A

180mVp-p

± 2%

± 1%

± 2%

84% Typ.

TRG70E190

19V

3.7 A

190mVp-p

± 2%

± 1%

± 2%

84% Typ.

TRG70E240

24V

3.0 A

240mVp-p

± 2%

± 1%

± 2%

86% Typ.

TRG70E480

48V

1.5 A

480mVp-p

± 2%

± 1%

± 2%

86% Typ.

Typical at 25˚C, nominal line and 75% load, unless otherwise Specified

T R G 7 0 E

70W

SWITCHING ADAPTER

OUTPUT SPECIFICATIONS:

Holdup Time ............................................................................................................................................................................................................8mS typ. @115Vac
