YTW-21-03-T-5-250-150 datasheet, PDF

Datasheet> All Categories > The connector> The connector> YTW-21-03-T-5-250-150

YTW-21-03-T-5-250-150: DescriptionBoard Stacking Connector, 105 Contact(s), 5 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size619KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

YTW-21-03-T-5-250-150 Overview

Board Stacking Connector, 105 Contact(s), 5 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

YTW-21-03-T-5-250-150 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2094396865
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
YTEOL	8.57
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	105

Preview

Download Datasheet

View All

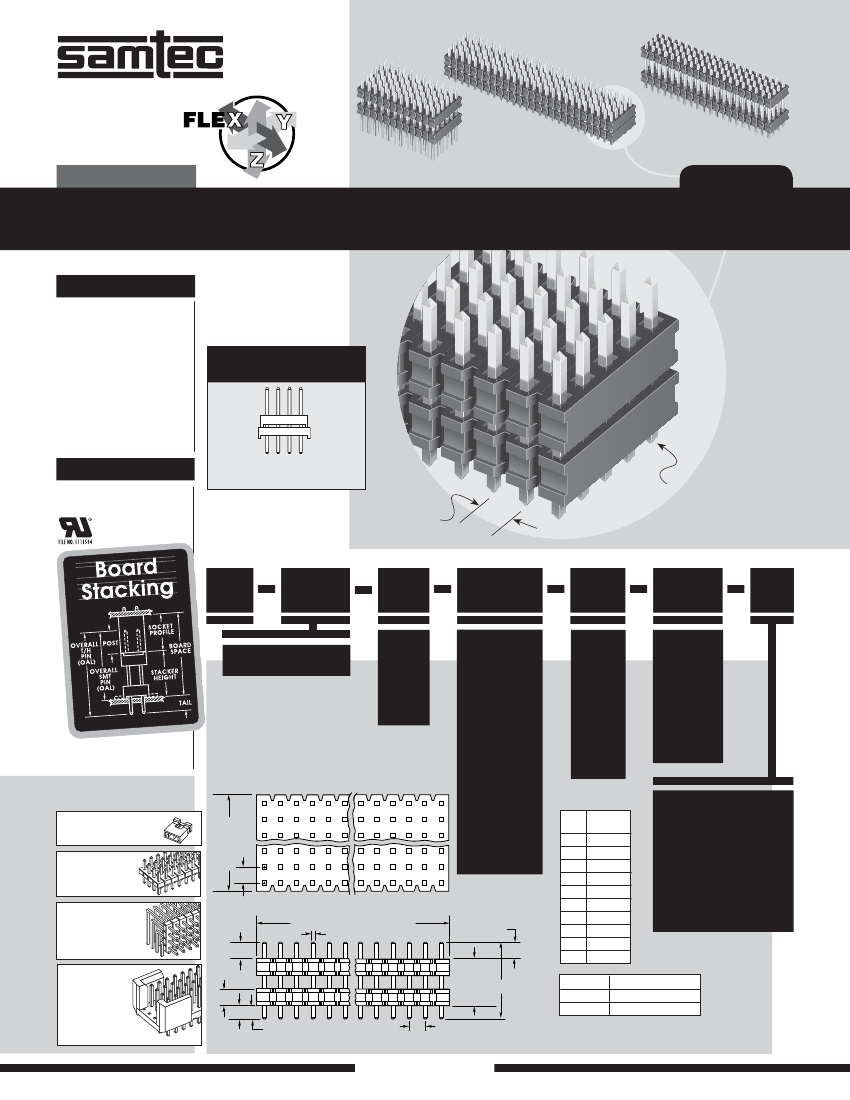

F-215 SUPPLEMENT

YTW–26–02–T–5–250–050

YTW–20–03–G–Q–400–085

(2,00 mm) .0787"

YTW–12–10–S–6–300–215

YTW SERIES

HIGH DENSITY BOARD STACKER

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?YTW

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

RoHS Compliant:

Yes

Lead–Free Solderable:

Wave only

Mates with:

YTQ, YTS, YTE

OTHER

SOLUTIONS

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

– F

Paste In Hole (PIH) processing.

Contact Samtec ASP Group.

Choice of 4, 5 or 6 row

(2,00 mm)

.0787" pitch

YTW

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

below.

PLATING

OPTION

ROW

OPTION

STACKER

HEIGHT

TAIL

SPEC

–G

= 20µ" (0,51 µm)

Gold contact area,

Gold ﬂash on tail

–Q

= Four

Row

02 thru 50

–“XXX”

= Stacker

Height

In inches

(0,13 mm)

.005"

increments

Example: –250

= (6,35 mm)

.250"

–S

= 30µ" (0,76 µm)

Gold contact area,

Tin on tail

(Style –01 &

–02 not available)

300

–5

= Five

Row

Note:

This Series is non-standard,

non-returnable.

–6

= Six

Row
