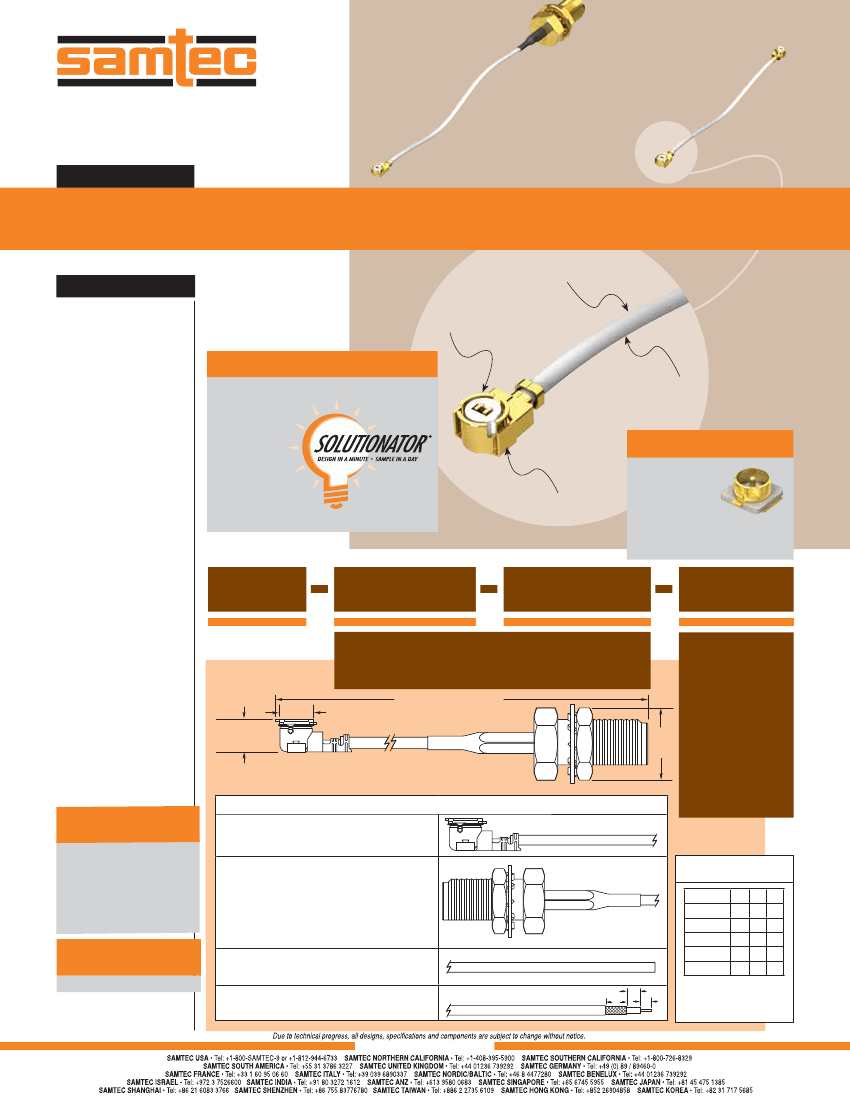

RF-13
MH113–MH1RP–MH1RP–0300
MH113–MH1RP–01BJ1–0300
MH113* SERIES
MICRO HIGH FREQUENCY RF CABLES
U.FL Type
SPECIFICATIONS
For complete specifications see
www.samtec.com?MH113
Outer Contact Material:
Au plated Phosphor Bronze
Center Contact Material:
Au plated Phosphor Bronze (MHX)
Au plated BeCu (SMA)
Insulator Material:
PBT (MHX)
PTFE (SMA)
Operating Temperature:
-40°C to +90°C
Voltage Rating:
170V max
Dielectric Withstanding
Voltage:
200 Vrms
Frequency Range:
0~3 GHz
Contact Resistance:
Center Contact: 6mΩ max
Outer Contact: 2mΩ max
Insulator Resistance:
5,000 MΩ
Impedance:
50Ω
RoHS Compliant:
Yes
Micro High Frequency RF,
MHF or SMA Bulkhead
THINK OUTSIDE THE CATALOG
• Create a full system:
cable assembly
and board
level mates,
50Ω and
75Ω
solutions
• 24-hour
samples
on standard
products
• Visit: rf.samtec.com
(1,13 mm) .045"
Diameter Cable
MATING SOLUTIONS
• Micro RF PCB
connectors for
Micro High
Frequency RFs
• MH1RP end mates
with RSP-122811-01
(Cycles: 30 max.)
Mating PCB
connectors available
1,13 mm Cable:
Impedance:
50Ω
Capacitance:
95 pF/meter
Max Attenuation
(cable only):
2dB @ 1GHz
Conductor Size:
32 AWG, (1,13 mm) .045" dia.
Conductor Material:
Silver Plated Copper
Conductor Resistance:
0.60Ω/meter max
Insulator Diameter:
(0,66 mm) .026"
Insulator Material:
FEP
Shield Material:
Tinned Copper
Jacket Material:
FEP
Jacket Diameter:
(1,13 mm) .045" dia
Jacket Temp Rating:
-40°C to +90°C
RoHS Compliant:
Yes
MH113
END 1
CONNECTOR
END 2
CONNECTOR
OVERALL
LENGTH
Specify
END OPTIONS
from chart
XXXX = OAL (millimeters)
(2,69) .106 DIA
(2,50) .098 max.
(Mated Height)
(8,00)
.315
Hex.
–0030
= 1.18" (30 mm)
–0050
= 1.97" (50 mm)
–0100
= 3.94" (100 mm)
–0150
= 5.91" (150 mm)
–0300
END OPTIONS
–MH1RP = MHF1 Type Plug
(30µ" (0,76 µm) Gold on Center Contact,
Gold Flash on Shell)
–01BJ1 = SMA
Straight Bulkhead Jack
–01BR1 = SMA
Straight Bulkhead Jack,
Reversed Polarity
–01SB1 = SMA
Straight Jack, Sealed Bulkhead
–01SR1 = SMA
Straight Jack, Sealed Bulkhead,
Reversed Polarity
(30µ" (0,76 µm) Gold on Center Contact,
Gold Flash on Shell)
–SING
=
Single Ended
(End 2 callout)
XXXXXX
=
Stripped & Tinned
(End 2 callout)
B
C
A
= 11.81" (300 mm)
ALSO AVAILABLE
(MOQ Required)
• Additional stripping and
tinning options
• Additional end connector
combinations
• Overall lengths
Contact Samtec.
STRIPPED & TINNED
(Dimensions in mm)
CALLOUT
–303030
–303040
–403030
–403040
–404040
A
3.0
3.0
4.0
4.0
4.0
B
3.0
3.0
3.0
3.0
4.0
C
3.0
4.0
3.0
4.0
4.0
EXTRACTION
TOOL
• –MH1RP = RSP-122893-01
*
MH113 Series was
previously RF113 Series
Both center conductor and
braid shield are stripped,
only the center
conductor is tinned.
WWW.SAMTEC.COM
