ZPSD502B1V-30UI datasheet, PDF

ZPSD502B1V-30UI: DescriptionMultifunction Peripheral, CMOS, PQFP80,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size7MB，141 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

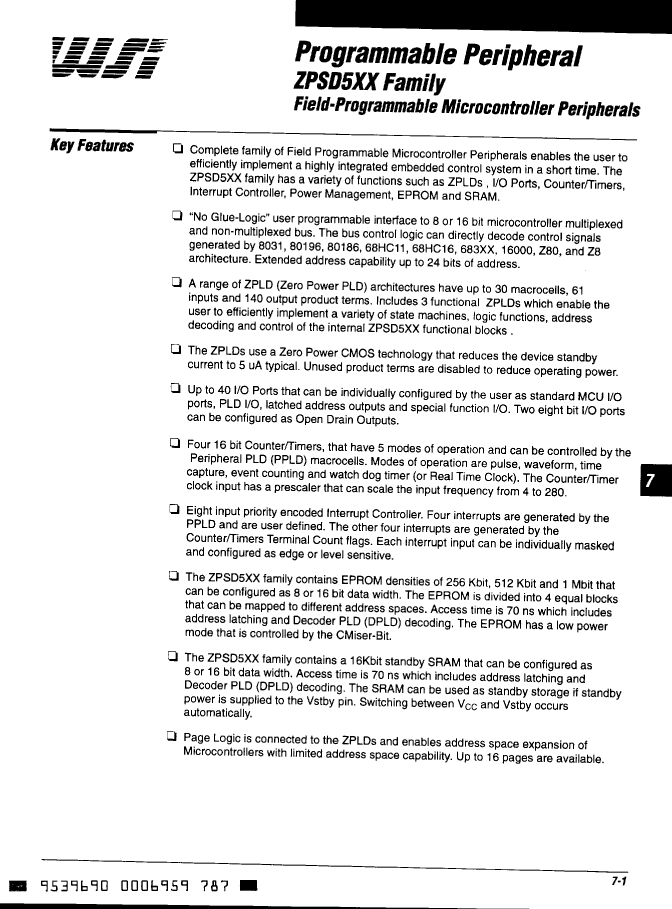

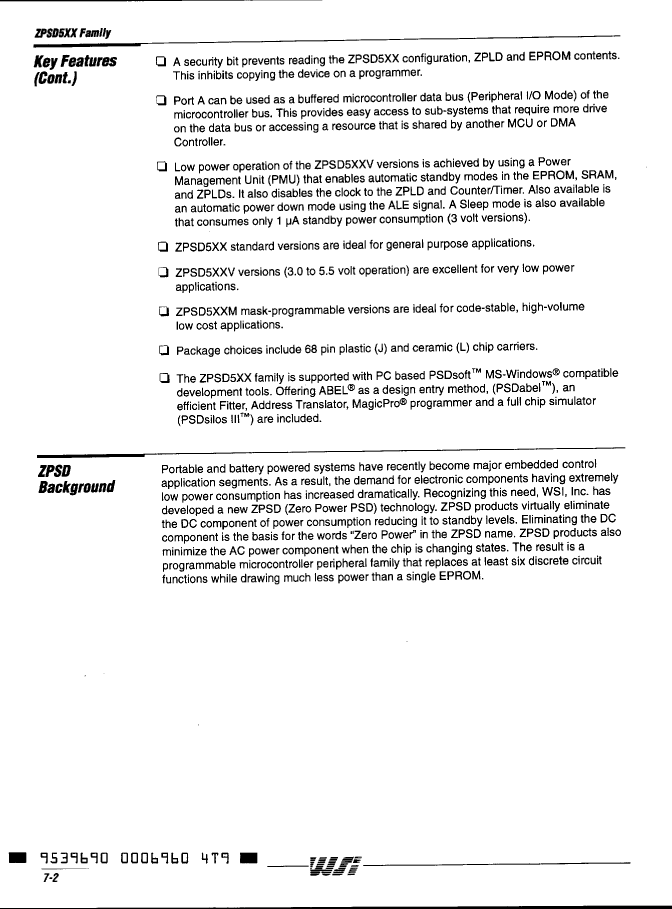

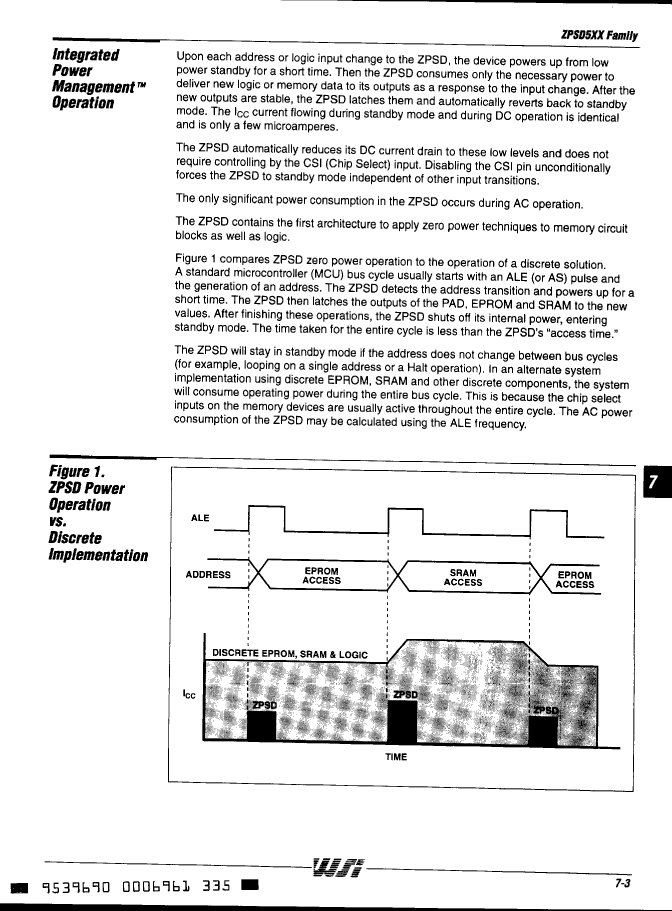

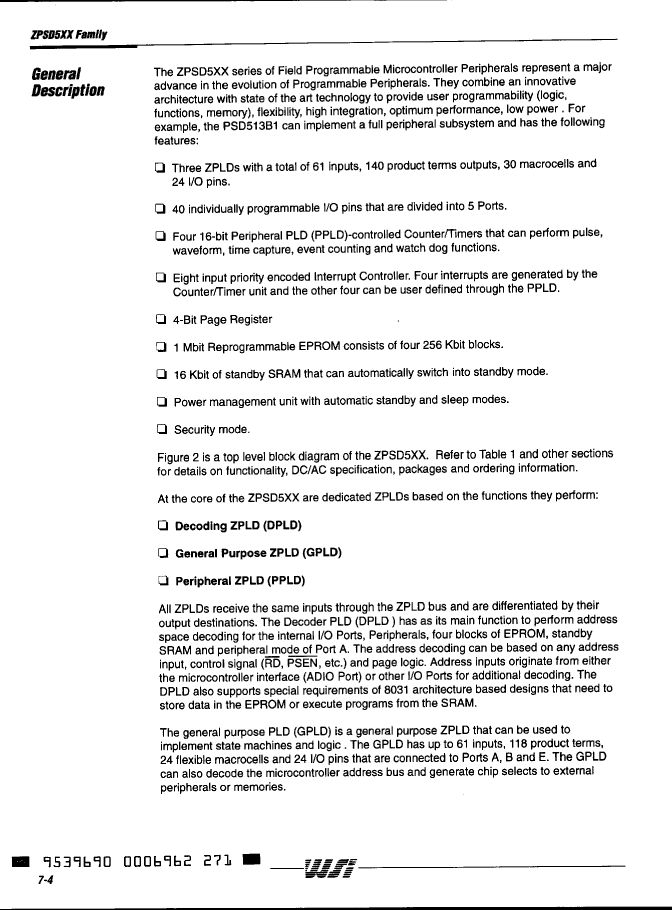

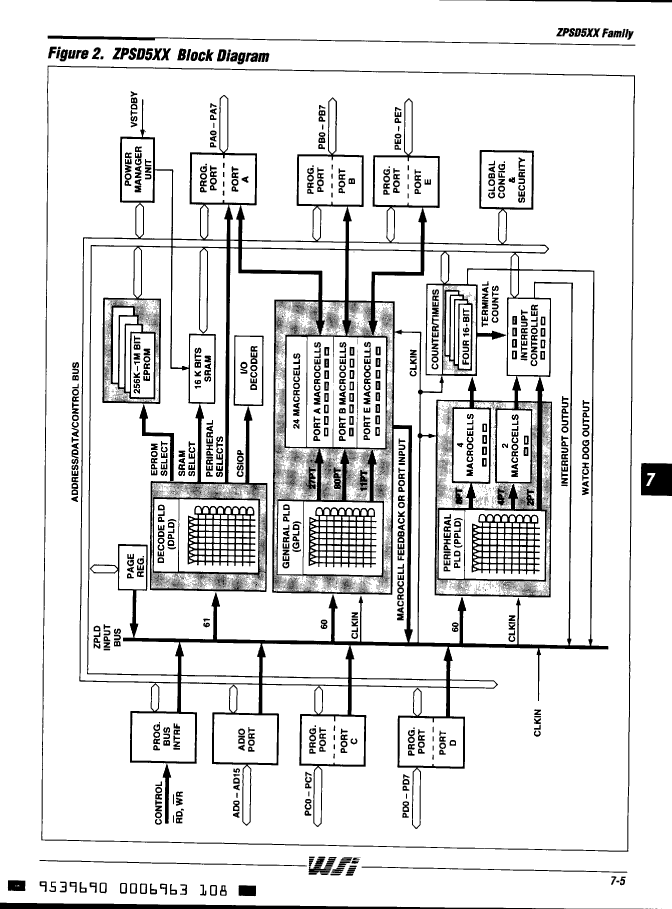

ZPSD502B1V-30UI Overview

Multifunction Peripheral, CMOS, PQFP80,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1413314202
package instruction	QFP, QFP80,.64SQ
Reach Compliance Code	unknown
Maximum access time	3e-7 ns
Other features	32K X 16 REPROGRAMMABLE EPROM; GENERAL PURPOSE ZPLD, DECODING ZPLD & PERIPHERAL ZPLD
Address bus width	16
boundary scan	NO
Bus compatibility	8031; 80196; 80196SP; 80186; 68HC11; 68HC16; 68330; 68331; 68340; 68302; 16000; Z80; Z8
maximum clock frequency	17.24 MHz
External data bus width	16
JESD-30 code	S-PQFP-G80
JESD-609 code	e0
Number of I/O lines	40
Number of serial I/Os
Number of terminals	80
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP80,.64SQ
Package shape	SQUARE
Package form	FLATPACK
power supply	3 V
Certification status	Not Qualified
RAM (number of words)	512
ROM size (bits)	512 Bits
Maximum standby current	0.000005 A
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
UV erasable	N
