410-43-214-10-001000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 410-43-214-10-001000

410-43-214-10-001000: DescriptionIC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder, ROHS COMPLIANT; CategoryThe connector socket; File Size232KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

410-43-214-10-001000 Overview

IC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder, ROHS COMPLIANT

410-43-214-10-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.194 inch
subject depth	0.165 inch
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
Device slot type	IC SOCKET
Type of equipment used	DIP14
Shell material	POLYETHYLENE
JESD-609 code	e3
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	14
PCB contact pattern	STAGGERED
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

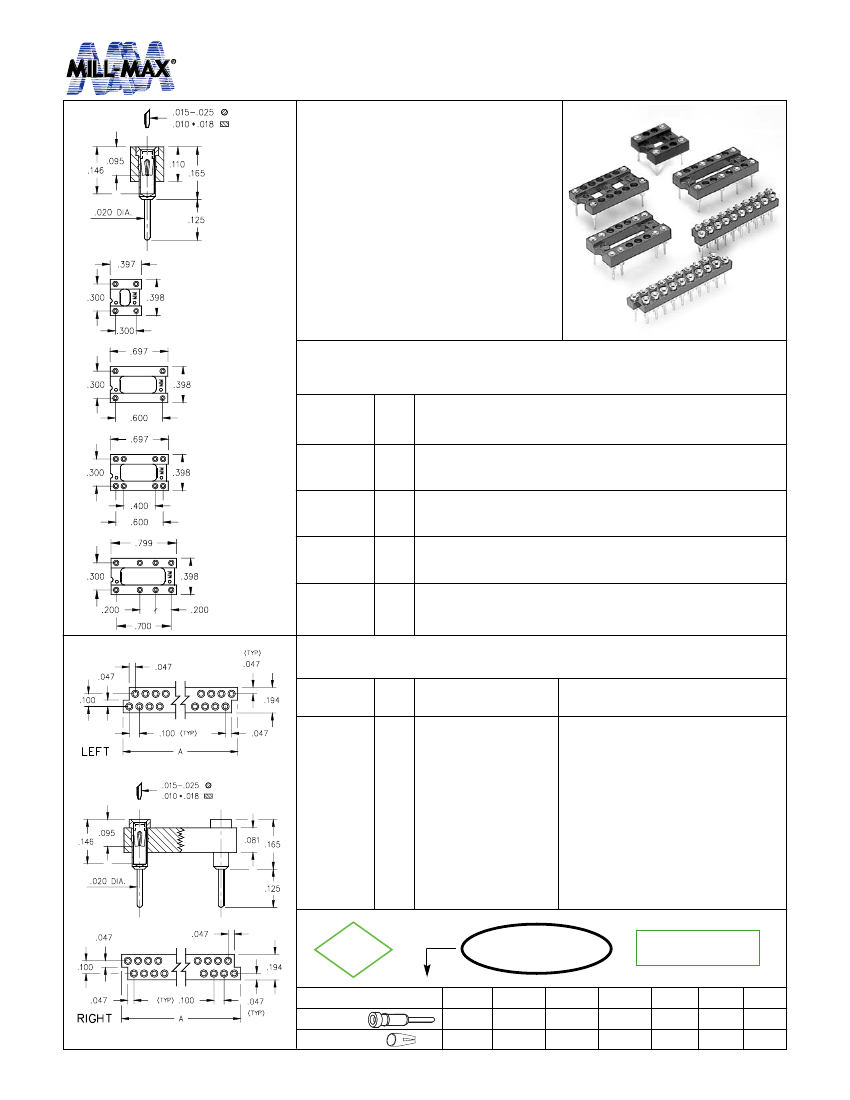

MISCELLANEOUS SOCKETS

Relay & Zig-Zag Sockets

Series 110, 410

•

Relay sockets accept devices with I/O

pins on .100” grid.

•

Zig-Zag strip sockets are suitable for

IC’s and memory chips with staggered

double row patterns.

•

Series 110 and 410 use MM #1001

receptacles. See page 134 for details.

•

Receptacles use Hi-Rel, 4 finger #30

BeCu contact rated at 3 amps. See page

208 for details.

•

Insulators are high temp. thermoplastic.

Fig. 1

Selectively Loaded Sockets For Dual-In-Line Relays

Fig. 2

No. of

pins

Ordering Information

110-XX-308-10-001000

110-XX-314-10-001000

Fig. 3

Fig. 1

Fig. 2

Fig. 3

Fig. 4

110-XX-314-10-002000

110-XX-316-10-003000

Staggered (Zig-Zag) Strip Sockets

Dim ‘A’

0.747

0.847

1.047

1.247

1.447

No. of

pins

Insulator Body

Left, Stackable

Right, Stackable

Left, Stackable

Right, Stackable

Left, Stackable

Right, Stackable

Left, Stackable

Right, Stackable

Left, Stackable

Right, Stackable

Ordering Information

410-XX-214-10-001000

410-XX-214-10-002000

410-XX-216-10-001000

410-XX-216-10-002000

410-XX-220-10-001000

410-XX-220-10-002000

410-XX-224-10-001000

410-XX-224-10-002000

410-XX-228-10-001000

410-XX-228-10-002000

For RoHS compliance

select plating code.

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10µ” Au

30µ” Au

10µ” Au

30µ” Au

200µ”Sn/Pb

10µ” Au

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb

200µ”Sn/Pb 200µ”Sn

200µ”Sn

30µ” Au

200µ”Sn

w w w. m i l l - m a x . c o m

516-922-6000
