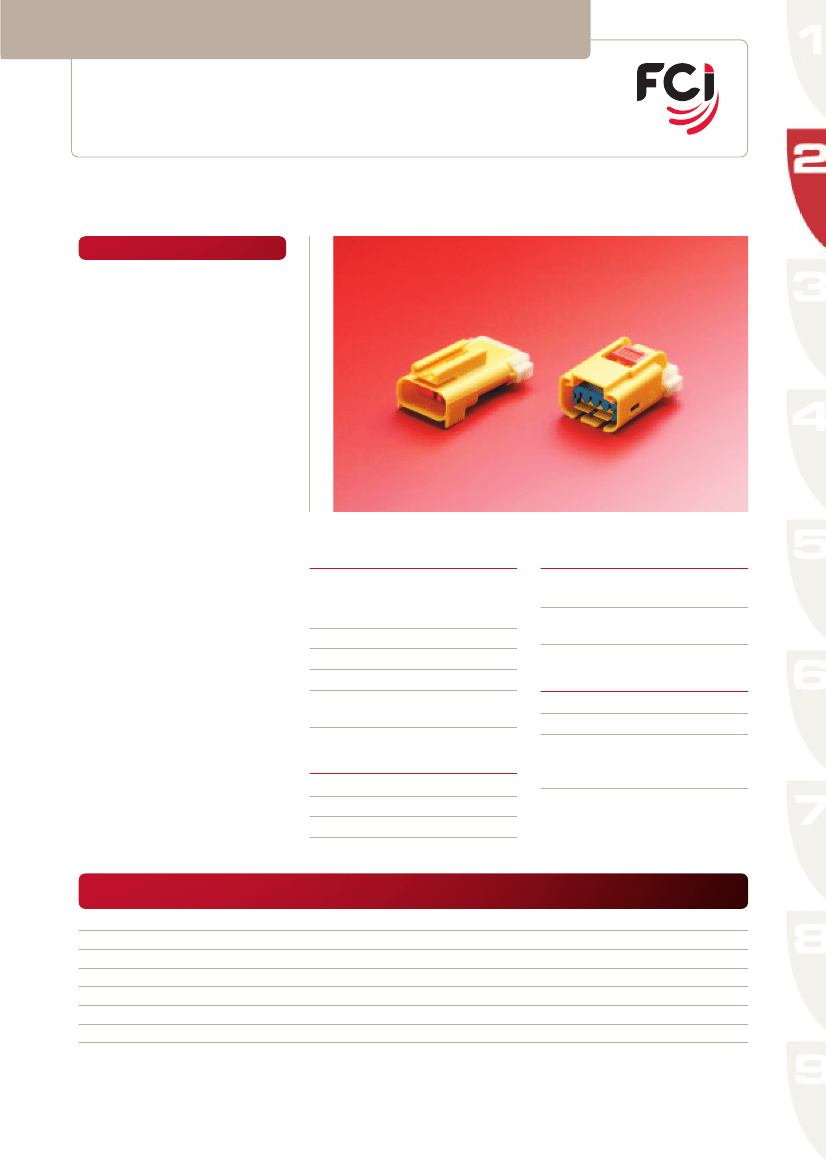

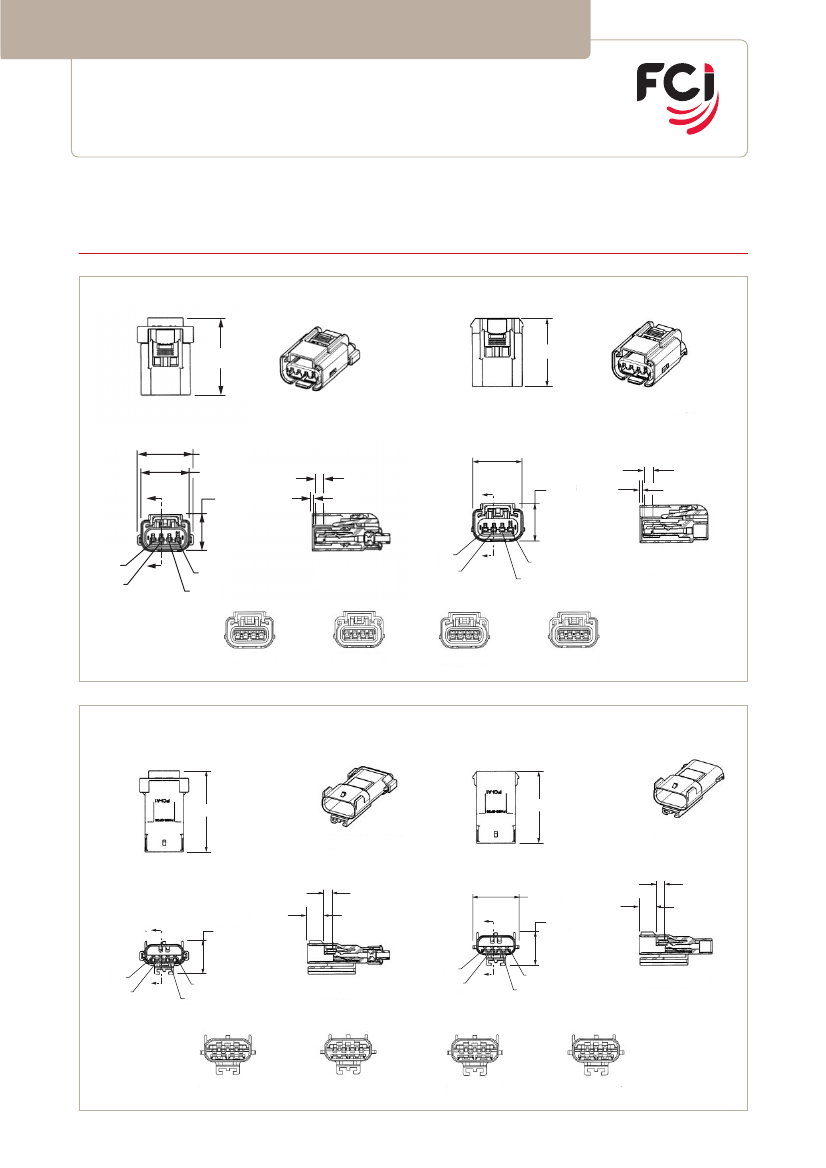

Safety Restraints Interconnection System
Coupling connectors
Apex
4 way coupling housing for 1.5 mm terminals
Features
•
4 position male and female housing
•
•
•
•
with or without sealing available
Single row connector, pitch 4.0 mm
Circumferential interface seal on
female housing
Female housing with connector
position assurance (CPA)
Prefixed terminal position
assurance (TPA) actuated from
front side
Rear sealing ensured by mat-seal,
seal retainer attached
Shorting clip available for male
housing
Shorting clip available beetwen
circuits1+2, 3+4 or on both
Fastening clip feature integrated
with male housing
Several colours and codes available
Unsealed housing supplied without
retainer
•
•
•
•
•
•
Performance characteristics
•
Temperature range :
from -40°C to +125°C
Connector compatibility
•
Usable terminals:
female terminals
Apex 1.5 mm
Apex 1.5 mm
•
Contact retention force :
•
Contact insertion force :
•
Connector mating force :
•
Sealing protection:
•
Acceptable wire range:
22, 20, 18 & 16 AWG
> 90 N
< 15 N
< 75 N
IPX 9 K
•
Matable with:
male terminals
Tooling
•
TPA removal tool:
•
Cavity plug:
Consult us
•
Terminal removal tool: Consult us
Seal retainer
comes with two plugs to plug circuit
1+2, 3+4 or no plugs
Construction
•
Housing material:
•
Interface seal:
•
Mat seal:
PA
Silicone
Silicone
Part Numbers
54550406
54550410
54550415
54550409
54550413
54550414
54550416
No. of
position
2
4
4
2
4
4
4
Terminal
size
1.5 mm
1.5 mm
1.5 mm
1.5 mm
1.5 mm
1.5 mm
1.5 mm
Type
Female housing
Female housing
Female housing
Male housing
Male housing
Male housing
Male housing
Sealed
Yes
No
Yes
Yes
No
No
Yes
Shorting
clip
-
-
-
Pos. 1+2
Pos. 1+2, 3+4
Pos. 1+2
Pos. 1+2, 3+4
Colour
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Rev 01/04
2.43
Safety Restraints Interconnection System
Coupling connectors
Apex
4 way coupling housing for 1.5 mm terminals
Dimensional characteristics
Female housing
PN: 54550406
PN: 54550410
37.95
32.50
ISOMETRIC VIEW
ISOMETRIC VIEW
27.30
24.00
A
17.93
(4.22)
(1.39)
A
24.00
( 4.22 )
17.93
( 1.39 )
#4
#4
#3
A
A
#1
#2
SECTION A-A
#3
#1
#2
SECTION A-A
POLARIZATION "A"
POLARIZATION "B"
POLARIZATION "C"
POLARIZATION "D"
PN: 54550409
Male housing
PN: 54550414
45.80
40.40
ISOMETRIC VIEW
ISOMETRIC VIEW
( 5.00 )
( 5.00 )
( 9.40 )
A
18.51
A
25.40
( 9.40 )
18.51
#1
#1
#2
A
#4
#3
#2
A
#4
#3
SECTION A-A
SECTION A-A
POLARIZATION "A"
POLARIZATION "B"
POLARIZATION "C"
POLARIZATION "D"
2.44
Rev 01/04
