BL-HF035: DescriptionSingle Color LED, Ultra Red, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size81KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-HF035 Overview

Single Color LED, Ultra Red, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	SURFACE MOUNT, 0805, 2 PIN
Reach Compliance Code	unknown
color	ULTRA RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	40.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1 mm
method of packing	BULK
peak wavelength	660 nm
shape	RECTANGULAR
size	1.4 mm
surface mount	YES
Terminal pitch	2.1 mm
perspective	140 deg
Base Number Matches	1

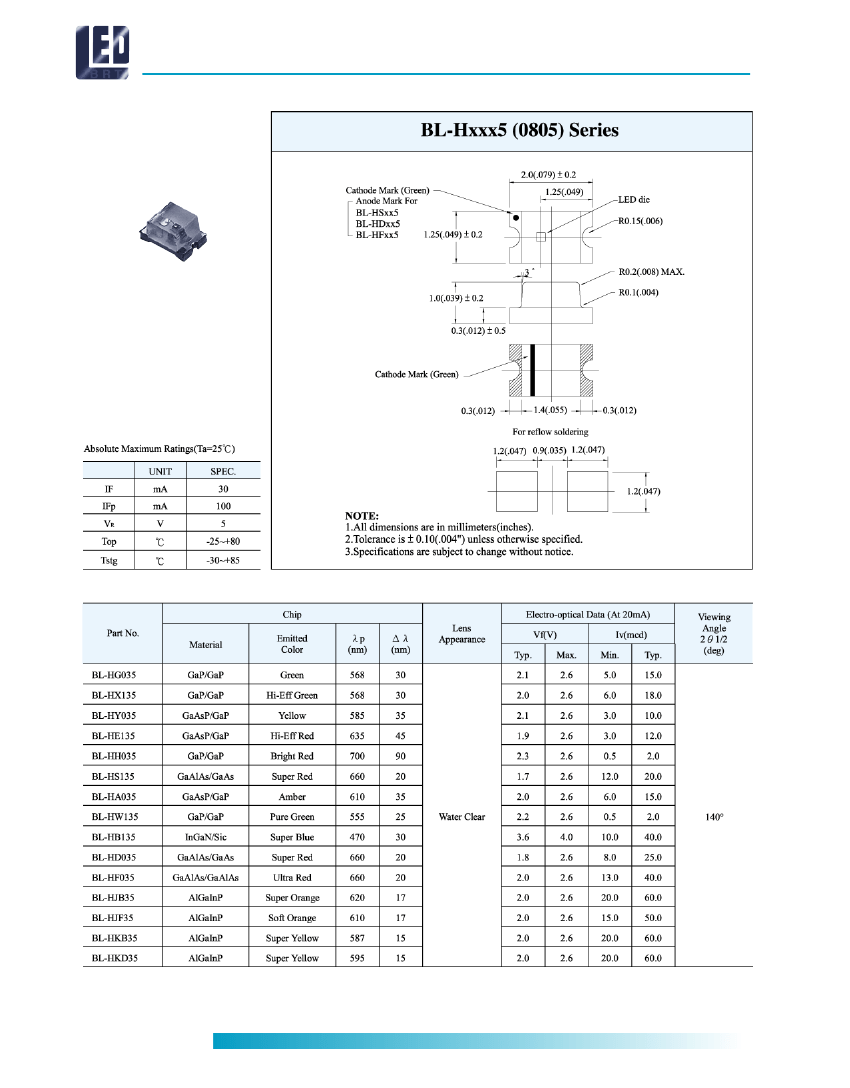

Surface Mount Chip LED Lamps

BL-H Series 0805

AMERICAN BRIGHT

8

w w w. a m e r i c a n b r i g h t l e d . c o m

.

	BL-HF035	BL-HJB35	BL-HA035	BL-HB135
Description	Single Color LED, Ultra Red, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN	Single Color LED, Super Orange, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN	Single Color LED, Amber, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN	Single Color LED, Super Blue, Water Clear, 1.4mm, SURFACE MOUNT, 0805, 2 PIN
package instruction	SURFACE MOUNT, 0805, 2 PIN	SURFACE MOUNT, 0805, 2 PIN	SURFACE MOUNT, 0805, 2 PIN	SURFACE MOUNT, 0805, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown
color	ULTRA RED	SUPER ORANGE	AMBER	SUPER BLUE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	40.0 mcd	60.0 mcd	15.0 mcd	40.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1 mm	1 mm	1 mm	1 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	660 nm	620 nm	610 nm	470 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1.4 mm	1.4 mm	1.4 mm	1.4 mm
surface mount	YES	YES	YES	YES
Terminal pitch	2.1 mm	2.1 mm	2.1 mm	2.1 mm
perspective	140 deg	140 deg	140 deg	140 deg
Maker	BRIGHT	-	BRIGHT	BRIGHT
