Bulletin PD-21053 rev. B 08/06
30WQ04FNPbF
SCHOTTKY RECTIFIER
3.5 Amp
I
F(AV)
= 3.5Amp
V
R
= 40V
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
I
FSM
@ tp = 5
μs
sine
V
F
T
J
@ 3 Apk, T
J
= 125°C
Description/ Features
Units
A
The 30WQ04FNPbF surface mount Schottky rectifier has
been designed for applications requiring low forward drop and
small foot prints on PC board. Typical applications are in disk
drives, switching power supplies, converters, free-wheeling
diodes, battery charging, and reverse battery protection.
Popular D-PAK outline
Small foot print, surface mountable
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
Lead-Free ("PbF" suffix)
Values
3.5
40
500
0.49
- 40 to 150
V
A
V
°C
Case Styles
Base
Cathode
4, 2
1
3
Anode
Anode
D-PAK (TO-252AA)
Document Number: 94198
www.vishay.com
1
30WQ04FNPbF
Bulletin PD-21053 rev. B 08/06
Voltage Ratings
Part number
V
R
Max. DC Reverse Voltage (V)
V
RWM
Max. Working Peak Reverse Voltage (V)
30WQ04FNPbF
40
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward Current
* See Fig. 5
I
FSM
E
AS
I
AR
Max. Peak One Cycle Non-Repetitive
Surge Current * See Fig. 7
Non-Repetitive Avalanche Energy
Repetitive Avalanche Current
500
80
8.0
1.0
A
mJ
A
5μs Sine or 3μs Rect. pulse
Following any rated
load condition and with
10ms Sine or 6ms Rect. pulse rated V
RRM
applied
Current decaying linearly to zero in 1
μsec
Frequency limited by T
J
max. V
A
= 1.5 x V
R
typical
30WQ...
3.5
Units
A
Conditions
50% duty cycle @ T
C
= 135°C, rectangular wave form
T
J
= 25 °C, I
AS
= 1 Amp, L = 16 mH
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
* See Fig. 1
(1)
30WQ...
0.53
0.67
0.49
0.62
Units
V
V
V
V
mA
mA
V
m
Ω
pF
nH
@ 3A
@ 6A
@ 3A
@ 6A
T
J
= 25 °C
T
J
= 125 °C
T
J
= T
J
max.
Conditions
T
J
= 25 °C
T
J
= 125 °C
V
R
= rated V
R
I
RM
Max. Reverse Leakage Current
* See Fig. 2
(1)
2
24
0.34
37.33
189
5.0
10000
V
F(TO)
Threshold Voltage
r
t
C
T
L
S
Forward Slope Resistance
Typical Junction Capacitance
Typical Series Inductance
V
R
= 5V
DC
(test signal range 100Khz to 1Mhz) 25 °C
Measured lead to lead 5mm from package body
dv/dt Max. Voltage Rate of Change
V/μs (Rated V
R
)
(1) Pulse Width < 300μs, Duty Cycle < 2%
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range (*)
Max. Storage Temperature Range
30WQ...
-40 to 150
-40 to 150
4.7
0.3 (0.01)
D - PAK
Units
°C
°C
°C/W DC operation
g (oz.)
Conditions
R
thJC
Max. Thermal Resistance Junction
to Case
wt
Approximate Weight
Case Style
Marking Device
(*) dPtot
dTj
<
1
Rth( j-a)
* See Fig. 4
Similar to TO-252AA
30WQ04FN
thermal runaway condition for a diode on its own heatsink
Document Number: 94198
www.vishay.com
2
30WQ04FNPbF
Bulletin PD-21053 rev. B 08/06

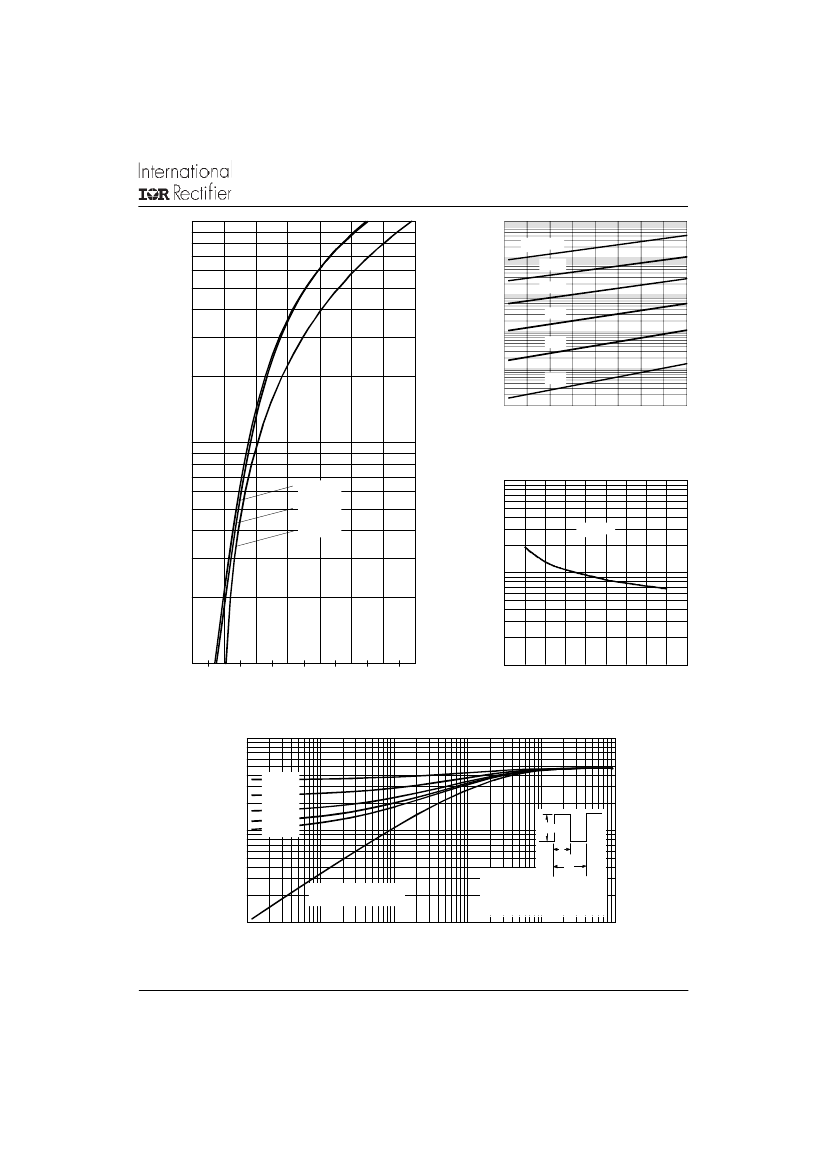

100
100
T
J
= 150°C
Reverse Current - I
R
(mA)
10
125°C
100°C
75°C
0.1
50°C
1
Instantaneous Forward Current - I
F
(A)
0.01
25°C
0.001
0
5
10
15
20
25
30
35
40
10
R
everse Voltage - V
R
(V)
Fig. 2 - Typical Values of Reverse Current
Vs. Reverse Voltage
T
J
= 150°C
T
J
= 125°C
T
J
= 25°C
1000
Junction Capacitance - C
T
(pF)
T
J
= 25°C
100
1
0
0.4
0.8
1.2
1.6
2
2.4
2.8
10
0
5
10
15 20
25 30 35 40 45
Forward Voltage Drop - V
FM
(V)
R
everse Voltage - V
R
(V)
Fig. 1 - Maximum Forward Voltage Drop Characteristics
10
T
hermal Impedance Z
thJC
(°C/ W)
Fig. 3 - Typical Junction Capacitance
Vs. Reverse Voltage
1
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
P
DM
Notes:
S
ingle Pulse
(T
hermal R
esistanc e)
0.1
0.00001
0.0001
0.001
0.01
t1
t2
1. Duty factor D = t 1/ t 2
2. Pea k T = P
DM
x Z
thJC
+ T
C
J
0.1
1
t 1 , Rectangular Pulse Duration (S onds)
ec
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics
Document Number: 94198
www.vishay.com
3
30WQ04FNPbF
Bulletin PD-21053 rev. B 08/06
155
Allowable Case T
emperature - (°C)
150
145
140
135
130
125
120
115
110
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5
Average Forward Current - I
F(AV)
(A)
see note (2)
3
Average Power Loss - (Watts)
2.5
2
1.5
1
0.5
0
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
R Limit
MS
DC
DC
S
quare wave (D = 0.50)
80% Rated V
R
applied
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5
Average Forward Current - I
F(AV)
(A)
Fig. 5 - Maximum Allowable Case Temperature
Vs. Average Forward Current
1000
Fig. 6 - Forward Power Loss Characteristics
Non-R
epetitive S
urge Current - I
FS
(A)
M
100
At Any R ted L
a
oad Cond ition
And With R
ated V
RRM
Applied
Following S
urge
10
10
100
1000
10000
S
quare Wave Pulse Duration - t p (microsec)
Fig. 7 - Maximum Non-Repetitive Surge Current
(2)
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward Power Loss = I
F(AV)
x V
FM
@ (I
F(AV)
/
D) (see Fig. 6);
Pd
REV
= Inverse Power Loss = V
R1
x I
R
(1 - D); I
R
@ V
R1
= 80% rated V
R
Document Number: 94198
www.vishay.com
4
30WQ04FNPbF
Bulletin PD-21053 rev. B 08/06

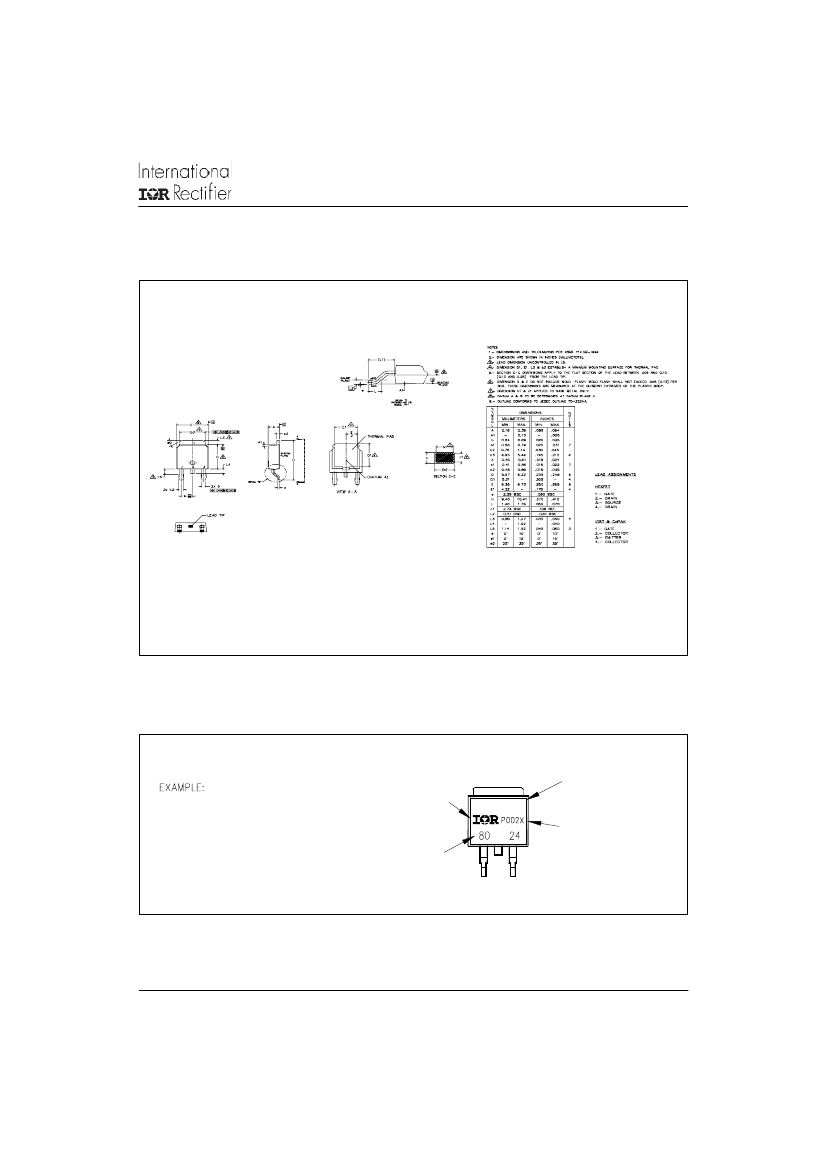

Outline Table
Modified JEDEC outline TO-252AA
Dimensions in millimeters and (inches)
Part Marking Information
THIS IS A 30WQ04FN
INTERNATIONAL
RECTIFIER
LOT CODE 8024
LOGO
ASSEMBLED ON WW 02, 2000
ASSEMBLY
LOT CODE
PART NUMBER
30WQ04FN
DATE CODE
P = LEAD-FREE
YEAR 0 = 2000
WEEK 02
X = SITE ID
Document Number: 94198
www.vishay.com
5
